KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

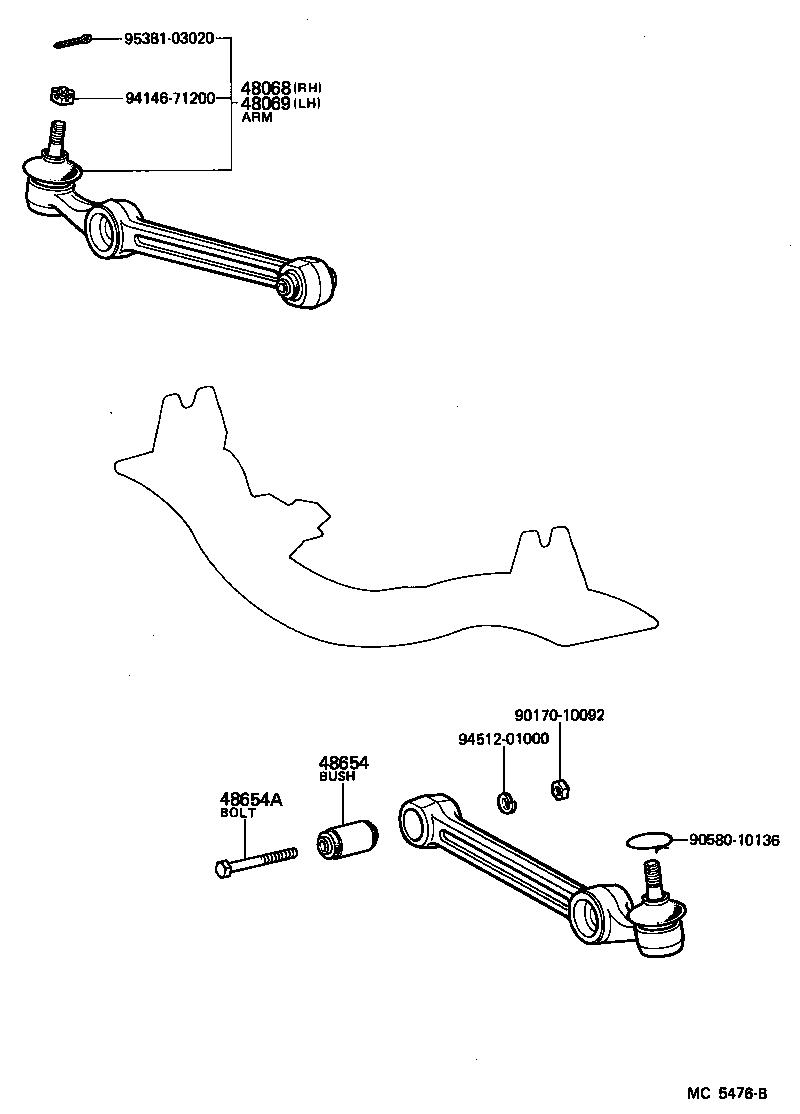

Click highlighted areas on diagram

diagram 48068 48069 48654 48654A 9017010092 9058010136 9414671200 9451201000 9538103020
Part # Description Qty Price
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19055

KP6#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48068-19055

KP6#

 1
48654 - BUSH, LOWER ARM
48654-10020

KP6#

 2
48654A - BOLT, HEXAGON(FOR LOWER ARM)
90101-10037

KP6#

 2
Common parts
90170-10092
90580-10136
94146-71200
94512-01000
95381-03020
