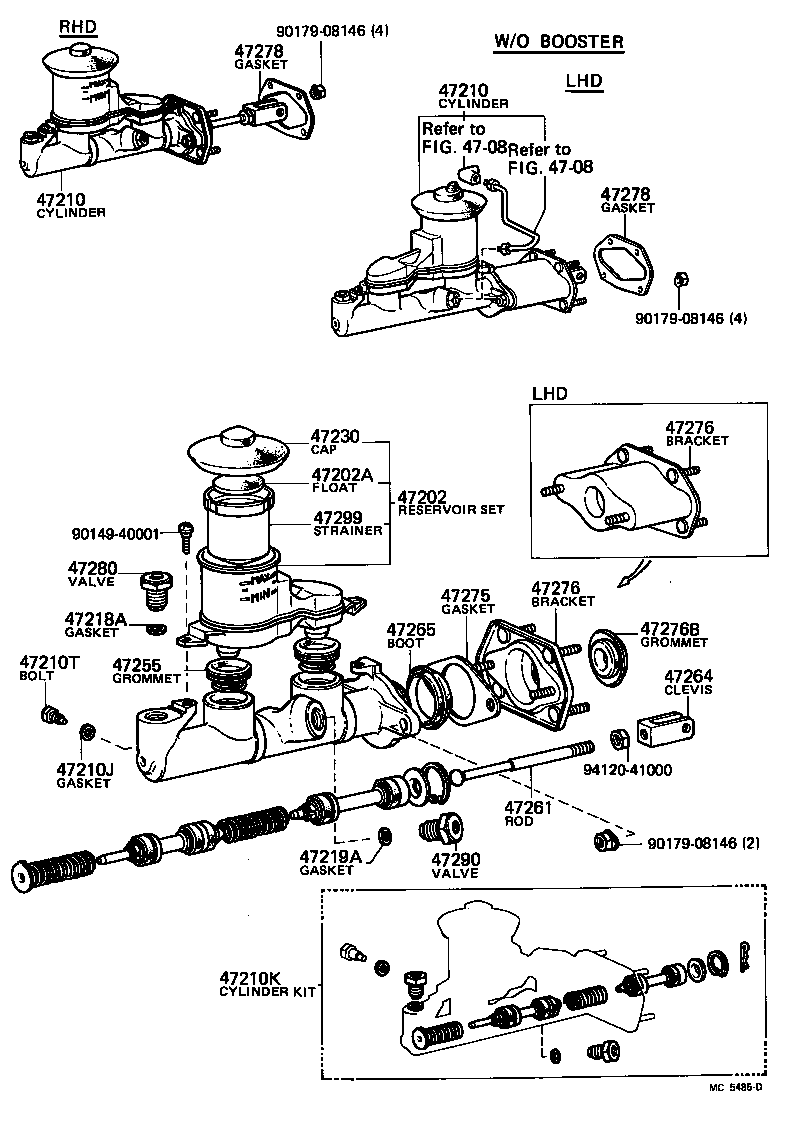

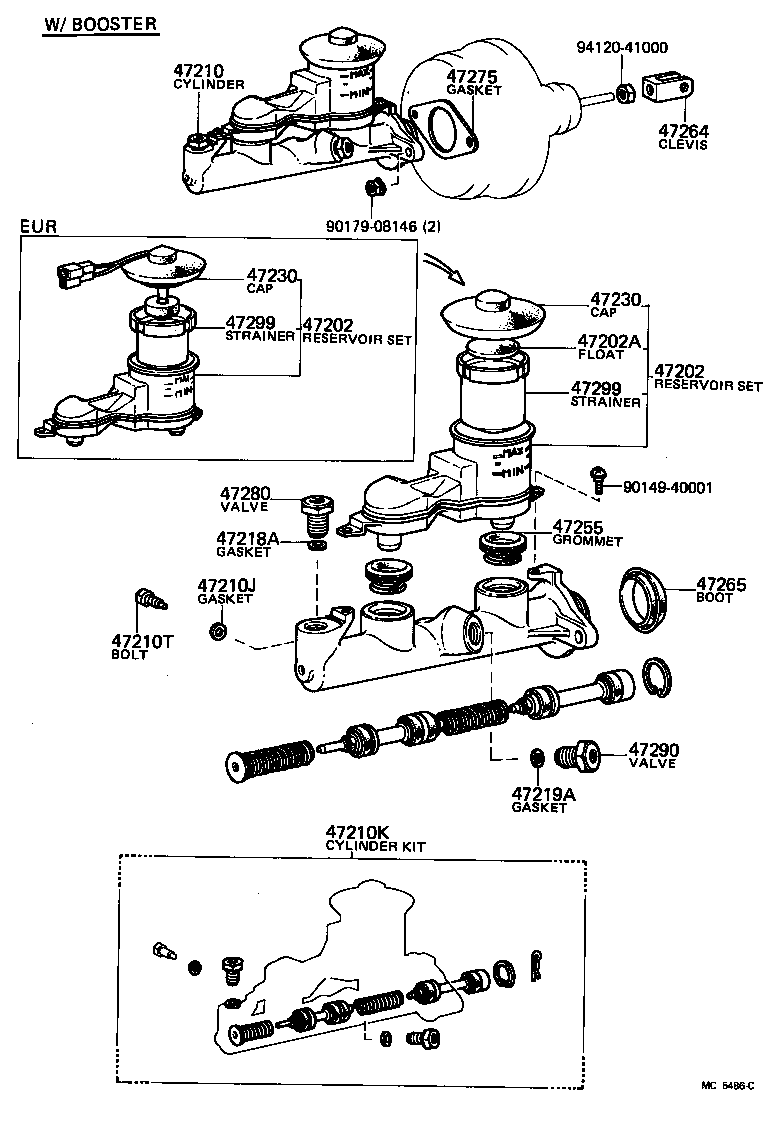

KP60R-PHMRS (1978)
Toyota Starlet
(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-10020 |
KP6#..GEN |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KP6#..GEN |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-10200 |
KP6#..RHD..GEN ID=17.46,W/O BOOSTER |
1 | ||
| 47201-10050 |
KP6#..GEN ID=19.05,W/BOOSTER |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-10200 |
KP6#..RHD..GEN ID=17.46,W/O BOOSTER |
1 | ||
| 47201-10050 |
KP6#..GEN ID=19.05,W/BOOSTER |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KP6# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-10070 |
KP6# W/BOOSTER |
1 | ||
| 04493-10060 |
KP6#..GEN W/O BOOSTER |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
KP6# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
KP6# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KP6# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
KP6#..GEN |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
KP6# |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-10040 |
KP6#..RHD..GEN W/O BOOSTER |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
KP6# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KP6# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KP6# |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-10010 |
KP6#..RHD..GEN W/O BOOSTER |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-10010 |
KP6#..RHD..GEN W/O BOOSTER |
1 | ||
| 47276B - GROMMET(FOR BRAKE MASTER CYLINDER BRACKET) | ||||
| 90480-22004 |
KP6#..GEN W/O BOOSTER |
1 | ||
| 47278 - GASKET, BRAKE MASTER CYLINDER BRACKET | ||||
| 47275-10010 |
KP6#..GEN W/O BOOSTER |
1 | ||
| 47278 - GASKET, BRAKE MASTER CYLINDER BRACKET | ||||
| 47275-10010 |
KP6#..GEN W/O BOOSTER |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KP6# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
KP6# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-10010 |
KP6# |
1 | ||
| Common parts | ||||
| 90149-40001 | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4708 | ||||
(7802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-10020 |
KP6#..GEN |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-10020 |
KP6#..GEN |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KP6#..GEN |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-10200 |
KP6#..RHD..GEN ID=17.46,W/O BOOSTER |
1 | ||
| 47201-10050 |
KP6#..GEN ID=19.05,W/BOOSTER |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KP6# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-10070 |
KP6# W/BOOSTER |
1 | ||
| 04493-10060 |
KP6#..GEN W/O BOOSTER |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
KP6# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
KP6# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KP6# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
KP6#..GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
KP6#..GEN |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
KP6# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
KP6# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KP6# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KP6# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
KP6# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
KP6# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-10010 |
KP6# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-10010 |
KP6# |
1 | ||
| Common parts | ||||
| 90149-40001 | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
