KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

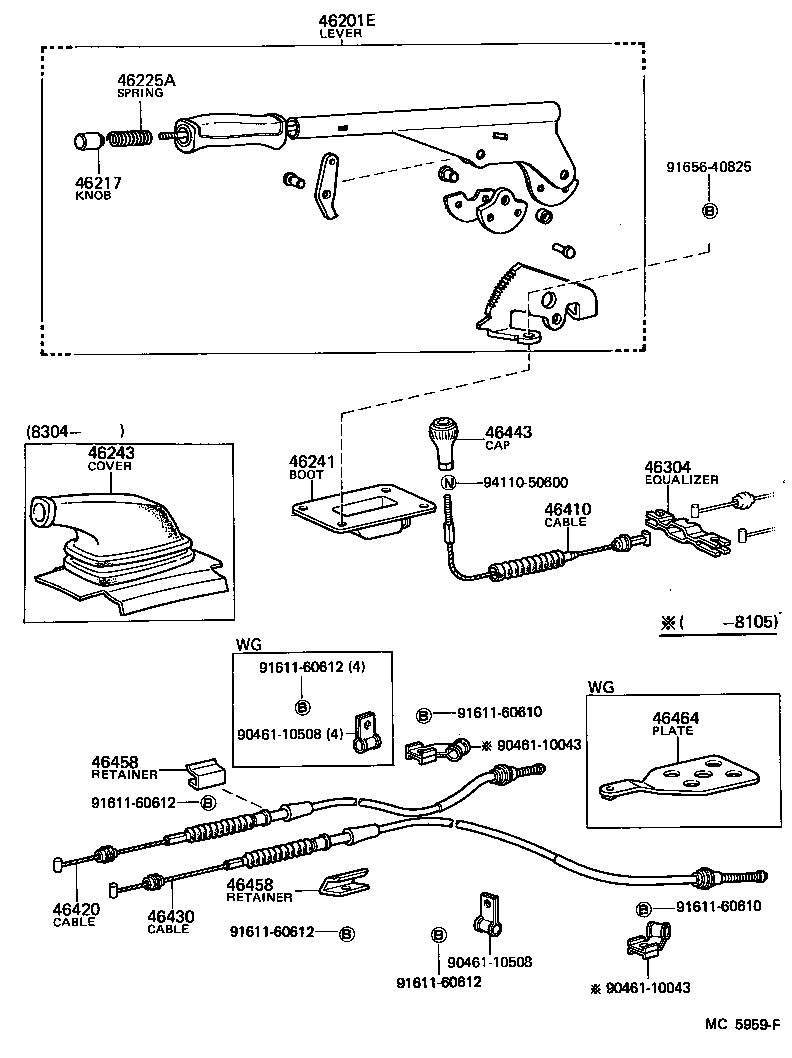

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46304 46410 46420 46430 46443 46458 46458 46464 9046110043 9046110043 9046110508 9046110508 9161160610 9161160610 9161160612 9161160612 9161160612 9161160612 9165640825 9411050600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-10030

KP6#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-10020

KP6#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

KP6#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-10020

KP6#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

KP6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-10030

KP6#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-10070

KP6#..SED

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-10060

KP6#..SED

 1
46443 - CAP, CABLE ADJUSTING
46443-12020

KP6#

 1
46458 - RETAINER, CABLE
46458-20020

KP6#

 2
46458 - RETAINER, CABLE
46458-20020

KP6#

 2
Common parts
90461-10043
90461-10508
91611-60610
91611-60612
91656-40825
94110-50600
