KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )5F

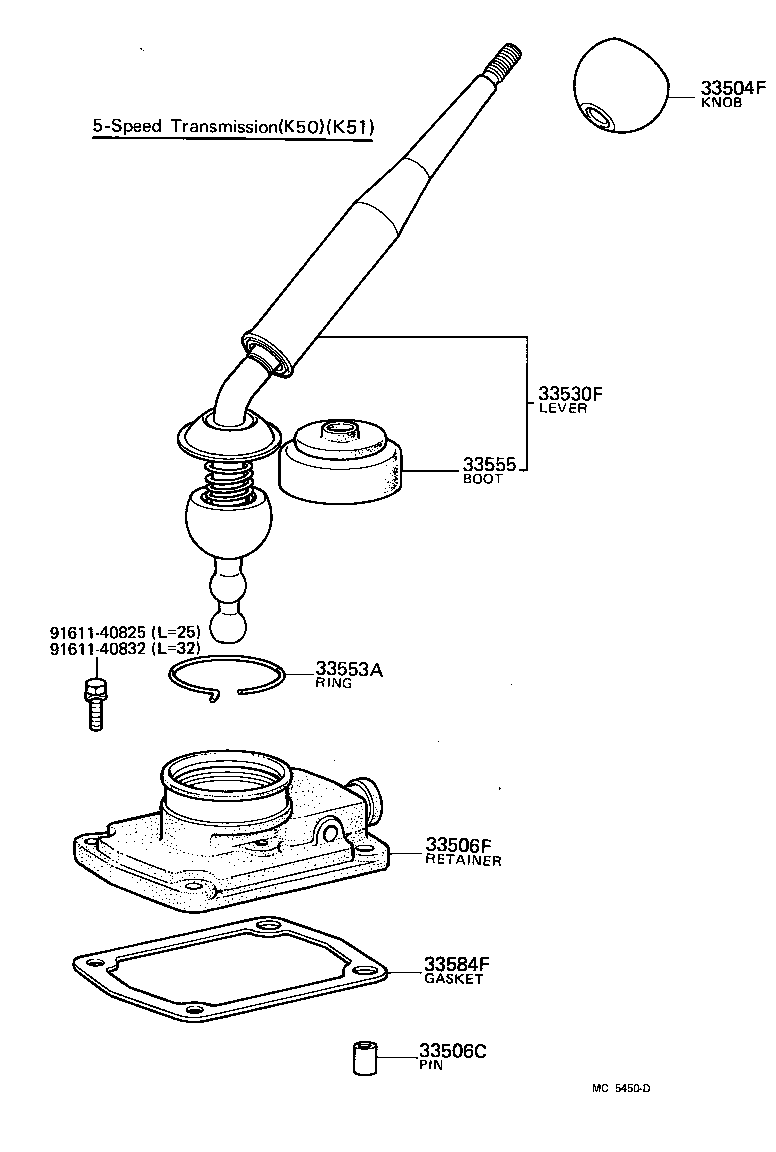

Click highlighted areas on diagram

diagram 33504F 33506C 33506F 33530F 33553A 33555 33584F 9161140825 9161140832
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-10020

KP6#..5F

BLACK

 1
33504-10040

KP6#..5F

URETHANE

 1
33506C - PIN, SHIFT LEVER RETAINER RING
90253-11001

KP6#..5F

 2
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-10011

KP6#..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-10080

KP6#..5F

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-49001

KP6#..5F

 1
33555 - BOOT, SHIFT LEVER
33555-10010

KP6#..5F

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-10010

KP6#..5F

 1
Common parts
91611-40825
91611-40832
