KP60R-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )

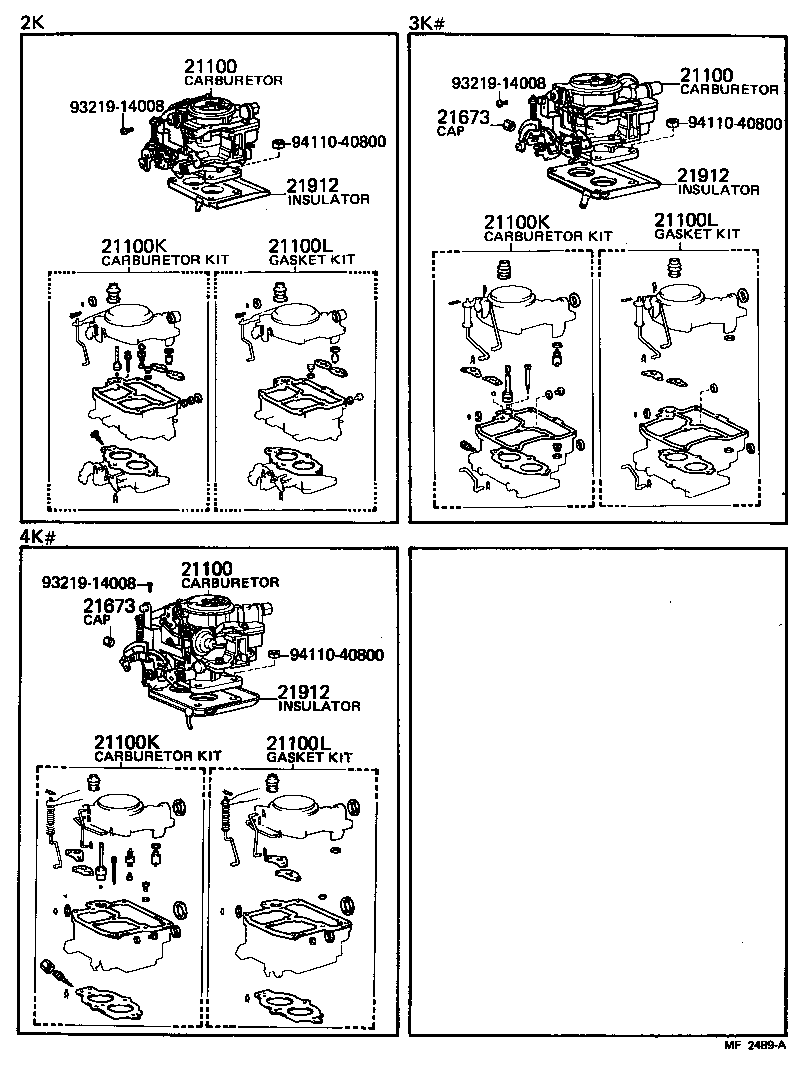

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-12070 |
2K..KP60..GEN |
1 | ||
| 21100-12071 |
2K..KP60..GEN |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-12070 |
2K..KP60..GEN |
1 | ||
| 21100-12071 |
2K..KP60..GEN |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-12070 |
2K..KP60..GEN |
1 | ||
| 21100-12071 |
2K..KP60..GEN |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-12030 |
2K..KP60 |
1 | ||
| 04211-12060 |
2K..KP60..GEN |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-12030 |
2K..KP60 |
1 | ||
| 04211-12060 |
2K..KP60..GEN |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-12030 |
2K..KP60 |
1 | ||
| 04211-12060 |
2K..KP60..GEN |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-24013 |
2K,3K#..KP6# |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-24013 |
2K,3K#..KP6# |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-24013 |
2K,3K#..KP6# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-24061 |
2K,3KH..KP6# |
1 | ||
| 21912-13051 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-13050 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-24072 |
2K,3KH..KP6# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-24061 |
2K,3KH..KP6# |
1 | ||
| 21912-13051 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-13050 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-24072 |
2K,3KH..KP6# |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-24061 |
2K,3KH..KP6# |
1 | ||
| 21912-13051 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-13050 |
2K,3KH,4K#..KP6# |
1 | ||
| 21912-24072 |
2K,3KH..KP6# |
1 | ||
| Common parts | ||||
| 93219-14008 | ||||
| 94110-40800 | ||||
