KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

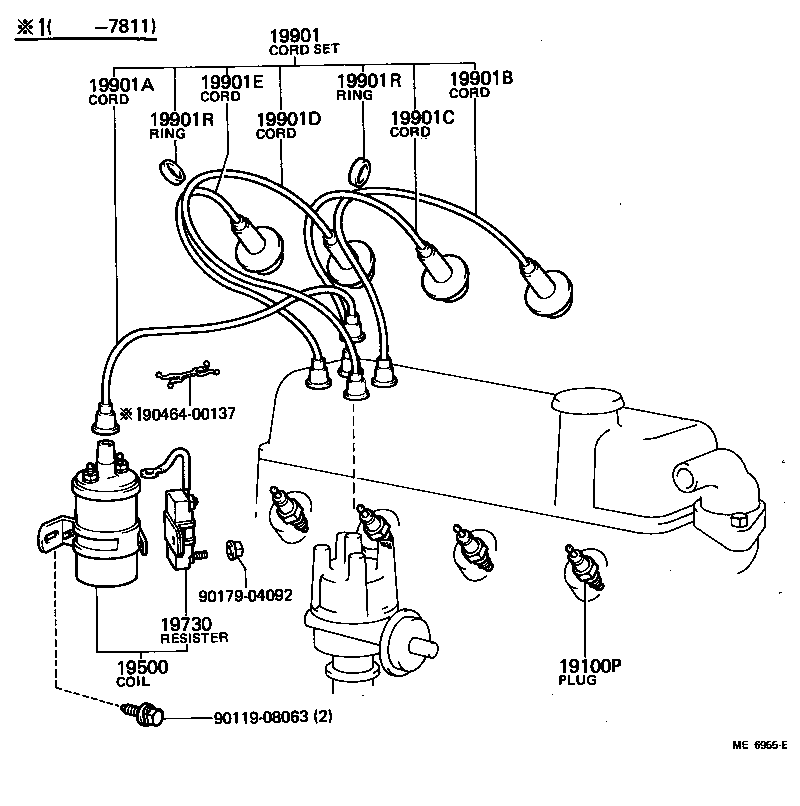

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9011908063 9017904092 9046400137
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01027

2K,3KH..KP6#..GEN

W16EP OR W16EX-U,W16EP

 4
19500 - COIL ASSY, IGNITION
90919-02102

2K,3K#..KP6#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21174

2K,3KH..KP60,62..GEN

 1
90919-21149

2K..KP60

 1
90919-21174

2K..KP60

 1
19901A - CORD, COIL RESISTIVE
99252-11030

2K,3KH..KP60,62..GEN

 1
90919-13043

2K..KP60

 1
99252-11030

2K,3K#..KP6#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

2K,3K#..KP6#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

2K,3K#..KP6#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

2K,3K#..KP6#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

2K,3K#..KP6#

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2K,3K#,4K#..KP6#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2K,3K#,4K#..KP6#

 2
Common parts
90119-08063
90179-04092
90464-00137
