KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

Click highlighted areas on diagram

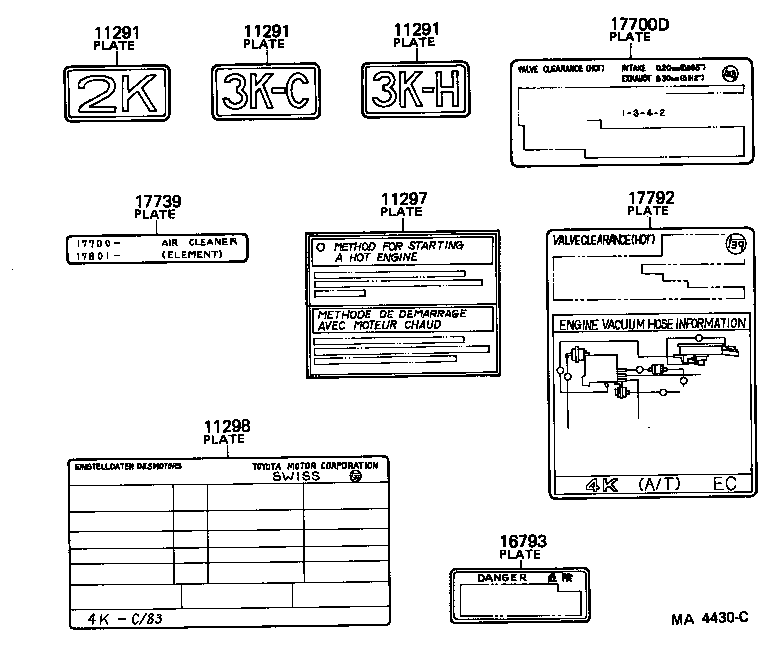

diagram 11291 11291 11291 11297 11298 16793 17700D 17739 17792
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-12010

2K..KP60

2K

 1
11291 - PLATE, ENGINE NAME
11291-12010

2K..KP60

2K

 1
11291 - PLATE, ENGINE NAME
11291-12010

2K..KP60

2K

 1
11297 - PLATE, ENGINE CAUTION, NO.3
11297-13020

2K,3K#..KP60,62

 1
17700D - PLATE, ENGINE CAUTION
11293-24111

2K,3K#..KP6#

 1
11293-24110

2K,3KC..KP6#

 1
11293-13081

2K,3K#..KP6#

 1
11293-13082

2K,3KH,4K..KP6#..MTM

 1
