KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)2K

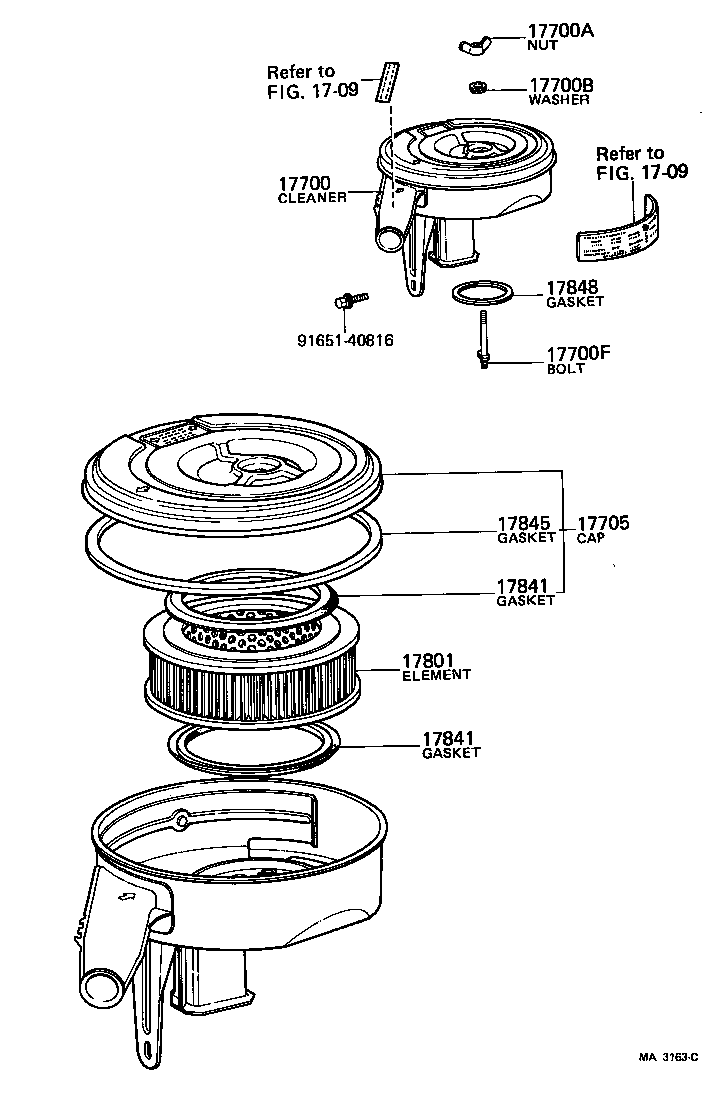

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700B 17700F 17705 17801 17841 17841 17845 17848 9165140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24332

2K,3KH..KP6#..SED..RHD..GEN

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP60,62..GEN

 1
17700-24323

2K,3KH..KP6#..GEN

 1
17700-24600

2K,3KH..KP60,62..SED..RHD..GEN

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3K#..KP60,62

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3K#..KP60,62

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3K#..KP60,62

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24163

2K,3KH..KP60,62..GEN

 1
17705-24160

2K,3KH..KP6#..GEN

 1
17705-24320

2K,3KH..KP60,62..SED..RHD..GEN

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24010

2K,3K#..KP60,62

 1
17801-24030

2K,3KH..KP60,62..GEN

DUST AREA

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

2K,3K#..KP60,62

 2
17841 - GASKET, FILTER ELEMENT
17841-24020

2K,3K#..KP60,62

 2
17845 - GASKET, AIR CLEANER CAP
17845-24010

2K,3K#..KP60,62

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2K,3K#..KP60,62

 1
Common parts
91651-40816
Linked diagrams
1709
