KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

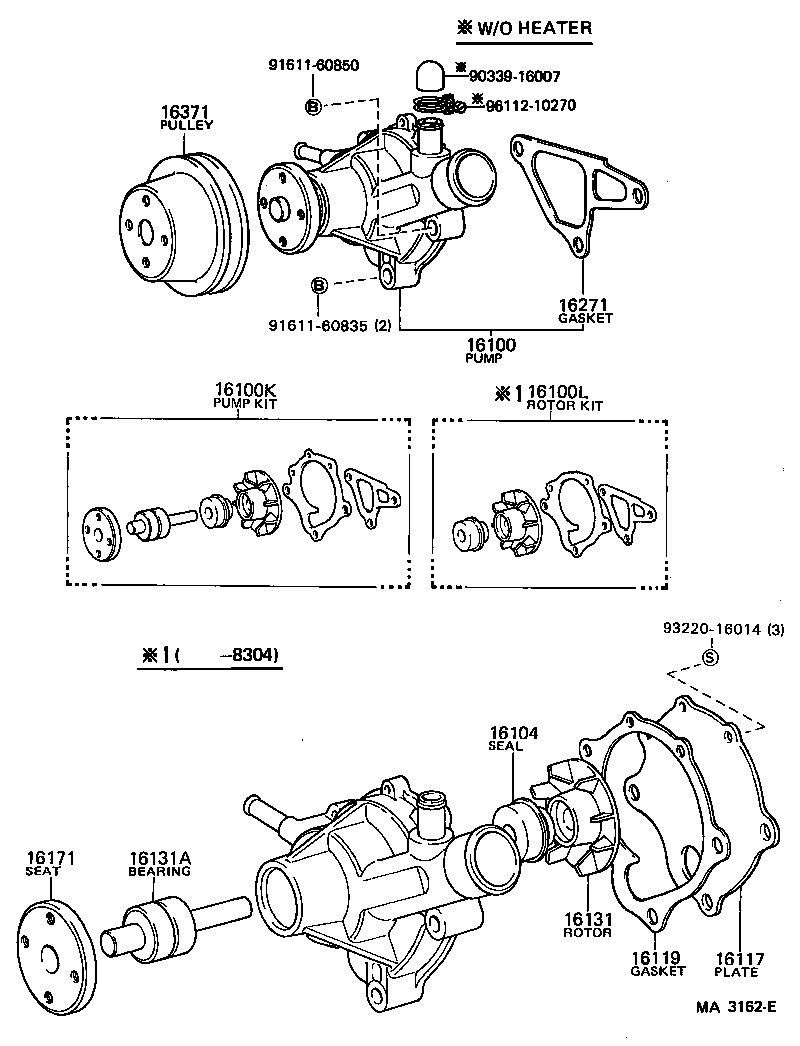

Click highlighted areas on diagram

diagram 16100 16100K 16100L 16104 16117 16119 16131 16131A 16171 16271 16371 9033916007 9161160835 9161160850 9322016014 9611210270
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19015

2K,3K#,4K#..KP6#

 1
16100K - PUMP KIT, WATER
04161-13010

2K,3K#..KP6#

 1
16100L - ROTOR KIT, WATER PUMP
04162-13011

2K,3K#..KP6#

 1
04162-13010

2K,3K#..KP6#

 1
16104 - SEAL SET, WATER PUMP
16104-41110

2K,3K#..KP6#

 1
16117 - PLATE, WATER PUMP
16117-13010

2K,3K#,4K#..KP6#

 1
16119 - GASKET, WATER PUMP BODY
16124-22010

2K,3K#..KP6#

 1
16131 - ROTOR, WATER PUMP
16131-13010

2K,3K#,4K#..KP6#

 1
16131A - BEARING, WATER PUMP
90369-30063

2K,3K#,4K#..KP6#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

2K,3K#,4K#..KP6#

 1
16271 - GASKET, WATER PUMP
16271-22010

2K,3K#..KP6#

 1
16271-13020

2K,3K#..KP6#

 1
16371 - PULLEY, FAN
16371-24050

2K,3K#,4K#..KP6#

 1
Common parts
90339-16007
91611-60835
91611-60850
93220-16014
96112-10270
