KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

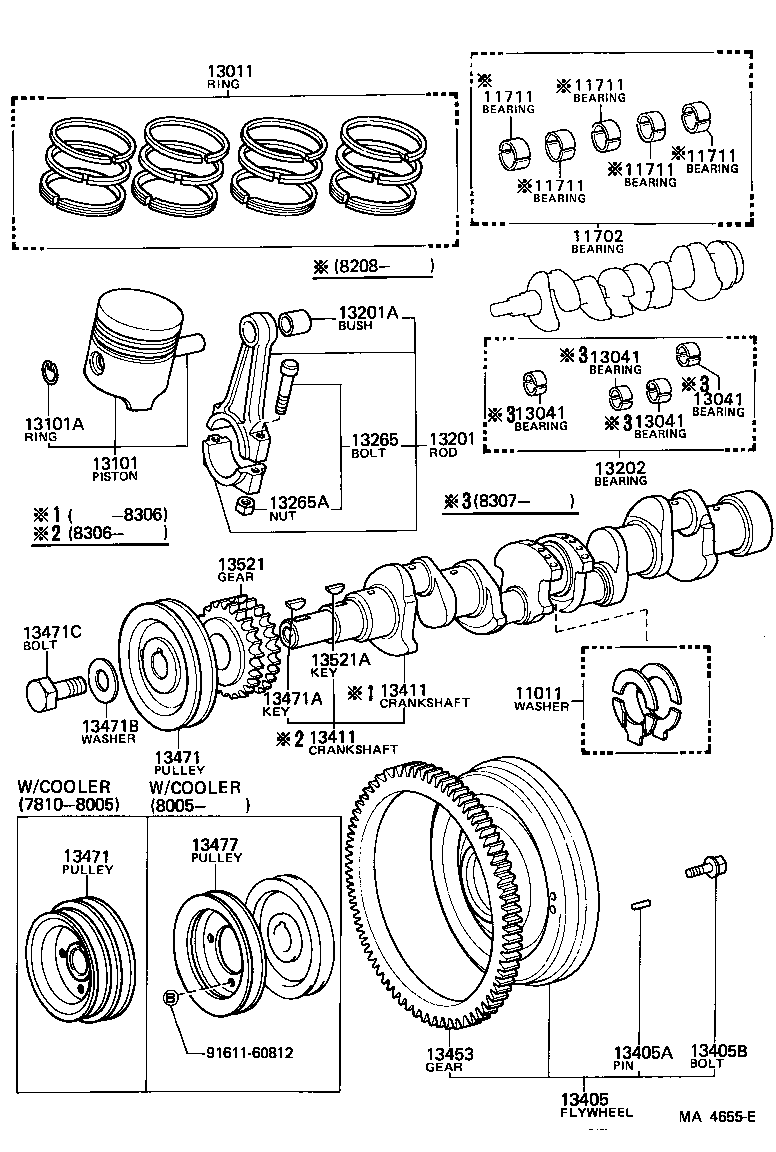

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411 13453 13471 13471 13471A 13471B 13471C 13477 13521 13521A 9161160812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-22010

2K,3K#..KP6#

O/S 0.125

 1
11013-22010

2K,3K#..KP6#

O/S 0.250

 1
11011-22010

2K,3K#..KP6#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11703-22020

2K,3K#,4K#..KP6#

U/S 0.05

 1
11704-22020

2K,3K#,4K#..KP6#

U/S 0.25,U/S 0.25

 1
11705-22020

2K,3K#,4K#..KP6#

U/S 0.50

 1
11702-22020

2K,3K#,4K#..KP6#

STD

 1
13011 - RING SET, PISTON
13013-12030

2K..KP60

O/S 0.50

 1
13011-12030

2K..KP60

STD

 1
13014-12030

2K..KP60

O/S 0.75

 1
13015-12030

2K..KP60

O/S 1.00

 1
13101 - PISTON SUB-ASSY, W/PIN
13104-12010

2K..KP60

O/S 0.75,O/S 0.75

 4
13103-12010

2K..KP60

O/S 0.50,O/S 0.50

 4
13105-12010

2K..KP60

O/S 1.00,O/S 1.00

 4
13101-12010

2K..KP60

STD,STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

2K,3K#,4K#..KP6#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-22011

2K,3K#..KP60,62

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73070

2K,3K#,4K#..KP6#

 4
13202 - BEARING SET, CONNECTING ROD
13205-13010

2K,3K#,4K#..KP6#

U/S 0.50,U/S 0.50

 1
13203-13010

2K,3K#,4K#..KP6#

U/S 0.05,U/S 0.05

 1
13206-13010

2K,3K#,4K#..KP6#

U/S 0.75,U/S 0.75

 1
13202-13010

2K,3K#,4K#..KP6#

STD,STD

 1
13204-13010

2K,3K#,4K#..KP6#

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29015

2K,3K#,4K#..KP6#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2K,3K#..KP6#

 8
13405 - FLYWHEEL SUB-ASSY
13405-19045

2K,3K#..KP6#

N=106

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

2K,3K#,4K#..KP6#..MTM

L=18,OD=8,L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01005

2K,3K#..KP6#

 6
13411 - CRANKSHAFT
13411-12011

2K..KP60

 1
13411 - CRANKSHAFT
13411-12011

2K..KP60

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

2K,3K#..KP6#

N=106

 1
13471 - PULLEY, CRANKSHAFT
13471-13020

2K..KP60

 1
13471-13020

2K,3K#..KP6#

 1
13471-13010

2K,3K#..KP6#

 1
13471 - PULLEY, CRANKSHAFT
13471-13020

2K..KP60

 1
13471-13020

2K,3K#..KP6#

 1
13471-13010

2K,3K#..KP6#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2K,3K#,4K#..KP6#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

2K,3K#..KP6#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

2K,3K#..KP6#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

2K,3K#..KP6#

N=18

 1
13521-22010

2K..KP60

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2K,3K#,4K#..KP6#

 1
Common parts
91611-60812
