KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

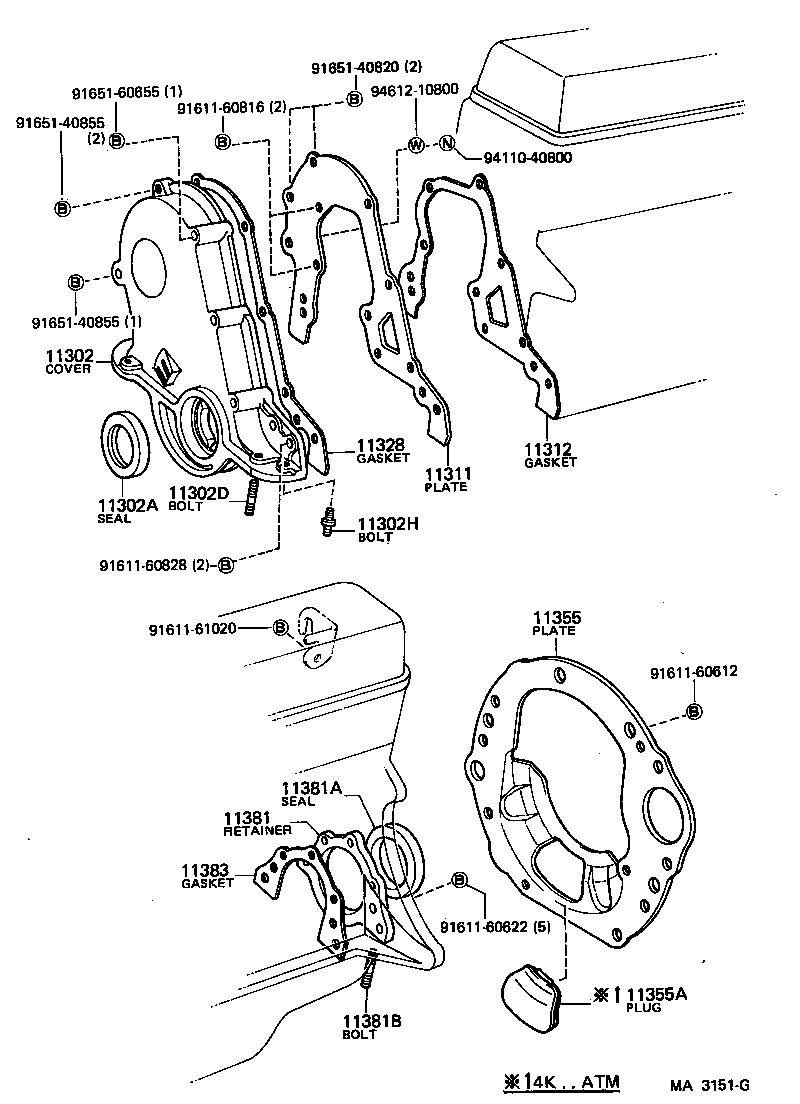

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9161160612 9161160622 9161160816 9161160828 9161161020 9165140820 9165140855 9165140855 9165160655 9411040800 9461210800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13030

2K,3K#..KP6#

 1
11321-13010

2K,3K#..KP6#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

2K,3K#,4K#..KP6#

HTC 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
92132-60614

2K..KP60

L=26,S=12&12

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

2K,3K#,4K#..KP6#

L=26.4,S=12&12

 2
11311 - PLATE, FRONT END
11311-13010

2K,3K#,4K#..KP6#

 1
11312 - GASKET, FRONT END PLATE
11312-13010

2K,3K#..KP6#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13010

2K,3K#..KP6#

 1
11355 - PLATE, REAR END
11355-13011

2K,3K#..KP6#

 1
11355-13010

2K,3K#..KP6#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13010

2K,3K#,4K#..KP6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70001

2K,3K#,4K#..KP6#

HTC 70 92 12

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

2K,3K#,4K#..KP6#

L=23,S=9&12

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

2K,3K#,4K#..KP6#

 1
Common parts
91611-60612
91611-60622
91611-60816
91611-60828
91611-61020
91651-40820
91651-40855
91651-60655
94110-40800
94612-10800
