KP60R-PHKDS (1982)
Toyota Starlet
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

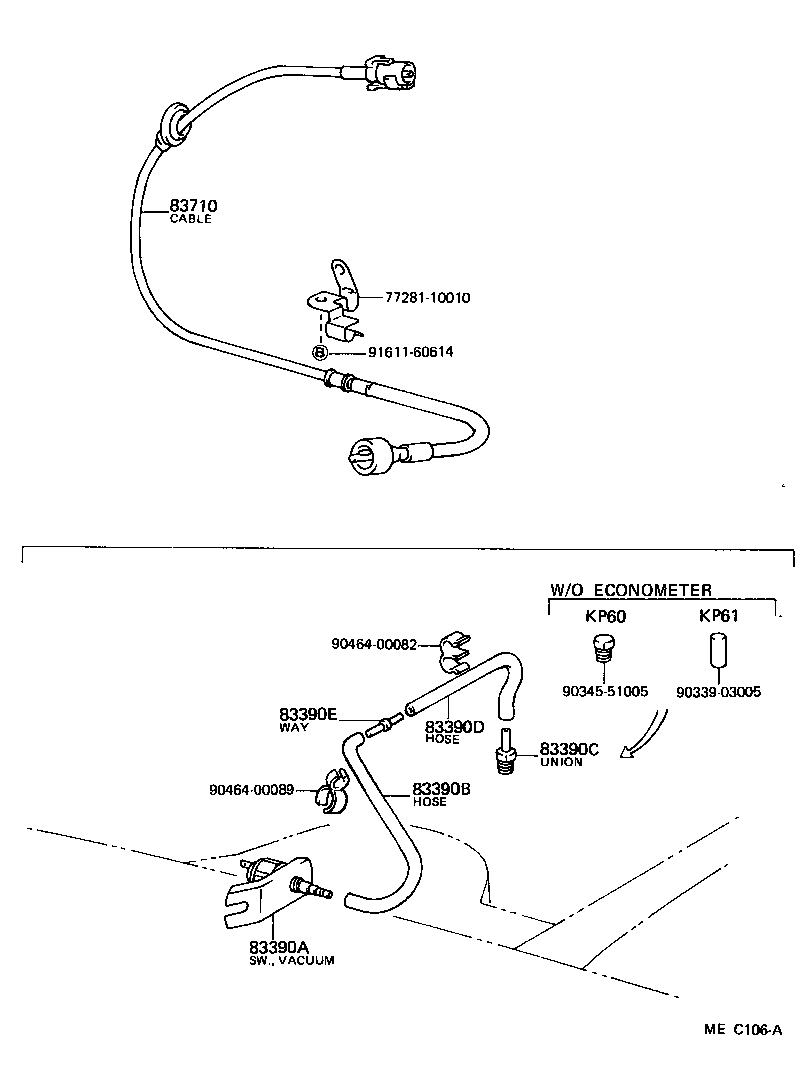

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19445 |
KP6#..RHD L=1500 |
1 | ||
| 83710-10190 |
KP6#..RHD L=1500 |
1 | ||
| 83710-10191 |
KP6#..RHD..MTM L=1475 |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 90339-03005 | ||||
| 90345-51005 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 91611-60614 | ||||

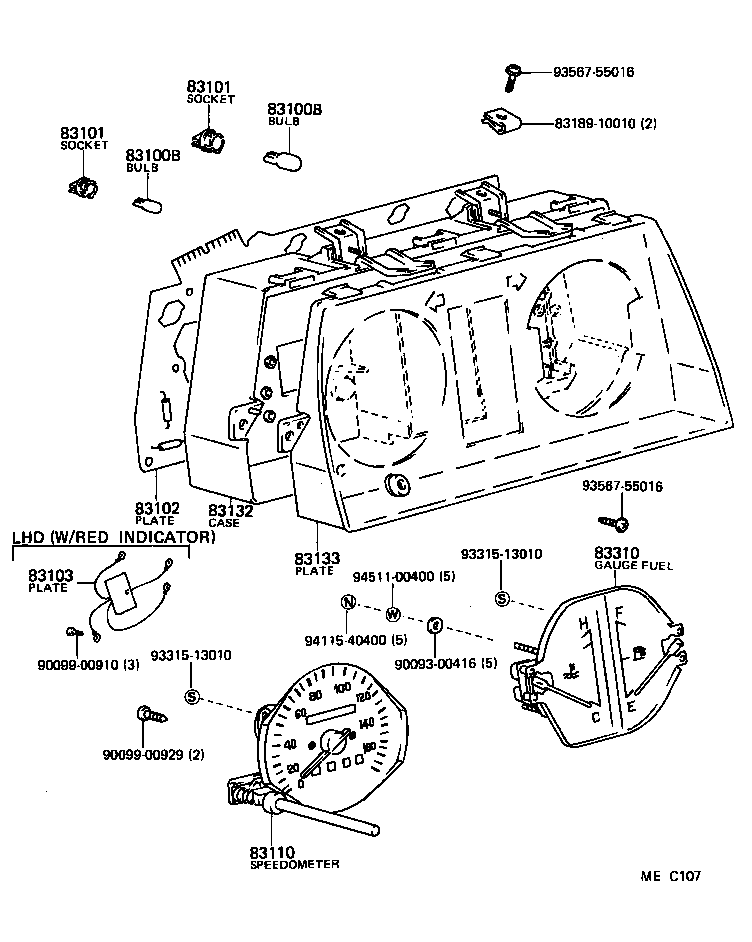

(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 90981-11018 |
KP6# 12V 1.2W W/O SOCKET |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 90981-11018 |
KP6# 12V 1.2W W/O SOCKET |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6# 12V 1.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6# 12V 1.4W |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10030 |
KP6#..RHD |
1 | ||
| 83247-10550 |
KP6#..RHD..DLX |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-10060 |
KP60..RHD MILE & KM, W/TRIP KNOB |
1 | ||
| 83241-10050 |
KP60..RHD MILE & KM |
1 | ||
| 83241-10030 |
KP6#..SED..RHD..GEN KM |
1 | ||
| 83241-10040 |
KP6#..SED..RHD..GEN KM,W/TRIP KNOB |
1 | ||
| 83110-10660 |
KP6#..RHD..DLX MILE & KM |
1 | ||
| 83110-10700 |
KP6#..RHD..DLX..GEN KM |
1 | ||
| 83110-10661 |
KP6#..RHD..DLX MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10020 |
KP6#..RHD |
1 | ||
| 83132-10330 |
KP6#..RHD..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10530 |
KP6#..RHD..DLX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..RHD |
1 | ||
| 83243-10150 |
KP6#..RHD |
1 | ||
| 83243-10090 |
KP6#..SED W/TACHOMETER |
1 | ||
| Common parts | ||||
| 83189-10010 | ||||
| 90093-00416 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-13010 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

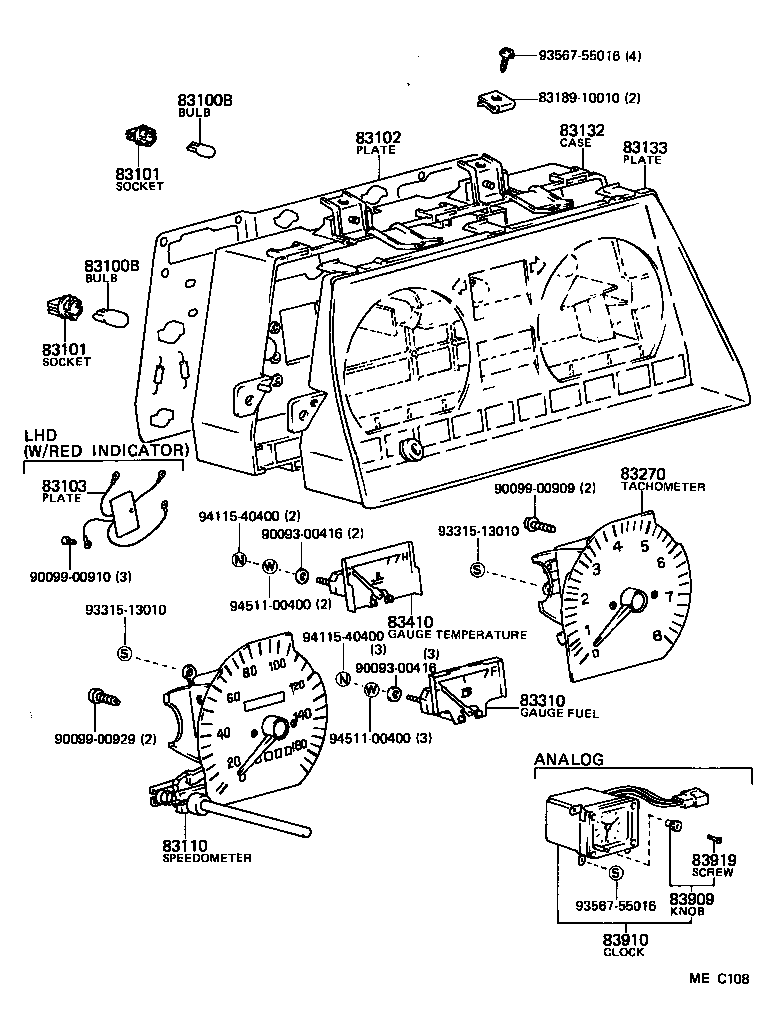

(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 90981-11018 |
KP6# 12V 1.2W W/O SOCKET |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 90981-11018 |
KP6# 12V 1.2W W/O SOCKET |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6# 12V 1.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6# 12V 1.4W |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10030 |
KP6#..RHD |
1 | ||
| 83247-10550 |
KP6#..RHD..DLX |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-10060 |
KP60..RHD MILE & KM, W/TRIP KNOB |
1 | ||
| 83241-10050 |
KP60..RHD MILE & KM |
1 | ||
| 83241-10030 |
KP6#..SED..RHD..GEN KM |
1 | ||
| 83241-10040 |
KP6#..SED..RHD..GEN KM,W/TRIP KNOB |
1 | ||
| 83110-10660 |
KP6#..RHD..DLX MILE & KM |
1 | ||
| 83110-10700 |
KP6#..RHD..DLX..GEN KM |
1 | ||
| 83110-10661 |
KP6#..RHD..DLX MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10020 |
KP6#..RHD |
1 | ||
| 83132-10330 |
KP6#..RHD..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10530 |
KP6#..RHD..DLX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10130 |
KP6#..SED..RHD W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10020 |
KP6#..RHD |
1 | ||
| 83243-10150 |
KP6#..RHD |
1 | ||
| 83243-10090 |
KP6#..SED W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10020 |
KP6#..RHD |
1 | ||
| 83244-10070 |
KP6#..SED W/TACHOMETER,EXCL/*ME |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KP6#..DLX,S |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10030 |
KP6#..RHD |
1 | ||
| 83910-10090 |
KP6#..RHD..DLX |
1 | ||
| Common parts | ||||
| 83189-10010 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-13010 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
