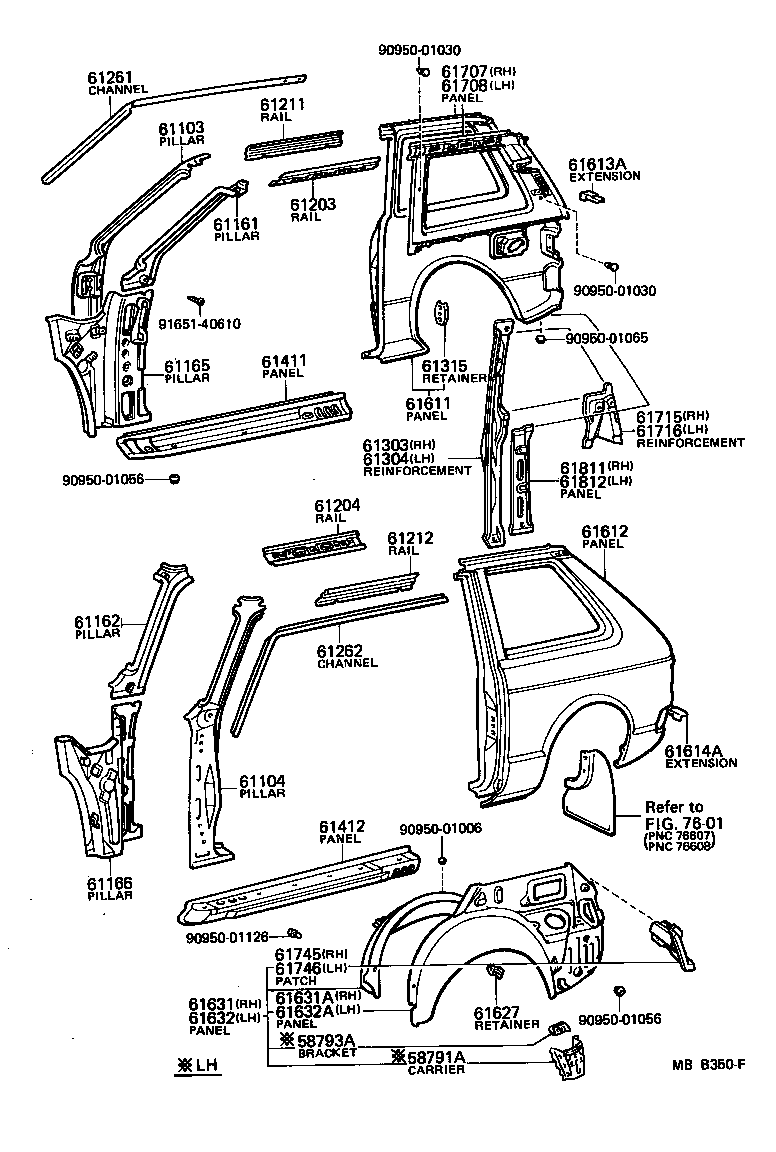

KP60R-PGKRSW (1978)
Toyota Starlet
(7802-8005)3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-10020 |
KP6#..SED |
1 | ||
| 58793A - BRACKET, JACK CARRIER | ||||
| 58793-10020 |
KP6#..SED |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10010 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-10040 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10021 |
KP6#..RHD |
1 | ||
| 61023-10020 |
KP6#..RHD |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10020 |
KP6#..SED..RHD |
1 | ||
| 61024-10020 |
KP6#..RHD |
1 | ||
| 61024-10021 |
KP6#..RHD |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-10040 |
KP6#..3D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61231-10040 |
KP6#..3D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-10040 |
KP6#..3D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61211-10040 |
KP6#..3D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-10040 |
KP6#..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-10040 |
KP6#..SED |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-10040 |
KP6#..3D..EUR |
1 | ||
| 61303-10042 |
KP60,61..3D..EUR |
1 | ||
| 61303-10041 |
KP6#..3D..EUR |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-10031 |
KP6#..3D..EUR |
1 | ||
| 61304-10030 |
KP6#..3D..EUR |
1 | ||
| 61304-10032 |
KP60,61..3D..EUR |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-10010 |
KP6#..3D..EUR |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-10010 |
KP6#..3D..EUR |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-10100 |
KP6#..3D |
1 | ||
| 61601-10550 |
KP6#..3D |
1 | ||
| 61601-10071 |
KP6#..3D |
1 | ||
| 61601-10072 |
KP6#..3D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-10550 |
KP6#..3D |
1 | ||
| 61602-10061 |
KP6#..3D |
1 | ||
| 61602-10062 |
KP6#..3D |
1 | ||
| 61602-10090 |
KP6#..3D |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61625-10010 |
KP60,62..SED;KP61..SED..EUG |
1 | ||
| 61625-10010 |
KP6#..SED |
1 | ||
| 61625-10010 |
KP60..SED |
1 | ||
| 61614A - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-10010 |
KP60..SED |
1 | ||
| 61626-10010 |
KP60,62..SED;KP61..SED..EUG |
1 | ||
| 61626-10010 |
KP6#..SED |
1 | ||
| 61627 - RETAINER, QUARTER TRIM, LOWER | ||||
| 61751-10060 |
KP6#..3D |
6 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-10900 |
KP6#..SED |
1 | ||
| 61607-10901 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61607-10903 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-10900 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61608-10908 |
KP6#..SED |
1 | ||
| 61608-10902 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61731-10901 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/HINGE,*PT |
1 | ||
| 61731-10902 |
KP6#..3D W/O HINGE,*PT |
1 | ||
| 61731-10900 |
KP6#..3D W/HINGE,W/O *PT |
1 | ||
| 61731-10903 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/O HINGE,W/*PT |
1 | ||
| 61731-10912 |
KP6#..3D..EUG W/*ELR,*PT,W/O HINGE |
1 | ||
| 61731-10915 |
KP6#..3D..EUG W/*ELR,HINGE & *PT |
1 | ||
| 61731-10913 |
KP6#..3D..EUG W/*ELR,HINGE,W/O *PT |
1 | ||
| 61731-10908 |
KP6#..3D..EUG W/*ELR,W/O HINGE,*PT |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61732-10902 |
KP6#..3D W/O HINGE,*PT |
1 | ||
| 61732-10900 |
KP6#..3D W/HINGE,W/O *PT |
1 | ||
| 61732-10901 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/HINGE,*PT |
1 | ||
| 61732-10903 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/O HINGE,W/*PT |
1 | ||
| 61732-10913 |
KP6#..3D..EUG W/*ELR,HINGE,W/O *PT |
1 | ||
| 61732-10908 |
KP6#..3D..EUG W/*ELR,W/O HINGE,*PT |
1 | ||
| 61732-10915 |
KP6#..3D..EUG W/*ELR,HINGE & *PT |
1 | ||
| 61732-10912 |
KP6#..3D..EUG W/*ELR,*PT,W/O HINGE |
1 | ||
| 61715 - REINFORCEMENT, ROOF SIDE, INNER REAR RH | ||||
| 61737-10020 |
KP6#..3D |
1 | ||
| 61716 - REINFORCEMENT, ROOF SIDE, INNER REAR LH | ||||
| 61738-10010 |
KP6#..3D |
1 | ||
| 61745 - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61745-10010 |
KP6#..SED |
1 | ||
| 61746 - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61746-10010 |
KP6#..SED |
1 | ||
| 61811 - PANEL, QUARTER INSIDE, FRONT RH | ||||
| 61613-10010 |
KP6#..3D |
1 | ||
| 61812 - PANEL, QUARTER INSIDE, FRONT LH | ||||
| 61614-10010 |
KP6#..3D |
1 | ||
| 64292 - CLAMP, JACK HANDLE | ||||
| 64292-10020 |
KP6#..SED |
3 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90189-06008 | ||||
| 90950-01006 | ||||
| 90950-01030 | ||||
| 90950-01056 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 7601 | ||||
(8005-8208)3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-10020 |
KP6#..SED |
1 | ||
| 58793A - BRACKET, JACK CARRIER | ||||
| 58793-10020 |
KP6#..SED |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10010 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-10040 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10021 |
KP6#..RHD |
1 | ||
| 61023-10020 |
KP6#..RHD |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10020 |
KP6#..SED..RHD |
1 | ||
| 61024-10020 |
KP6#..RHD |
1 | ||
| 61024-10021 |
KP6#..RHD |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-10040 |
KP6#..3D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61231-10040 |
KP6#..3D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-10040 |
KP6#..3D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61211-10040 |
KP6#..3D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-10040 |
KP6#..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-10040 |
KP6#..SED |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-10040 |
KP6#..3D..EUR |
1 | ||
| 61303-10042 |
KP60,61..3D..EUR |
1 | ||
| 61303-10041 |
KP6#..3D..EUR |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-10031 |
KP6#..3D..EUR |
1 | ||
| 61304-10030 |
KP6#..3D..EUR |
1 | ||
| 61304-10032 |
KP60,61..3D..EUR |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-10010 |
KP6#..3D..EUR |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-10010 |
KP6#..3D..EUR |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-10100 |
KP6#..3D |
1 | ||
| 61601-10550 |
KP6#..3D |
1 | ||
| 61601-10071 |
KP6#..3D |
1 | ||
| 61601-10072 |
KP6#..3D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-10550 |
KP6#..3D |
1 | ||
| 61602-10061 |
KP6#..3D |
1 | ||
| 61602-10062 |
KP6#..3D |
1 | ||
| 61602-10090 |
KP6#..3D |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61625-10010 |
KP60,62..SED;KP61..SED..EUG |
1 | ||
| 61625-10010 |
KP6#..SED |
1 | ||
| 61625-10010 |
KP60..SED |
1 | ||
| 61614A - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-10010 |
KP60..SED |
1 | ||
| 61626-10010 |
KP60,62..SED;KP61..SED..EUG |
1 | ||
| 61626-10010 |
KP6#..SED |
1 | ||
| 61627 - RETAINER, QUARTER TRIM, LOWER | ||||
| 61751-10060 |
KP6#..3D |
6 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-10900 |
KP6#..SED |
1 | ||
| 61607-10901 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61607-10903 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61617-10050 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61617-10021 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-10900 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61608-10908 |
KP6#..SED |
1 | ||
| 61608-10902 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61618-10020 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 61618-10050 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN *GIS |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61731-10901 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/HINGE,*PT |
1 | ||
| 61731-10902 |
KP6#..3D W/O HINGE,*PT |
1 | ||
| 61731-10900 |
KP6#..3D W/HINGE,W/O *PT |
1 | ||
| 61731-10903 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/O HINGE,W/*PT |
1 | ||
| 61731-10912 |
KP6#..3D..EUG W/*ELR,*PT,W/O HINGE |
1 | ||
| 61731-10915 |
KP6#..3D..EUG W/*ELR,HINGE & *PT |
1 | ||
| 61731-10913 |
KP6#..3D..EUG W/*ELR,HINGE,W/O *PT |
1 | ||
| 61731-10908 |
KP6#..3D..EUG W/*ELR,W/O HINGE,*PT |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61732-10902 |
KP6#..3D W/O HINGE,*PT |
1 | ||
| 61732-10900 |
KP6#..3D W/HINGE,W/O *PT |
1 | ||
| 61732-10901 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/HINGE,*PT |
1 | ||
| 61732-10903 |
KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG W/O HINGE,W/*PT |
1 | ||
| 61732-10913 |
KP6#..3D..EUG W/*ELR,HINGE,W/O *PT |
1 | ||
| 61732-10908 |
KP6#..3D..EUG W/*ELR,W/O HINGE,*PT |
1 | ||
| 61732-10915 |
KP6#..3D..EUG W/*ELR,HINGE & *PT |
1 | ||
| 61732-10912 |
KP6#..3D..EUG W/*ELR,*PT,W/O HINGE |
1 | ||
| 61715 - REINFORCEMENT, ROOF SIDE, INNER REAR RH | ||||
| 61737-10020 |
KP6#..3D |
1 | ||
| 61716 - REINFORCEMENT, ROOF SIDE, INNER REAR LH | ||||
| 61738-10010 |
KP6#..3D |
1 | ||
| 61745 - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61745-10010 |
KP6#..SED |
1 | ||
| 61746 - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61746-10010 |
KP6#..SED |
1 | ||
| 61811 - PANEL, QUARTER INSIDE, FRONT RH | ||||
| 61613-10010 |
KP6#..3D |
1 | ||
| 61812 - PANEL, QUARTER INSIDE, FRONT LH | ||||
| 61614-10010 |
KP6#..3D |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01030 | ||||
| 90950-01056 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 7601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
