KP60L-PHMRSW (1978)

Toyota Starlet

Production Feb 1978 - Aug 1981
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8108) ; (8108-8208)2K,3KH

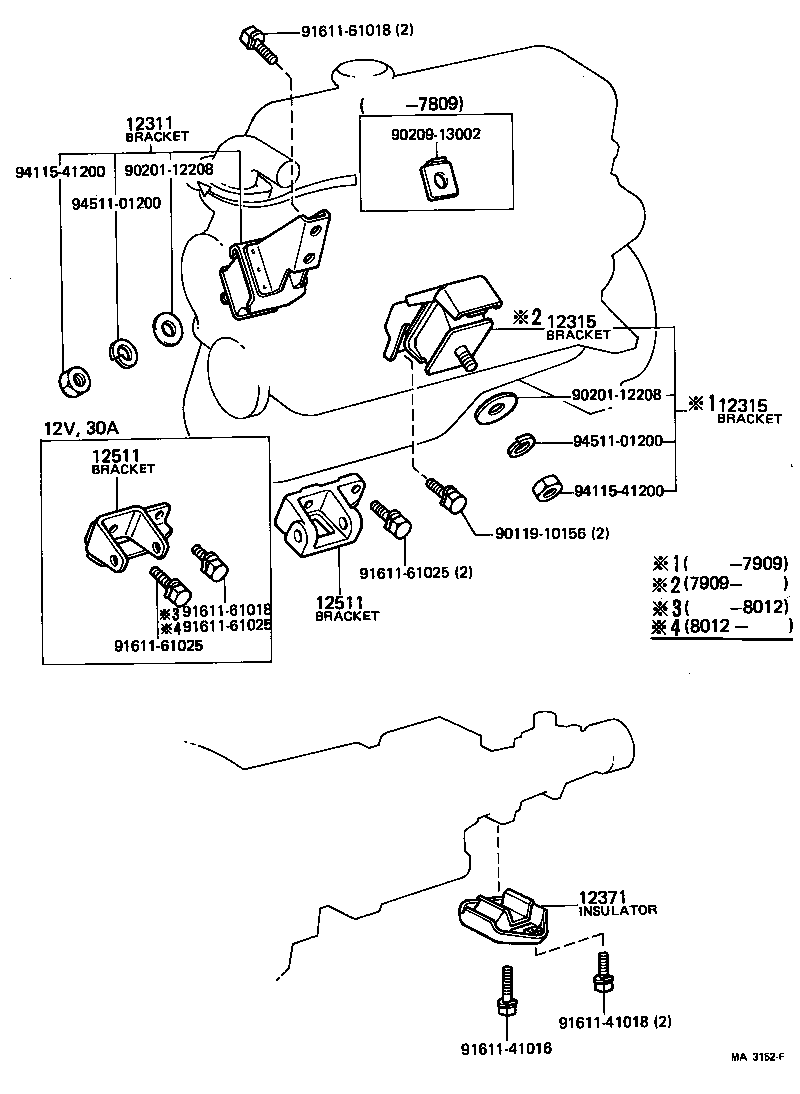

Click highlighted areas on diagram

diagram 12311 12315 12315 12371 12511 12511 9011910156 9020112208 9020112208 9020913002 9161141016 9161141018 9161161018 9161161018 9161161025 9161161025 9161161025 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-19015

2K,3K#..KP6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-19025

2K..KP60

 1
12302-13042

2K,3K#..KP6#

 1
12302-19026

2K,3K#..KP6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-19025

2K..KP60

 1
12302-13042

2K,3K#..KP6#

 1
12302-19026

2K,3K#..KP6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13010

2K,3K#..KP6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-22016

2K,3KH..KP6#

12V 30A ALTERNATOR

 1
12511-24011

2K,3K#..KP6#

12V 40A & 45A ALTERNATOR

 1
12511-22015

2K,3KH..KP6#

12V 30A ALTERNATOR

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-22016

2K,3KH..KP6#

12V 30A ALTERNATOR

 1
12511-24011

2K,3K#..KP6#

12V 40A & 45A ALTERNATOR

 1
12511-22015

2K,3KH..KP6#

12V 30A ALTERNATOR

 1
Common parts
90119-10156
90201-12208
90209-13002
91611-41016
91611-41018
91611-61018
91611-61025
94115-41200
94511-01200
