KP60L-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )LHD

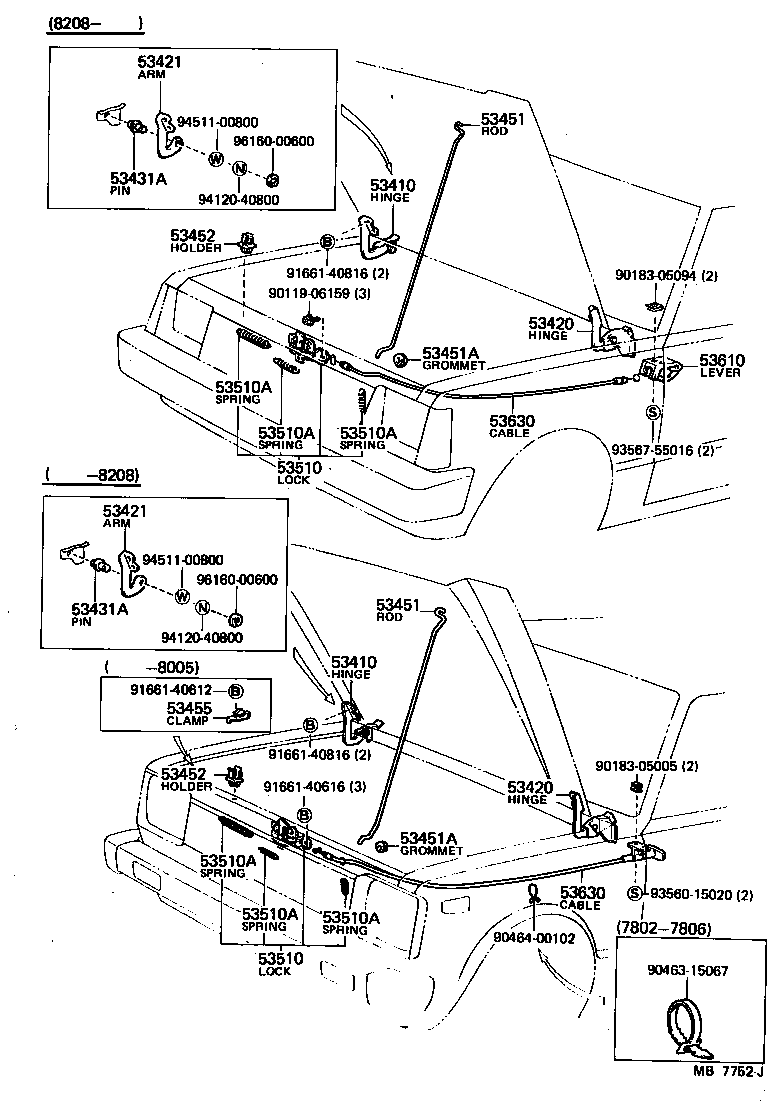

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-10040 |
KP6# |
1 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-10040 |
KP6# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-10020 |
KP6# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-10020 |
KP6# |
1 | ||
| 53421 - ARM, HOOD HINGE | ||||
| 53422-10010 |
KP6# LH |
1 | ||
| 53421-10010 |
KP6# RH |
1 | ||
| 53421 - ARM, HOOD HINGE | ||||
| 53422-10010 |
KP6# LH |
1 | ||
| 53421-10010 |
KP6# RH |
1 | ||
| 53431A - PIN, HOOD HINGE | ||||
| 53431-10050 |
KP6# |
2 | ||
| 53431A - PIN, HOOD HINGE | ||||
| 53431-10050 |
KP6# |
2 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-10021 |
KP6# |
1 | ||
| 53451-10020 |
KP6# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-10021 |
KP6# |
1 | ||
| 53451-10020 |
KP6# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-13008 |
KP6# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-13008 |
KP6# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-10010 |
KP6# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-10061 |
KP6#..LHD |
1 | ||
| 53510-10060 |
KP6#..LHD |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-10061 |
KP6#..LHD |
1 | ||
| 53510-10060 |
KP6#..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18016 |
KP6#..LHD L=60,OD=14 |
1 | ||
| 90506-09009 |
KP6#..LHD L=48,OD=8 |
1 | ||
| 90506-09007 |
KP6# L=35,OD=9 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-10110 |
KP6#..LHD |
1 | ||
| 53630-10111 |
KP6#..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-10110 |
KP6#..LHD |
1 | ||
| 53630-10111 |
KP6#..LHD |
1 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90463-15067 | ||||
| 90464-00102 | ||||
| 91661-40612 | ||||
| 91661-40616 | ||||
| 91661-40816 | ||||
| 93560-15020 | ||||
| 93567-55016 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 96160-00600 | ||||
