KP60L-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )LHD

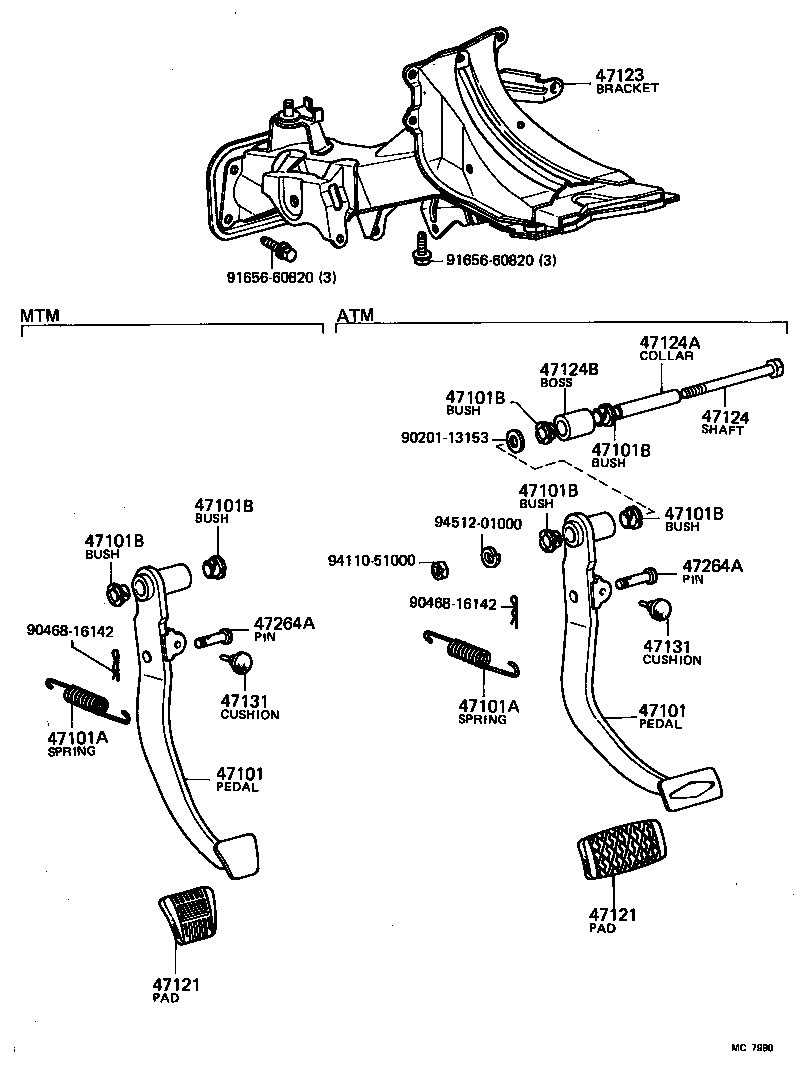

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101A 47101B 47101B 47101B 47101B 47101B 47101B 47121 47121 47123 47124 47124A 47124B 47131 47131 47264A 47264A 9020113153 9046816142 9046816142 9165660820 9165660820 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-10120

KP6#..LHD..MTM

 1
47101 - PEDAL SUB-ASSY, BRAKE
47101-10120

KP6#..LHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16333

KP6#

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16333

KP6#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KP6#..MTM

 2
47121 - PAD, BRAKE PEDAL
31321-14010

KP6#..MTM

 1
47121 - PAD, BRAKE PEDAL
31321-14010

KP6#..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-10090

KP6#..LHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

KP6#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

KP6#

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

KP6#

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

KP6#

 1
Common parts
90201-13153
90468-16142
91656-60820
94110-51000
94512-01000
