KP60L-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

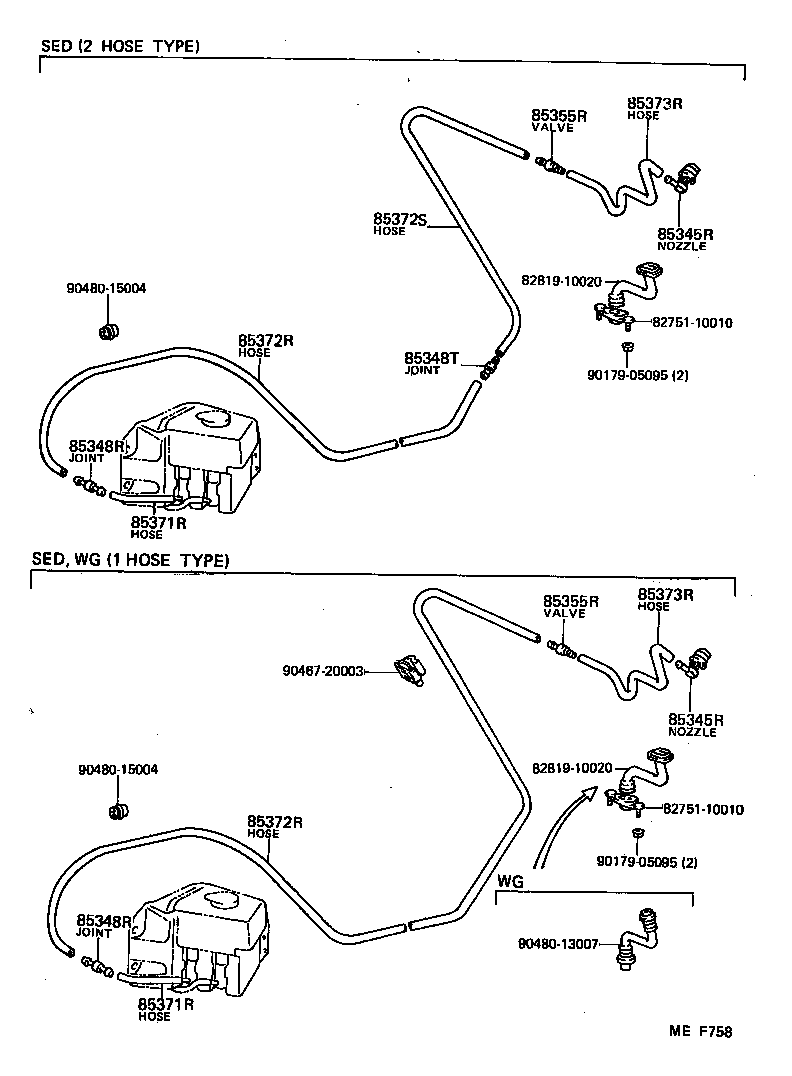

Click highlighted areas on diagram

diagram 8275110010 8275110010 8281910020 8281910020 85345R 85345R 85348R 85348R 85348T 85355R 85355R 85371R 85371R 85372R 85372R 85372S 85373R 85373R 9017905095 9017905095 9046720003 9048013007 9048015004 9048015004
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-10140

KP6#..SED

 1
85035-10150

KP6#..SED..GEN

 1
85345R - NOZZLE, REAR WASHER
85035-10140

KP6#..SED

 1
85035-10150

KP6#..SED..GEN

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-10060

KP6#..SED

 1
85355-87201

KP6#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-10060

KP6#..SED

 1
85355-87201

KP6#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-87201

KP6#..SED

2 HOSE TYPE

 1
85355R - VALVE, REAR WASHER HOSE
85031-14080

KP6#

 1
85355R - VALVE, REAR WASHER HOSE
85031-14080

KP6#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KP6#..SED

 1
90446-06013

KP6#

*H,L=150

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KP6#..SED

 1
90446-06013

KP6#

*H,L=150

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372-10120

KP6#..SED

1 HOSE TYPE,L=3250

 1
85372-10100

KP6#..SED

2 HOSE TYPE,L=2600

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372-10120

KP6#..SED

1 HOSE TYPE,L=3250

 1
85372-10100

KP6#..SED

2 HOSE TYPE,L=2600

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-06006

KP6#..SED

2 HOSE TYPE,*H,L=1500

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

KP6#..SED

*H,L=360

 1
90099-33299

KP6#..SED

*H,L=360

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

KP6#..SED

*H,L=360

 1
90099-33299

KP6#..SED

*H,L=360

 1
Common parts
82751-10010
82819-10020
90179-05095
90467-20003
90480-13007
90480-15004
