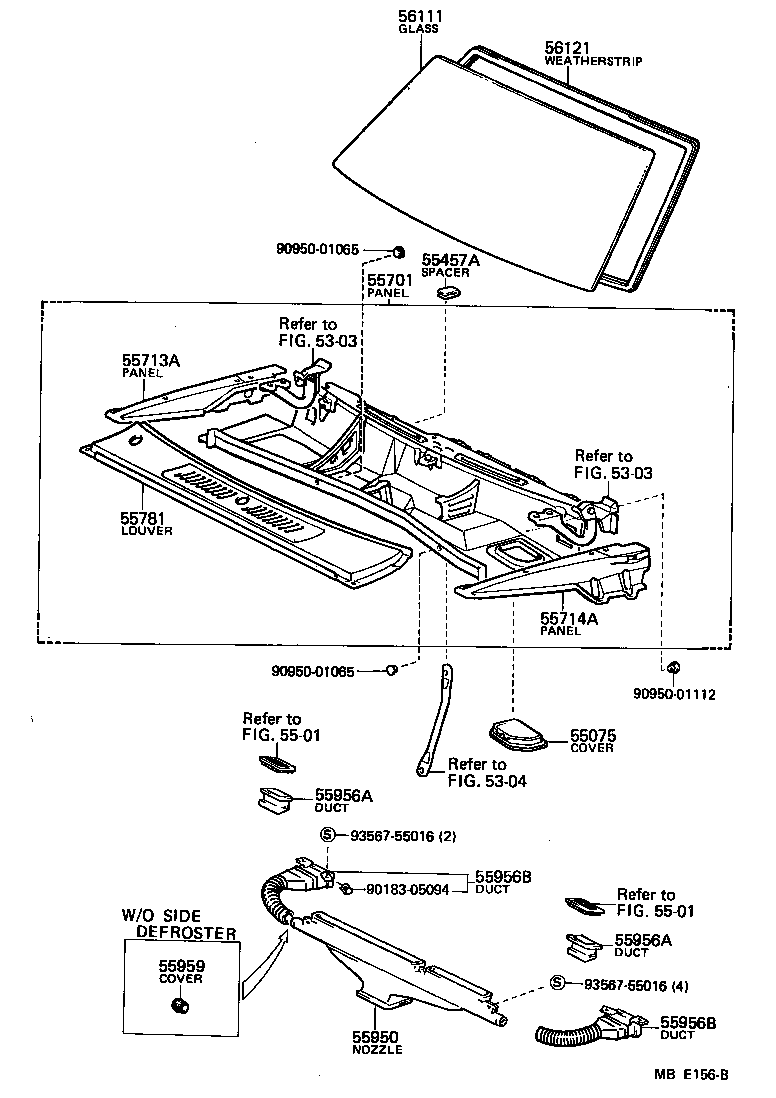

KP60L-PHMDS (1982)
Toyota Starlet
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55077-10030 |
KP60,62..LHD..GEN W/O HEATER |
1 | ||
| 55077-10031 |
KP6#..LHD..GEN W/O HEATER |
1 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-10030 |
KP6# |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-10020 |
KP6#..LHD |
1 | ||
| 55700-10022 |
KP6#..LHD..GEN W/O HEATER |
1 | ||
| 55700-10032 |
KP6#..LHD..GEN W/HEATER |
1 | ||
| 55700-10061 |
KP6#..LHD *GIS |
1 | ||
| 55700-10061 |
KP6#..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-10030 |
KP6# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-10020 |
KP6# |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55711-10060 |
KP6#..LHD |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-10020 |
KP6#..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55980-10010 |
KP6# LH |
1 | ||
| 55970-10010 |
KP6# RH |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55980-10010 |
KP6# LH |
1 | ||
| 55970-10010 |
KP6# RH |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55094-10010 |
KP6# LH |
1 | ||
| 55093-10010 |
KP6# RH |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55094-10010 |
KP6# LH |
1 | ||
| 55093-10010 |
KP6# RH |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
KP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-10170 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG *TL,T=5.7 |
1 | ||
| 56111-10160 |
KP6# *LAM,T=5.7 |
1 | ||
| 56111-10140 |
KP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG *TZT,T=5.0 |
1 | ||
| 56111-10150 |
KP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG *ZT,T=5.0 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-10110 |
KP6#..S,STD W/O MOULDING |
1 | ||
| 56121-10110 |
KP6# W/O MOULDING |
1 | ||
| 56121-10100 |
KP6#..DLX W/MOULDING |
1 | ||
| 56121-10100 |
KP6# W/MOULDING |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||
| 5304 | ||||
| 5501 | ||||
