KP60L-PHKRSW (1978)
Toyota Starlet
Production
Feb 1978
-
Sep 1984
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )4F

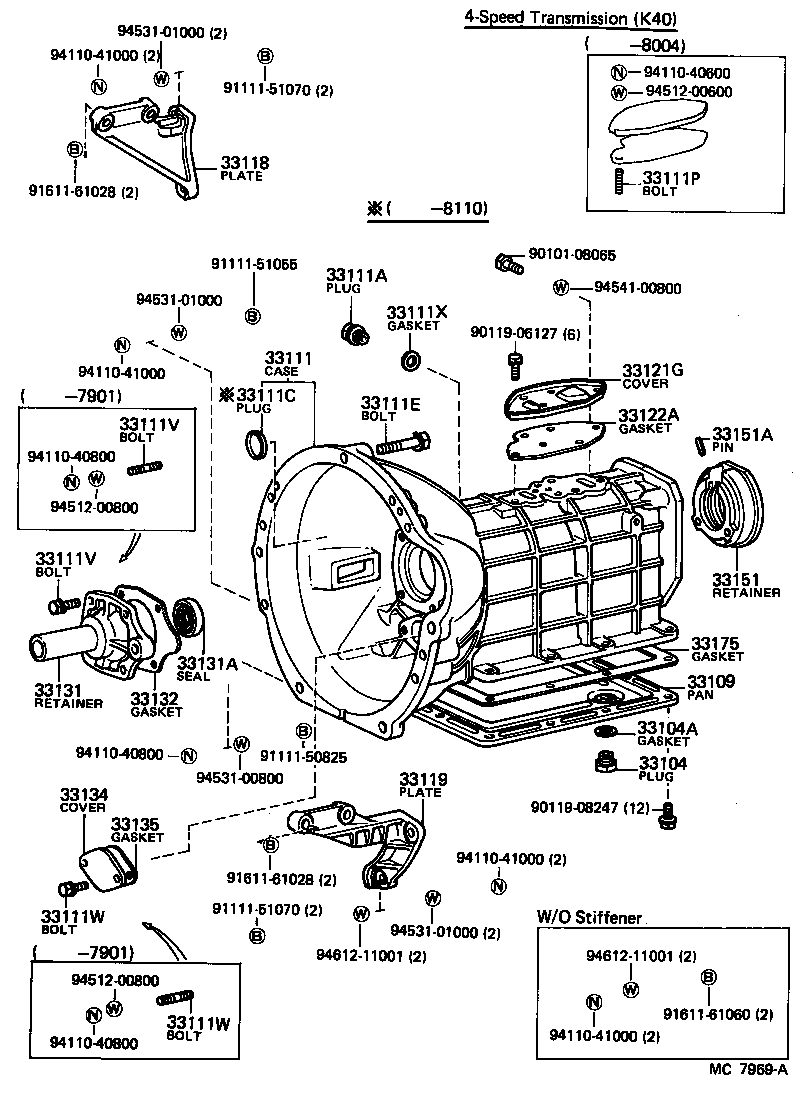

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
KP6#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
KP6#..MTM |
1 | ||
| 90430-18007 |
KP6#..MTM |
1 | ||
| 90430-18008 |
KP6#..MTM |
1 | ||
| 33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM) | ||||
| 33109-12011 |
KP6#..MTM |
1 | ||
| 33109-12012 |
KP6#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-12110 |
KP6#..4F |
1 | ||
| 33101-12040 |
KP6#..4F |
1 | ||
| 33101-12080 |
KP6#..4F |
1 | ||
| 33101-12111 |
KP6#..4F |
1 | ||
| 33101-12112 |
KP6#..4F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
KP6# |
1 | ||
| 90341-18006 |
KP6#..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11400 |
KP6#..4F |
1 | ||
| 33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING) | ||||
| 90119-12004 |
KP6#..MTM |
4 | ||
| 33111P - BOLT, STUD(FOR TRANSMISSION CASE COVER SETTING) | ||||
| 90116-06200 |
KP6#..4F |
4 | ||
| 90116-06200 |
KP6#..4F |
6 | ||
| 33111V - BOLT(FOR FRONT BEARING RETAINER SETTING) | ||||
| 90119-08111 |
KP6#..4F |
4 | ||
| 90116-08009 |
KP6#..4F |
4 | ||
| 90119-08220 |
KP6#..4F |
4 | ||
| 90119-08235 |
KP6#..4F |
4 | ||
| 33111V - BOLT(FOR FRONT BEARING RETAINER SETTING) | ||||
| 90119-08111 |
KP6#..4F |
4 | ||
| 90116-08009 |
KP6#..4F |
4 | ||
| 90119-08220 |
KP6#..4F |
4 | ||
| 90119-08235 |
KP6#..4F |
4 | ||
| 33111W - BOLT(FOR COUNTERSHAFT COVER SETTING) | ||||
| 90119-08111 |
KP6#..4F |
2 | ||
| 90116-08057 |
KP6#..4F |
2 | ||
| 90119-08235 |
KP6#..4F |
2 | ||
| 90119-08220 |
KP6#..4F |
2 | ||
| 33111W - BOLT(FOR COUNTERSHAFT COVER SETTING) | ||||
| 90119-08111 |
KP6#..4F |
2 | ||
| 90116-08057 |
KP6#..4F |
2 | ||
| 90119-08235 |
KP6#..4F |
2 | ||
| 90119-08220 |
KP6#..4F |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
KP6#..MTM |
1 | ||
| 12157-10010 |
KP6#..MTM |
1 | ||
| 90430-18008 |
KP6#..MTM |
1 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-12010 |
KP6#..4F |
1 | ||
| 33121-12020 |
KP6#..4F |
1 | ||
| 33122A - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-12010 |
KP6#..4F |
1 | ||
| 33122-12020 |
KP6#..4F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-12031 |
KP6#..4F |
1 | ||
| 33131-12031 |
KP6#..4F |
1 | ||
| 33131-12040 |
KP6#..4F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-25003 |
KP6#..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-12030 |
KP6#..4F T=0.5 |
1 | ||
| 33133-12030 |
KP6#..4F T=0.3 |
1 | ||
| 33134 - COVER, TRANSMISSION COUNTERSHAFT | ||||
| 33134-12010 |
KP6#..4F |
1 | ||
| 33135 - GASKET, COUNTERSHAFT COVER(MTM) | ||||
| 33135-12010 |
KP6#..4F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-12010 |
KP6#..4F |
1 | ||
| 33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI | ||||
| 90254-05005 |
KP6#..4F |
1 | ||
| 33175 - GASKET, MANUAL TRANSMISSION OIL PAN | ||||
| 33175-12010 |
KP6#..MTM |
1 | ||
| Common parts | ||||
| 90101-08065 | ||||
| 90119-06127 | ||||
| 90119-08247 | ||||
| 91111-50825 | ||||
| 91111-51055 | ||||
| 91111-51070 | ||||
| 91611-61028 | ||||
| 91611-61060 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 94541-00800 | ||||
| 94612-11001 | ||||
