EP81R-AHMNEC (1992)
Toyota Starlet

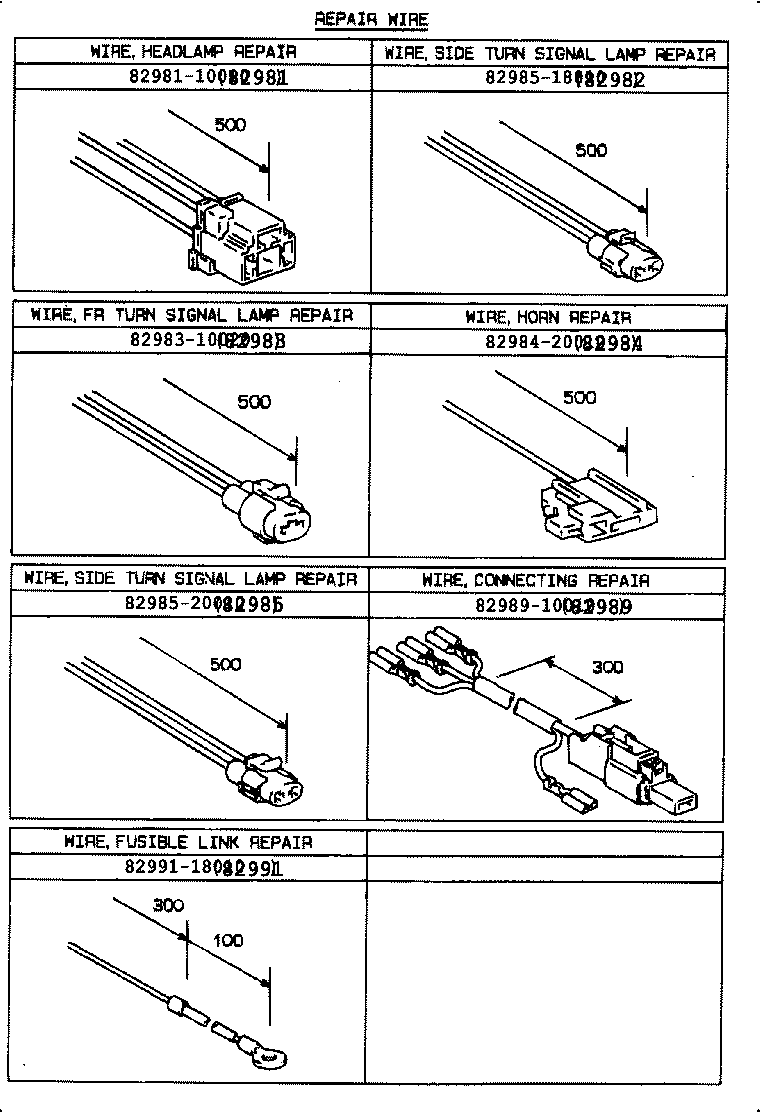

ILLUST NO. 5 OF 5(8912-9601)
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-10010 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-18010 | ||||
| 82985-20010 | ||||
| 82989-10010 | ||||
| 82991-18010 | ||||

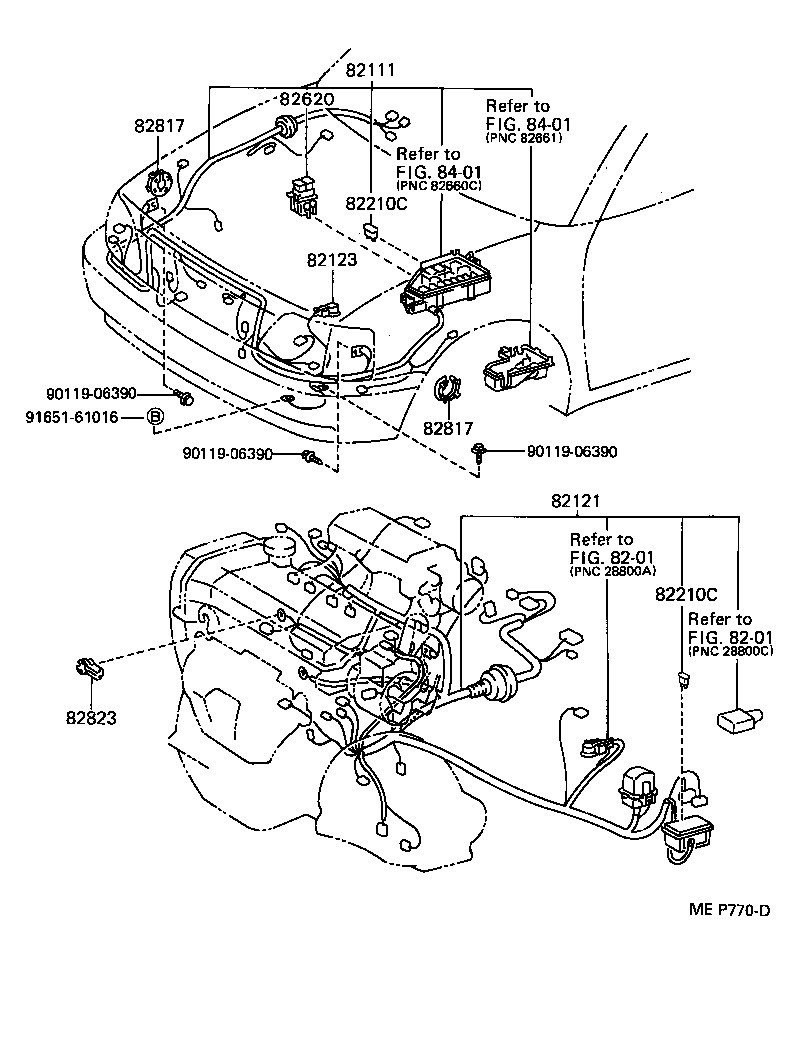

ILLUST NO. 1 OF 5(8912-9601)EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-10340 |
EP81..EFI NORWAY SPEC & W(*66) |
1 | ||
| 82111-10300 |
EP81..EFI W(*66) |
1 | ||
| 82111-10290 |
EP81..EFI |
1 | ||
| 82111-10220 |
EP8#..RHD UNITED KINGDOM SPEC |
1 | ||
| 82111-10210 |
EP8#..RHD |
1 | ||
| 82111-10430 |
EP81..(3FC,5F)..EFI *FRG & W(*66) |
1 | ||
| 82111-10330 |
EP81..EFI NORWAY SPEC |
1 | ||
| 82111-10650 |
EP81..RHD |
1 | ||
| 82111-10420 |
EP81..(3FC,5F)..EFI *FRG |
1 | ||
| 82111-10661 |
EP81..RHD UNITED KINGDOM SPEC |
1 | ||
| 82111-10660 |
EP81..RHD UNITED KINGDOM SPEC |
1 | ||
| 82111-10651 |
EP81..RHD |
1 | ||
| 82111-10662 |
EP81..RHD UNITED KINGDOM SPEC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1C050 |
EP81..5F..EFI |
1 | ||
| 82121-1C051 |
EP81..5F..EFI |
1 | ||
| 82121-10750 |
EP81..EFI |
1 | ||
| 82121-1C053 |
EP81..5F |
1 | ||
| 82121-1C052 |
EP81..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-10080 |
EP81..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EP8# 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EP8# 60A,TERM.:FEMALE,YEL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
EP8#,NP80 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
EP8#,NP80 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91651-61016 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
(8912-9601)
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10070 | ||||
| 82711-10080 | ||||
| 82711-10370 | ||||
| 82711-12200 | ||||
| 82711-16430 | ||||
| 82711-24420 | ||||
| 82711-2A590 | ||||
| 82711-2A730 | ||||
| 82711-30550 | ||||
| 82711-50510 | ||||
| 82715-10010 | ||||
| 82715-10020 | ||||
| 82715-10030 | ||||
| 82715-10040 | ||||
| 82715-10050 | ||||
| 82715-10060 | ||||
| 82715-10090 | ||||
| 82715-10100 | ||||
| 82715-10130 | ||||
| 82715-18040 | ||||
| 82715-89113 | ||||
| 82715-89119 | ||||
| 90119-08443 | ||||
| 90464-00166 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||

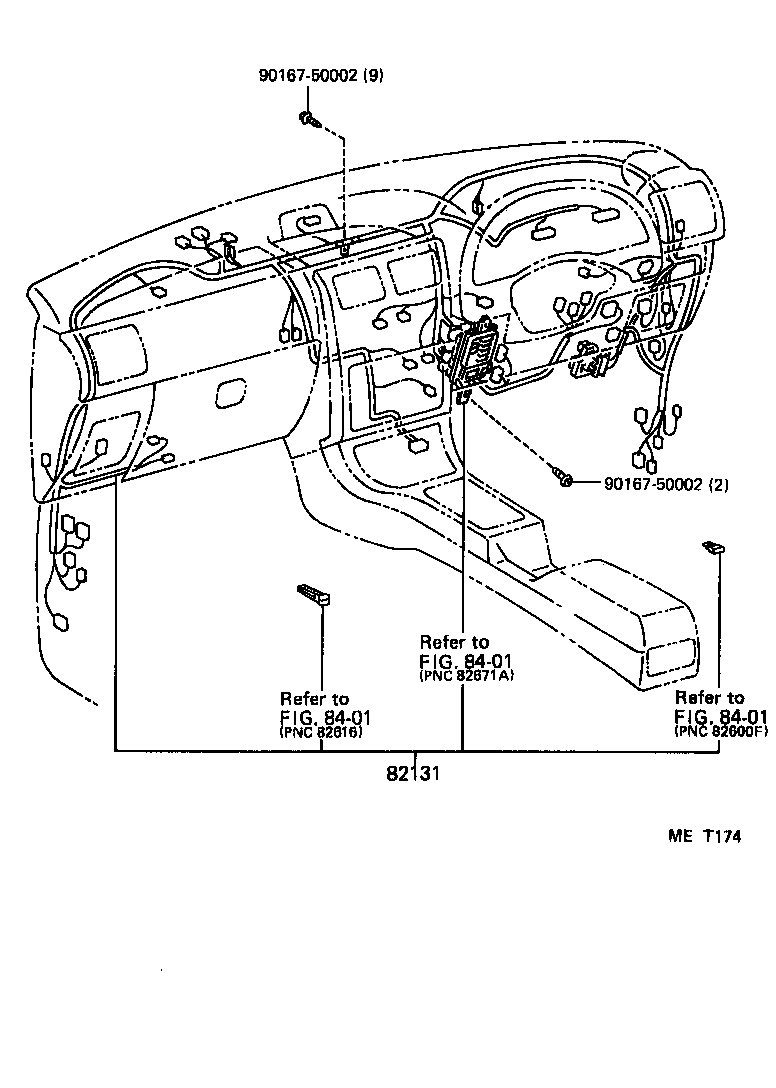

ILLUST NO. 2 OF 5(8912-9601)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1C650 |
EP81..RHD UNITED KINGDOM SPEC & W(HEADLAMP TURN-OFF WARNING & *EL);UNITED KINGDOM SPEC & W(*EL & *RW);UNITED KINGDOM SPEC & W(*EL & *RFL) OR UNITED KINGDOM SPEC & W(*SNR & *RFL) |
1 | ||
| 82131-1C760 |
EP81..XLI |
1 | ||
| 82131-1C640 |
EP81..RHD;EP80..RHD..4F W(*EL) OR W(*SNR) OR W(HEADLAMP TURN-OFF WARNING) OR W(*RFL) |
1 | ||
| 82131-1C780 |
EP81..XLI NORWAY SPEC |
1 | ||
| 82131-1C770 |
EP81..XLI W(*66) OR W(*EL) OR W(*SNR) |
1 | ||
| 82131-1C620 |
EP8#..RHD |
1 | ||
| 82131-1C830 |
EP81..XLI NORWAY SPEC & W(TACHOMETER) |
1 | ||
| 82131-1C810 |
EP81..XLI W(TACHOMETER) |
1 | ||
| 82131-1M090 |
EP81..5F..XLI *FRG |
1 | ||
| 82131-1M110 |
EP81..5F..XLI *FRG & W(TACHOMETER) |
1 | ||
| 82131-1C870 |
EP81..XLI NORWAY SPEC & W(*SNR & TACHOMETER);NORWAY SPEC W(*66 & TACHOMETER) OR NORWAY SPEC& W(*EL & TACHOMETER) |
1 | ||
| 82131-1C790 |
EP81..XLI NORWAY SPEC & W(*SNR) OR NORWAY SPEC & W(*EL) |
1 | ||
| 82131-1M120 |
EP81..5F..XLI *FRG & W(*SNR & TACHOMETER);*FRG & W(*66 & TACHOMETER) OR *FRG & W(*EL & TACHOMETER) |
1 | ||
| 82131-1M100 |
EP81..5F..XLI *FRG & W(*66) OR *FRG & W(*EL) OR *FRG & W(*SNR) |
1 | ||
| 82131-1C820 |
EP81..XLI W(*66 & TACHOMETER) OR W(*EL & TACHOMETER) OR W(*SNR & TACHOMETER) |
1 | ||
| 82131-1M400 |
EP81..RHD..XLI UNITED KINGDOM SPEC & W(*RFL) |
1 | ||
| 82131-1M401 |
EP81..RHD..XLI UNITED KINGDOM SPEC & W(*RFL) |
1 | ||
| 82131-1M390 |
EP81..RHD..XLI W(HEADLAMP TURN-OFF WARNING);W(*EL) OR W(*SNR) |
1 | ||
| 82131-1M380 |
EP81..RHD |
1 | ||
| 82131-1M381 |
EP81..RHD |
1 | ||
| 82131-1M402 |
EP81..RHD..5D UNITED KINGDOM SPEC & W(*RFL) |
1 | ||
| 82131-1M391 |
EP81..RHD W(*EL) OR W(*SNR) |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

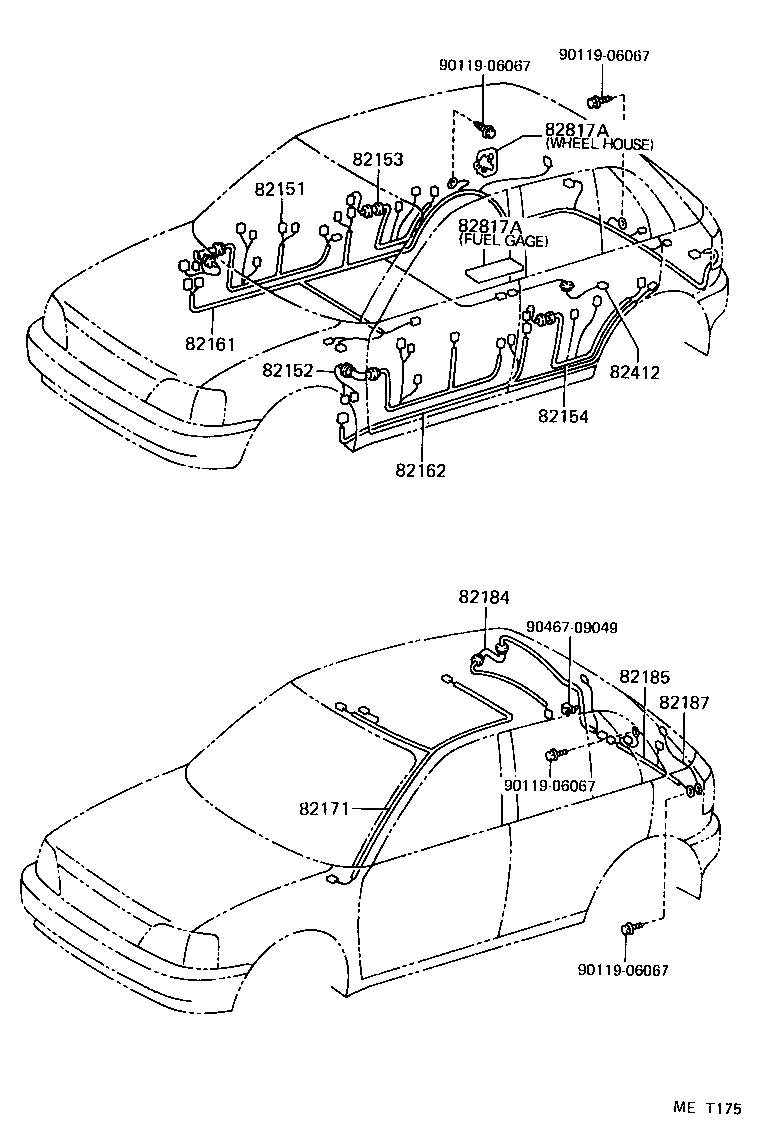

ILLUST NO. 3 OF 5(8912-9601)5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-10110 |
EP8#..RHD..5F..XL |
1 | ||
| 82151-10220 |
EP8#..RHD..5D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-10160 |
EP8#..RHD..5F..XL |
1 | ||
| 82152-10220 |
EP8#..RHD..5D |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-10020 |
EP8#..5D..(GL,XL,XLI) |
1 | ||
| 82153-10040 |
EP8#..5D..(XL,XLI) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-10020 |
EP8#..5D..(GL,XL,XLI) |
1 | ||
| 82154-10040 |
EP8#..5D..(XL,XLI) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-10510 |
EP8#..RHD..5F..XL W(*EL) |
1 | ||
| 82161-10500 |
EP81..EFI |
1 | ||
| 82161-10550 |
EP80..LHD..5D;EP81..5F..EFI *FRG |
1 | ||
| 82161-10530 |
EP81..GL,S;EP8#..5D..(STD,XL) |
1 | ||
| 82161-10560 |
EP81..5D..EFI;EP80..LHD..5D..XL *FRG & W(*66) OR *FRG & W(*EL) |
1 | ||
| 82161-10740 |
EP8#,NP80..MTM |
1 | ||
| 82161-10760 |
EP8#..RHD..5D W(*EL) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-10180 |
EP8#..5D |
1 | ||
| 82162-10170 |
EP8#..5D..(GL,XL,XLI) W(POWER DOOR LOCK) |
1 | ||
| 82162-10200 |
EP8#..5D..(XL,XLI) W(POWER DOOR LOCK) |
1 | ||
| 82162-10210 |
EP8#..RHD..5D |
1 | ||
| 82162-10211 |
EP81..RHD..5D |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-10050 |
EP8#..RHD |
1 | ||
| 82171-10060 |
EP8#..RHD W(MOON ROOF) |
1 | ||
| 82171-10110 |
EP8#..RHD W(MOON ROOF) |
1 | ||
| 82171-10052 |
EP81..RHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-10090 |
EP8#,NP80 |
1 | ||
| 82184-10090 |
EP8#,NP80..GL,S,SI,XL,XLI |
1 | ||
| 82184-10140 |
EP8#,NP80 W(*RFL & *RW) |
1 | ||
| 82184-10120 |
EP8#,NP80 W(REAR FOG LAMP) |
1 | ||
| 82184-10100 |
EP8#,NP80..GL,S,SI,XL,XLI W(REAR WIPER) |
1 | ||
| 82184-10140 |
EP81,NP80 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-10020 |
EP8#,NP80 W(REAR WIPER) |
1 | ||
| 82185-10040 |
EP8#..RHD W(REAR FOG LAMP) |
1 | ||
| 82185-10050 |
EP8#..RHD W(REAR FOG LAMP & REAR WIPER) |
1 | ||
| 82185-10140 |
EP8#..RHD W(REAR FOG LAMP & REAR WIPER) |
1 | ||
| 82185-10130 |
EP8#..RHD W(REAR FOG LAMP) |
1 | ||
| 82185-10140 |
EP81..RHD W(REAR FOG LAMP) |
1 | ||
| 82185-10020 |
EP81,NP80 |
1 | ||
| 82185-10200 |
EP81..RHD W(*HSL) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-10020 |
EP8#,NP80 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-10040 |
EP8#,NP80..GL,STD,XL |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-10180 |
EP8#,NP80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-10180 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90467-09049 | ||||

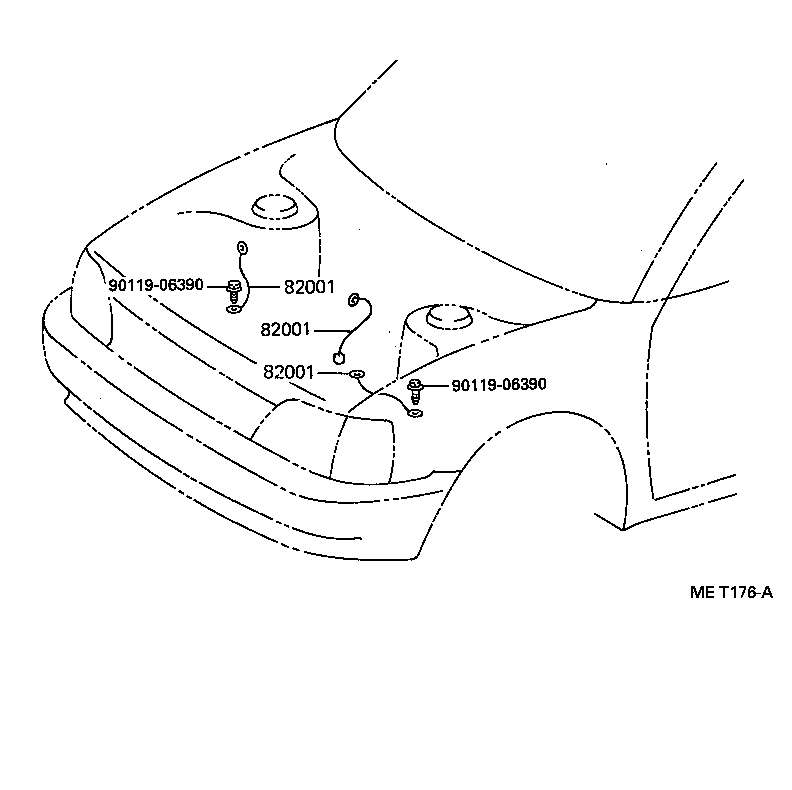

ILLUST NO. 4 OF 5(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07318 |
EP8# FENDER,LH |
1 | ||
| 90980-07241 |
EP8# FENDER,RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07318 |
EP8# FENDER,LH |
1 | ||
| 90980-07241 |
EP8# FENDER,RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07318 |
EP8# FENDER,LH |
1 | ||
| 90980-07241 |
EP8# FENDER,RH |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
