EP81R-AHMNEC (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 2EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9212)1E,2E# ; (9212- )2EE

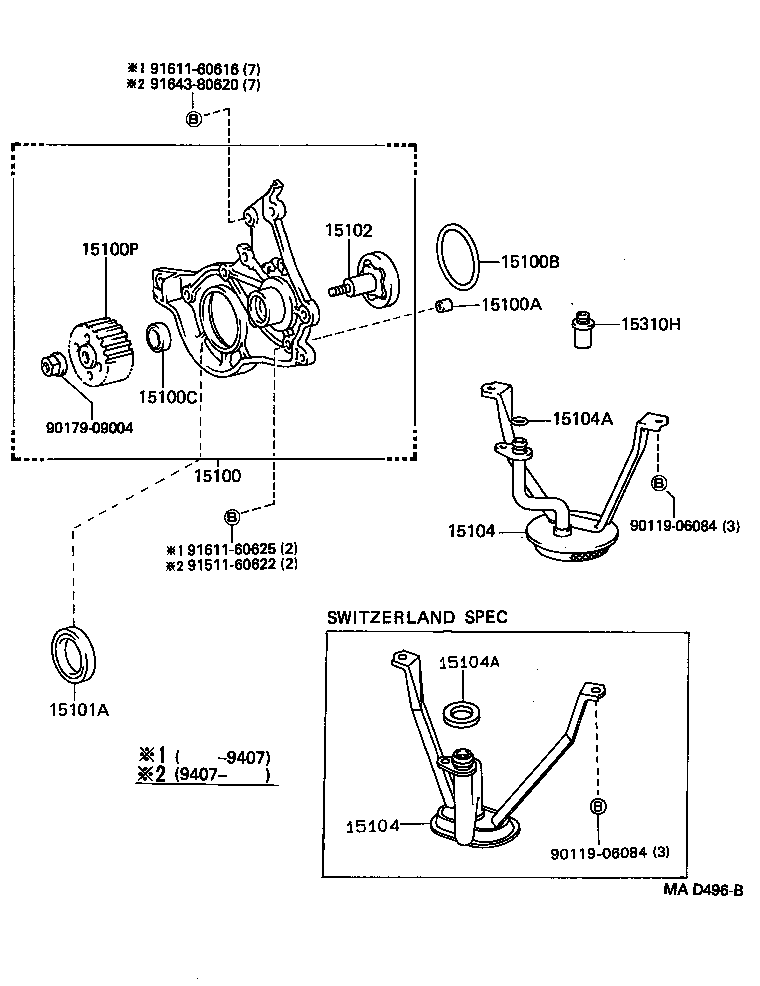

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100P 15101A 15102 15104 15104 15104A 15104A 15310H 9011906084 9011906084 9017909004 9151160622 9161160616 9161160625 9164380620
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-11051

2EE..EP81

 1
15100-11050

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-09001

1E,2E..EP8#;2EE..EP81..3FC,5F

 2
15100B - RING, O(FOR OIL PUMP)
90301-55005

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15100C - SEAL(FOR OIL PUMP)
90029-21020

2EE..EP81

 1
90029-21007

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-11010

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-35017

1E,2E..EP8#;2EE..EP81..5F

 1
90311-35035

2EE..EP81

 1
15102 - ROTOR SET, OIL PUMP
15102-11040

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15104 - STRAINER SUB-ASSY, OIL
15104-11020

2EE..EP81..5F

SWITZERLAND SPEC

 1
15104-10020

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15104 - STRAINER SUB-ASSY, OIL
15104-11020

2EE..EP81..5F

SWITZERLAND SPEC

 1
15104-10020

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24015

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24015

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15310H - REGULATOR ASSY, OIL
15310-10010

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
Common parts
90119-06084
90179-09004
91511-60622
91611-60616
91611-60625
91643-80620
