EP81L-AHMNSW (1989)
Toyota Starlet
Production
Dec 1989
-
Dec 1992
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

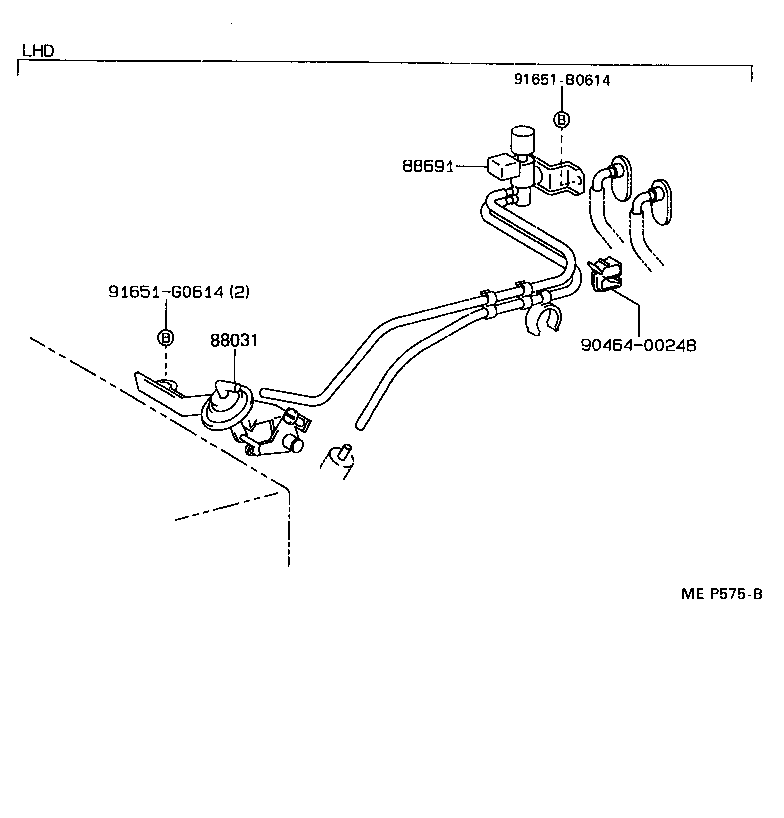

(8912-9201)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12200 |
EP8#..LHD..CBR |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-10280 |
EP8#..LHD..CBR |
1 | ||
| 88691-16060 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 90464-00248 | ||||
| 91651-B0614 | ||||
| 91651-G0614 | ||||

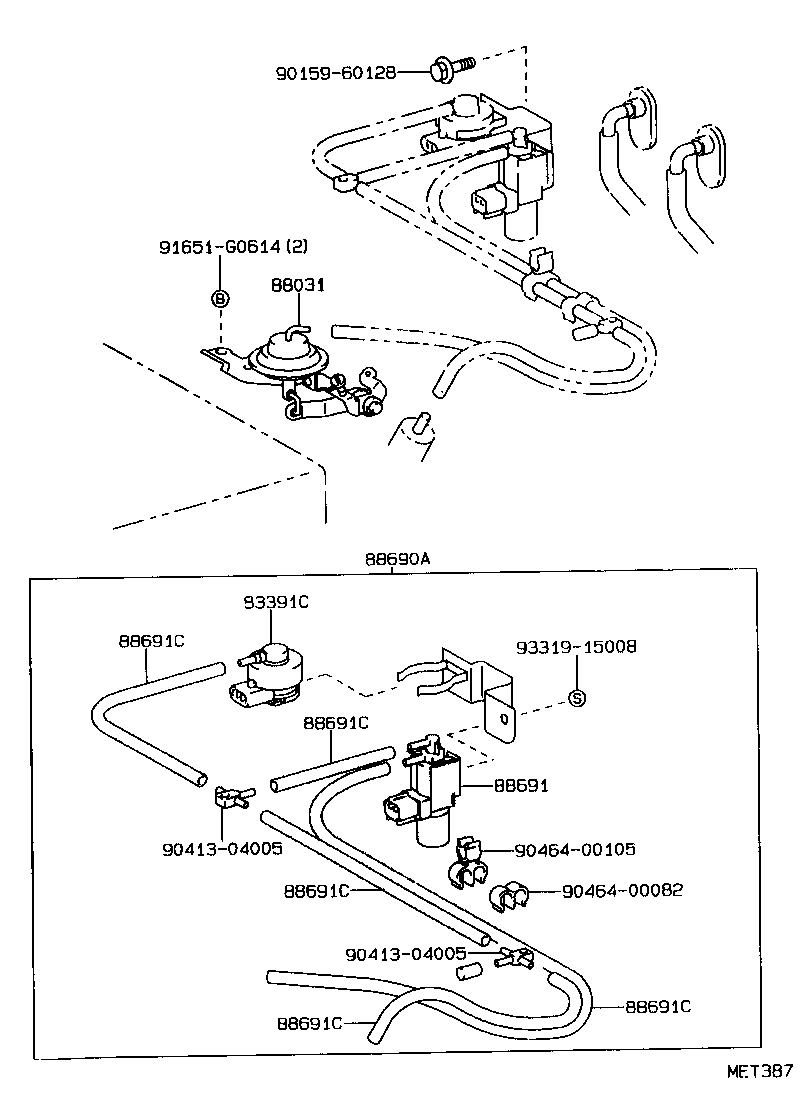

(9201- )EP81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391C - SWITCH, COOLER VACUUM | ||||
| 83391-12210 |
EP8#..LHD..CBR |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12200 |
EP8#..LHD..CBR |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-10380 |
EP81..CBR |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-10280 |
EP8#..LHD..CBR |
1 | ||
| 88691-16060 |
EP8#..LHD..CBR |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
EP81..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP81..CBR L=600 |
1 | ||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP8#..LHD..CBR L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
EP81..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP81..CBR L=600 |
1 | ||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP8#..LHD..CBR L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
EP81..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP81..CBR L=600 |
1 | ||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP8#..LHD..CBR L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
EP81..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP81..CBR L=600 |
1 | ||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP8#..LHD..CBR L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92002 |
EP81..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP81..CBR L=600 |
1 | ||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 90999-92003 |
EP8#..LHD..CBR L=600 |
1 | ||
| Common parts | ||||
| 90159-60128 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00105 | ||||
| 91651-G0614 | ||||
| 93319-15008 | ||||
