Toyota Starlet

Production Dec 1989 - Jan 1996

Engine 2EE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8912-9601)

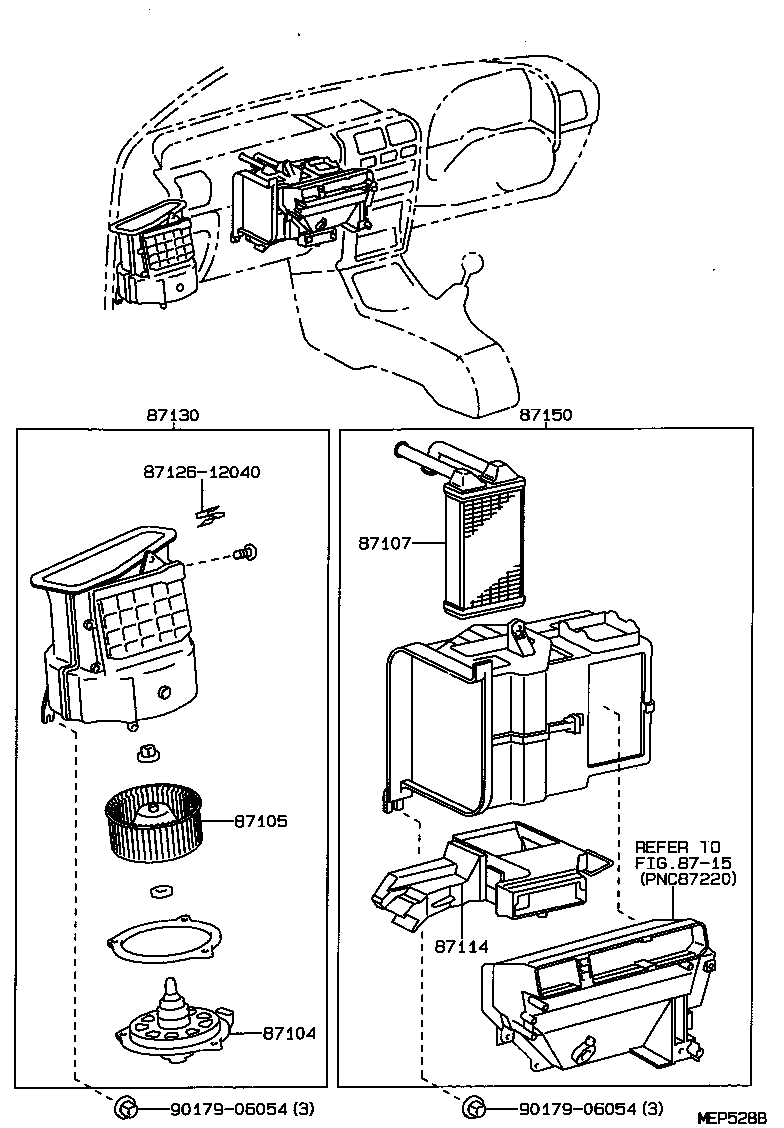

Click highlighted areas on diagram

HEATER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-10240	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87104-10240	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87104-10240	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87104-10240	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
87104-10230	EP8#,NP80..LHD	12/1989 - 01/1996	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87105-14020	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87105-14020	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87134-30010	EP8#,NP80..LHD	12/1989 - 01/1996	1
87105-14020	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10300	EP8#..LHD	12/1989 - 01/1996	1
87114 - COVER, HEATER
87114-10090	EP81..3FC..EFI;EP8#,NP80..LHD..MTM COLD SPEC	12/1989 - 01/1996	1
87114-10080	EP8#,NP80..LHD	12/1989 - 01/1996	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10270	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87130-10270	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87130-10270	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87130-10260	EP8#,NP80..LHD	12/1989 - 01/1996	1
87130-10270	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
87150 - RADIATOR ASSY, HEATER
87150-10390	EP8#..LHD	12/1989 - 01/1996	1
87150-10400	EP8#..LHD..MTM;EP81..3FC..EFI COLD SPEC	12/1989 - 01/1996	1
Common parts
87126-12040
90179-06054
Linked diagrams
8715

(8912-9201)

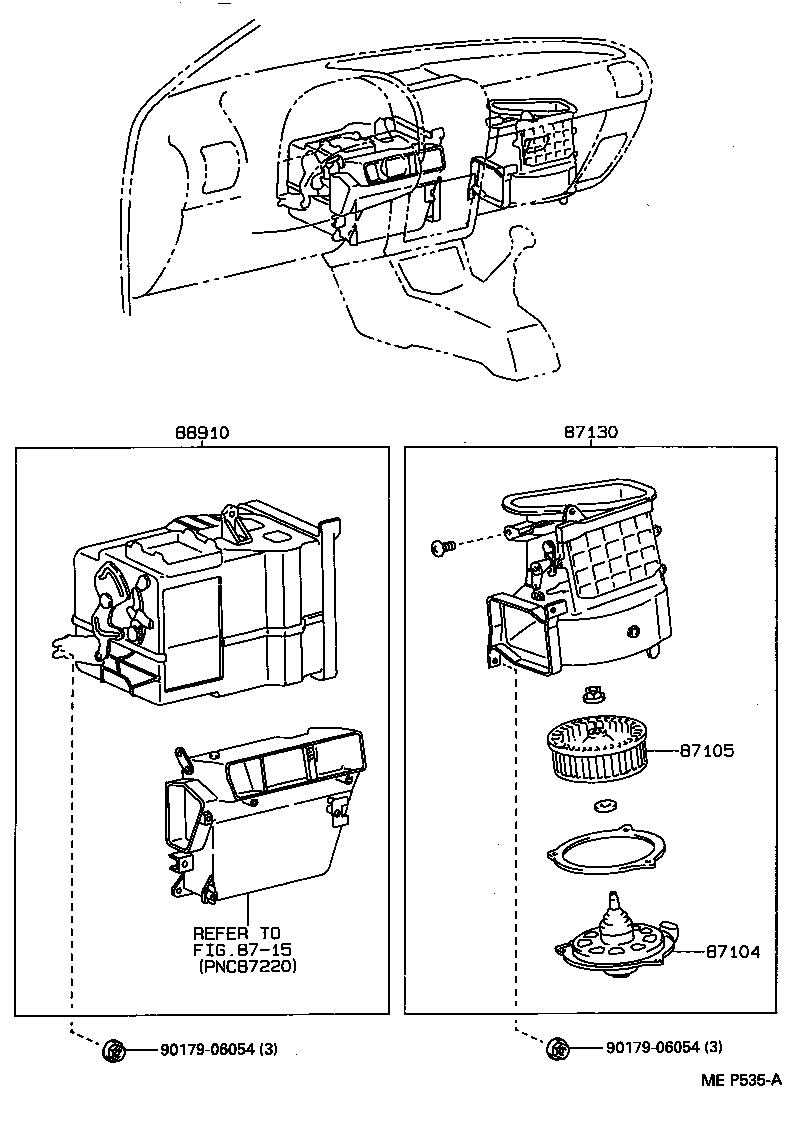

Click highlighted areas on diagram

BOOST VENTILATOR

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-10240	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87104-10240	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87104-10240	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87104-10240	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
87104-10230	EP8#,NP80..LHD	12/1989 - 01/1996	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87105-14020	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87105-14020	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87134-30010	EP8#,NP80..LHD	12/1989 - 01/1996	1
87105-14020	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10270	EP81,NP80..DSL,EFI COLD SPEC	12/1989 - 01/1992	1
87130-10270	EP81..SI;EP81..3D..3FC;EP81..LHD..5D..5F..EFI COLD SPEC OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
87130-10270	EP81..LHD COLD SPEC OR W(HEATER&BOOST VENTILATOR) OR W(AIR CONDITIONER)	12/1992 - 12/1993	1
87130-10260	EP8#,NP80..LHD	12/1989 - 01/1996	1
87130-10270	EP81..LHD COLD SPEC OR BV OR MANUAL AIC---*LHC OR DEALER OPT	12/1993 - 01/1996	1
88910 - VENTILATOR ASSY, BOOST
88910-10120	EP81..LHD	12/1992 - 01/1996	1
Common parts
90179-06054
Linked diagrams
8715
