EP81L-AHMNEC (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

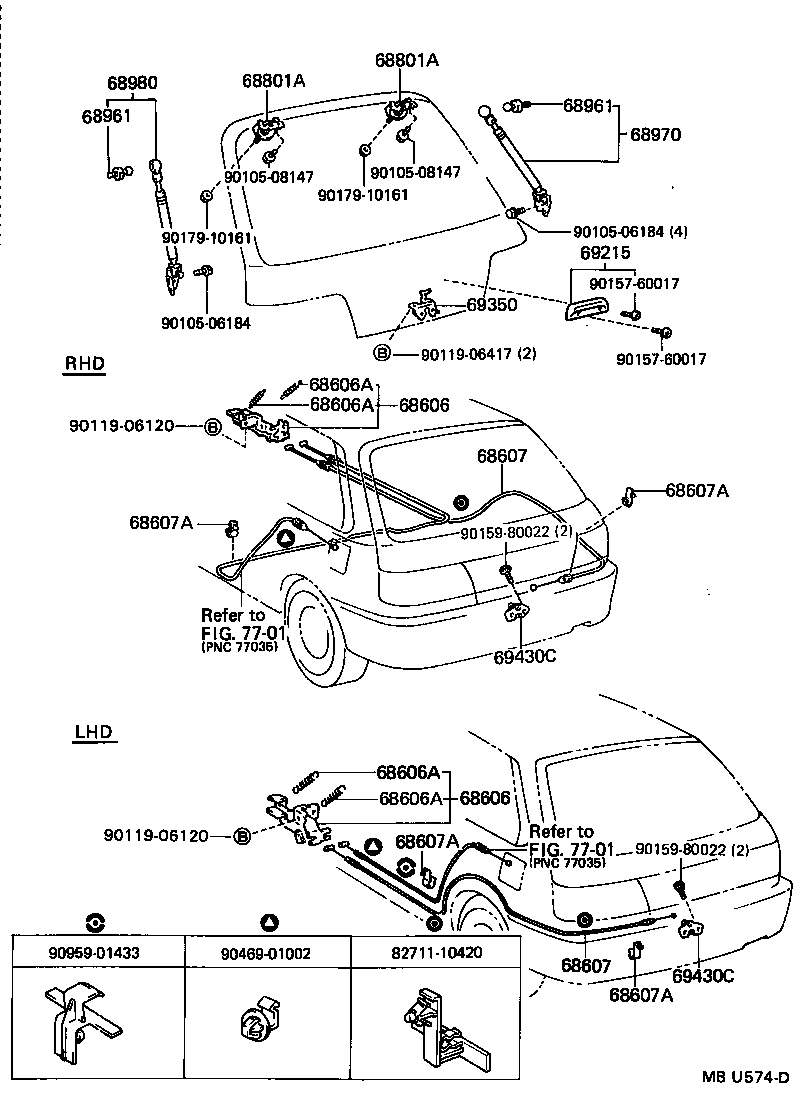

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12050 |
EP8#,NP80..LHD |
1 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12050 |
EP8#,NP80..LHD |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EP8#,NP80 |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EP8#,NP80 |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EP8#,NP80 |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EP8#,NP80 |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-10130 |
EP8#,NP80..LHD |
1 | ||
| 64607-10130 |
EP8#,NP80..LHD CYUHATSU |
1 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-10130 |
EP8#,NP80..LHD |
1 | ||
| 64607-10130 |
EP8#,NP80..LHD CYUHATSU |
1 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP8#,NP80..LHD |
3 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP8#,NP80..LHD |
3 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP8#,NP80..LHD |
3 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP8#,NP80..LHD |
3 | ||
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-10030 |
EP8#,NP80 |
2 | ||
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-10030 |
EP8#,NP80 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
EP8#,NP80 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
EP8#,NP80 |
2 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19705 |
EP8#,NP80 W(REAR WINDOW WIPER) |
1 | ||
| 68950-19705 |
EP81,NP80 |
1 | ||
| 68950-19695 |
EP8#,NP80 |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-19395 |
EP8#,NP80 W(REAR WINDOW WIPER) |
1 | ||
| 68960-19385 |
EP8#,NP80 |
1 | ||
| 68960-19395 |
EP81,NP80 |
1 | ||
| 69215 - HANDLE, BACK DOOR OUTSIDE | ||||
| 69209-10010 |
EP8#,NP80 |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-10110 |
EP8#,NP80 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-10060 |
EP8#,NP80..STD,XL,XLI |
1 | ||
| 69430-10070 |
EP8#,NP80..STD,XL,XLI W(BACK DOOR OPENER) |
1 | ||
| 69430-10070 |
EP81,NP80 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-10060 |
EP8#,NP80..STD,XL,XLI |
1 | ||
| 69430-10070 |
EP8#,NP80..STD,XL,XLI W(BACK DOOR OPENER) |
1 | ||
| 69430-10070 |
EP81,NP80 |
1 | ||
| Common parts | ||||
| 82711-10420 | ||||
| 90105-06184 | ||||
| 90105-08147 | ||||
| 90119-06120 | ||||
| 90119-06417 | ||||
| 90157-60017 | ||||
| 90159-80022 | ||||
| 90179-10161 | ||||
| 90469-01002 | ||||
| 90959-01433 | ||||
| Linked diagrams | ||||
| 7701 | ||||
