EP81L-AHMNEC (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

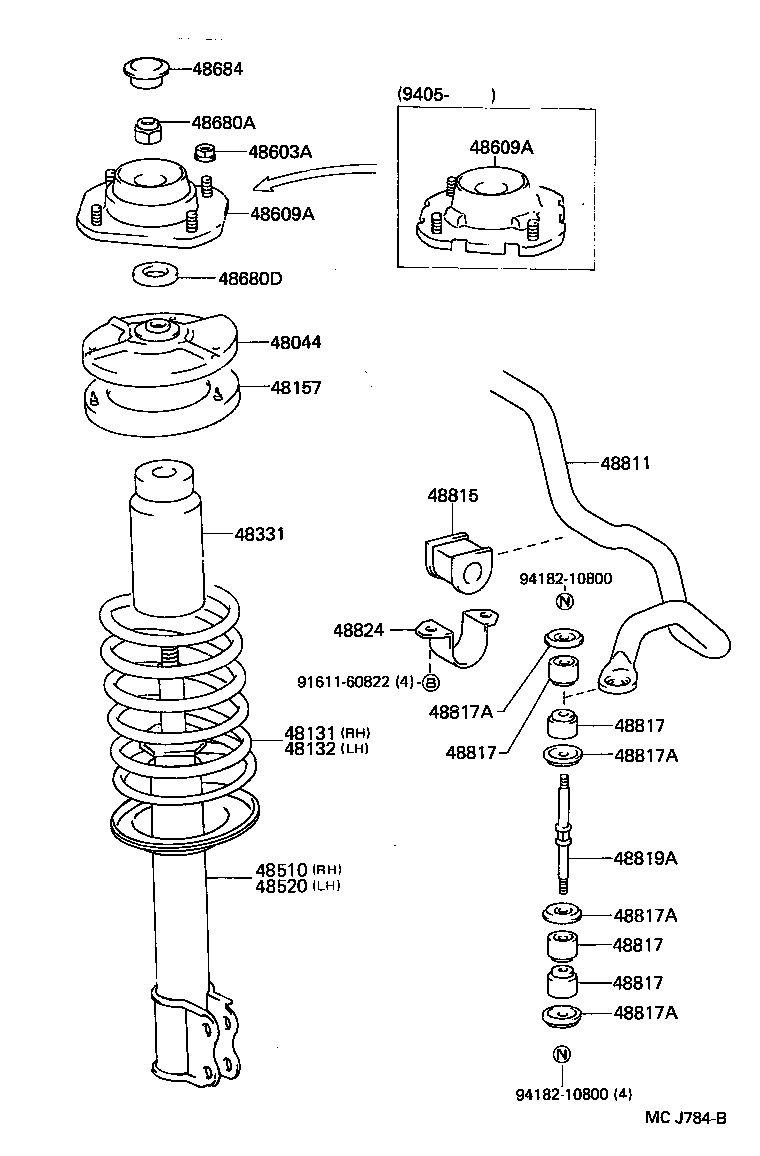

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-10030 |
EP8#,NP80 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-10460 |
EP8# |
1 | ||
| 48131-10622 |
EP8#..GL,GLI,STD,XL,XLI |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-10460 |
EP8# |
1 | ||
| 48131-10622 |
EP8#..GL,GLI,STD,XL,XLI |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-10020 |
EP8#,NP80 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-16060 |
EP8#,NP80 |
2 | ||
| 48331-10090 |
EP8#,NP80 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-10240 |
EP8#,NP80..GL,STD,XL,XLI |
1 | ||
| 48510-10241 |
EP8#,NP80..GL,GLI,STD,XL,XLI |
1 | ||
| 48510-10260 |
EP8#,NP80 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-10240 |
EP8#,NP80 |
1 | ||
| 48520-10220 |
EP8#,NP80..GL,STD,XL,XLI |
1 | ||
| 48520-10221 |
EP8#,NP80..GL,GLI,STD,XL,XLI |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EP8#,NP80 |
6 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-10130 |
EP81,NP80 |
2 | ||
| 48609-10090 |
EP8#,NP80 |
2 | ||
| 48609-10091 |
EP8#,NP80 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-10130 |
EP81,NP80 |
2 | ||
| 48609-10090 |
EP8#,NP80 |
2 | ||
| 48609-10091 |
EP8#,NP80 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EP8#,NP80 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
EP8#,NP80 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
EP8#,NP80 |
2 | ||
| Common parts | ||||
| 91611-60822 | ||||
| 94182-10800 | ||||
