EP81L-AHMNEC (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 2EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )MTM

Click highlighted areas on diagram

C140,C150,C154

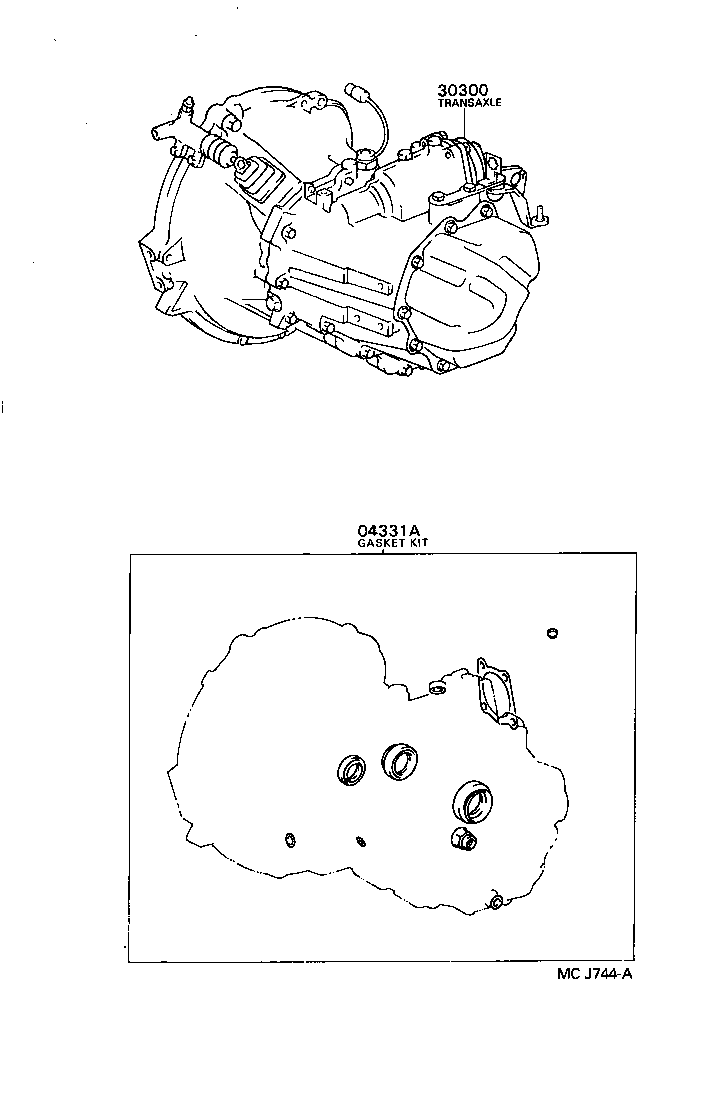

diagram 04331A 30300
Part # Description Qty Price
04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM)
04331-12080

EP8#,NP80..MTM

 1
04331-12080

EP80,NP80;EP81..LHD..5F;EP81..RHD..EFI

 1
30300 - TRANSAXLE ASSY, MANUAL
30300-10270

EP81..5F..EFI

*AXC=-542

 1
30300-10280

EP80..5F;EP81..5F..EFI

 1
30300-10270

EP81..5F

 1
30300-10280

EP80..5F;EP81..LHD..5F..EFI

*AXC=-572

 1
30300-10272

EP81..5F

 1
30300-10281

EP81..LHD..5F

*AXC=-572

 1
30300-10280

EP81..5F..EFI

*AXC=-572

 1
30300-10270

EP81..LHD..5F;EP81..RHD..EFI

 1
30300-10282

EP81..LHD..5F

*AXC=-572

 1
30300-10271

EP81..5F

 1
