EP81L-AHMNEC (1989)
Toyota Starlet

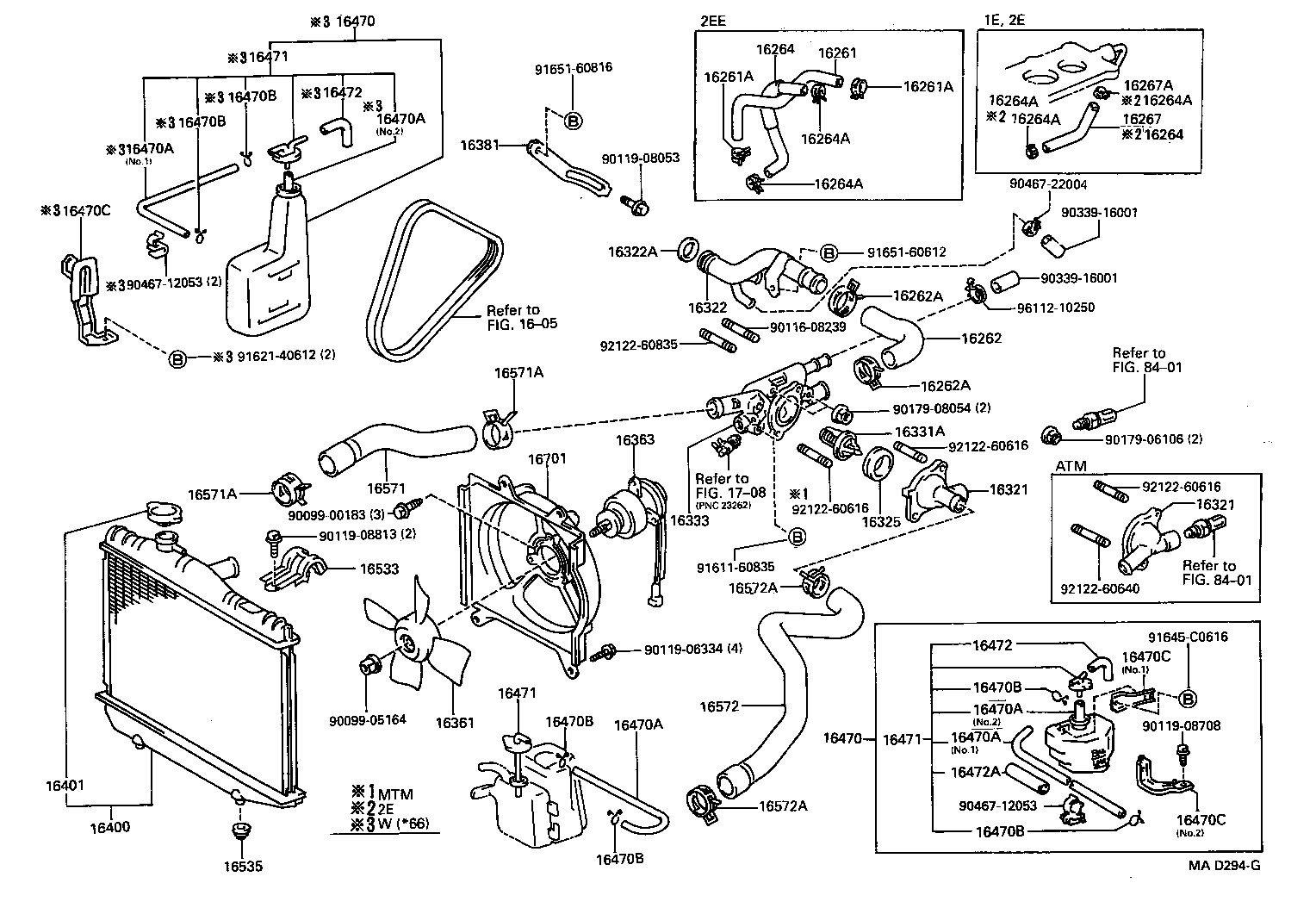

ILLUST NO. 1 OF 2(8912-9212)1E,2E# ; (9212- )2EE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11020 |
2EE..EP81..3FC,5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10010 |
2EE..EP81..5F;1E,2E..EP8#..MTM |
1 | ||
| 16262-10011 |
2EE..EP81..5F |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16265-11040 |
2E..EP81 |
1 | ||
| 99555-00175 |
2EE..EP81..3FC,5F *H,L=175 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16265-11040 |
2E..EP81 |
1 | ||
| 99555-00175 |
2EE..EP81..3FC,5F *H,L=175 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 90467-13001 |
2E..EP81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 90467-13001 |
2E..EP81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 90467-13001 |
2E..EP81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 90467-13001 |
2E..EP81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EE..EP81..3FC,5F |
2 | ||
| 90467-13001 |
2E..EP81 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-10011 |
2EE..EP81..5F;1E,2E..EP8#..MTM |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-10011 |
2EE..EP81..5F;1E,2E..EP8#..MTM |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11080 |
2E..EP81 |
1 | ||
| 16322-11030 |
2EE..EP81..3FC,5F |
1 | ||
| 16322-11081 |
1E,2E..EP8# |
1 | ||
| 16322-11080 |
1E,2E..EP8# |
1 | ||
| 16322-11032 |
2EE..EP81 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35028 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 96761-35028 |
2EE..EP81 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16325-63011 |
2EE..EP81 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1E,2E..EP8#;2EE..EP81..3FC,5F *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-11190 |
2E..EP81 |
1 | ||
| 16303-11080 |
2EE..EP81..3FC,5F |
1 | ||
| 16333-11070 |
2EE..EP81 |
1 | ||
| 16303-11050 |
2E..EP81 |
1 | ||
| 16361 - FAN | ||||
| 16361-11010 |
2EE..EP81 |
1 | ||
| 16361-11010 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11010 |
1E,2E#..EP8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11021 |
1E,2E..EP8# |
1 | ||
| 16381-11030 |
2EE..EP81 |
1 | ||
| 16381-11020 |
1E,2E..EP8# |
1 | ||
| 16381-11030 |
1E..EP80;2EE..EP81..3FC,5F |
1 | ||
| 16381-11020 |
2E..EP81 |
1 | ||

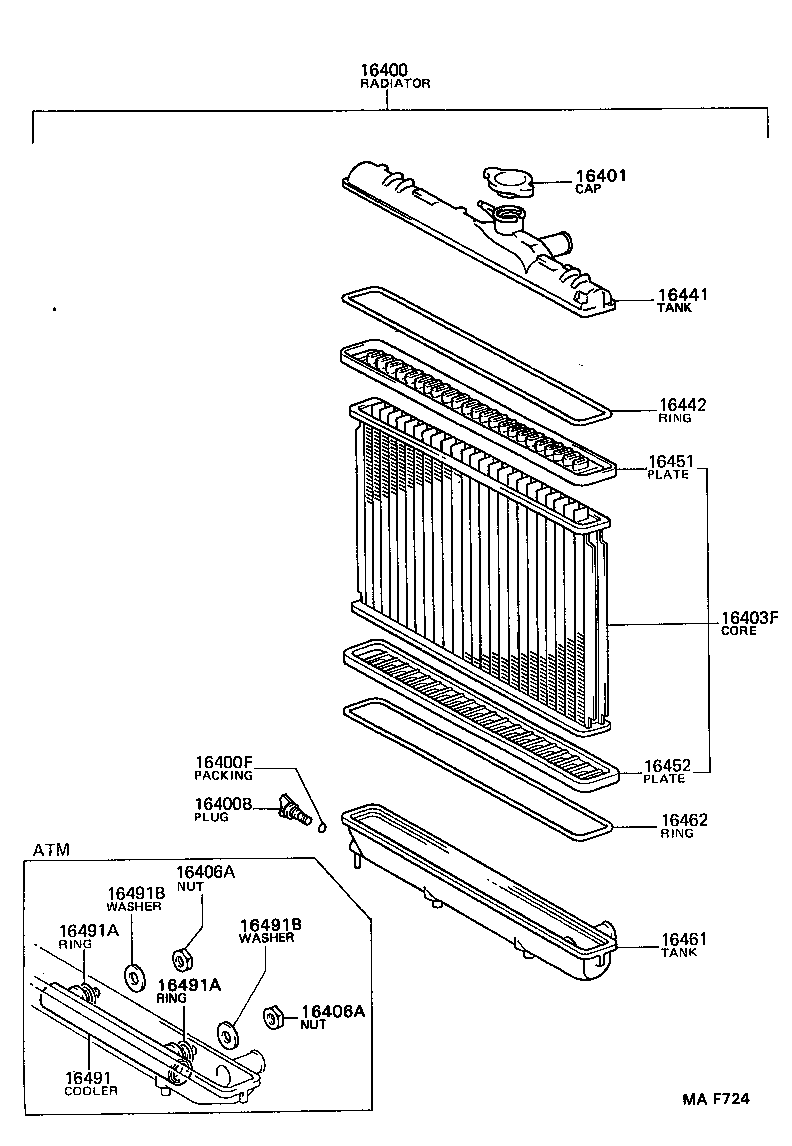

| 16400 - RADIATOR ASSY | ||||
| 16400-11380 |
2EE..EP81..5F |
1 | ||
| 16400-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16400-11320 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16400-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16400-11350 |
2EE..EP81..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2EE..EP81 |
1 | ||
| 16401-72090 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-11020 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(*66) |
1 | ||
| 16470-11080 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING) |
1 | ||
| 16470-11020 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16470-11020 |
2EE..EP81..LHD |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-11020 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(*66) |
1 | ||
| 16470-11080 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING) |
1 | ||
| 16470-11020 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16470-11020 |
2EE..EP81..LHD |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1E,2E..EP8#..LHD;2EE..EP81..3FC,5F L=600,W(*66) |
1 | ||
| 85319-10160 |
1E,2E#..EP8# *H,L=640 |
1 | ||
| 90099-33534 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=1000,W(POWER STEERING),NO.1 |
1 | ||
| 90445-12078 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=600,W(POWER STEERING),NO.2 |
1 | ||
| 90445-12078 |
2EE..EP81..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 90445-12078 |
1E,2E#..EP8#..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1E,2E..EP8#..LHD;2EE..EP81..3FC,5F L=600,W(*66) |
1 | ||
| 85319-10160 |
1E,2E#..EP8# *H,L=640 |
1 | ||
| 90099-33534 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=1000,W(POWER STEERING),NO.1 |
1 | ||
| 90445-12078 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=600,W(POWER STEERING),NO.2 |
1 | ||
| 90445-12078 |
2EE..EP81..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 90445-12078 |
1E,2E#..EP8#..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1E,2E..EP8#..LHD;2EE..EP81..3FC,5F L=600,W(*66) |
1 | ||
| 85319-10160 |
1E,2E#..EP8# *H,L=640 |
1 | ||
| 90099-33534 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=1000,W(POWER STEERING),NO.1 |
1 | ||
| 90445-12078 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=600,W(POWER STEERING),NO.2 |
1 | ||
| 90445-12078 |
2EE..EP81..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 90445-12078 |
1E,2E#..EP8#..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1E,2E..EP8#..LHD;2EE..EP81..3FC,5F L=600,W(*66) |
1 | ||
| 85319-10160 |
1E,2E#..EP8# *H,L=640 |
1 | ||
| 90099-33534 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=1000,W(POWER STEERING),NO.1 |
1 | ||
| 90445-12078 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=600,W(POWER STEERING),NO.2 |
1 | ||
| 90445-12078 |
2EE..EP81..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 90445-12078 |
1E,2E#..EP8#..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1E,2E..EP8#..LHD;2EE..EP81..3FC,5F L=600,W(*66) |
1 | ||
| 85319-10160 |
1E,2E#..EP8# *H,L=640 |
1 | ||
| 90099-33534 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=1000,W(POWER STEERING),NO.1 |
1 | ||
| 90445-12078 |
2EE..EP81..5F;2EE..EP81..5D..3FC L=600,W(POWER STEERING),NO.2 |
1 | ||
| 90445-12078 |
2EE..EP81..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 90445-12078 |
1E,2E#..EP8#..LHD L=600,W(*66),NO.1,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E#..EP8# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16473-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.2 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD |
1 | ||
| 16471-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.1 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(*66) |
1 | ||
| 16611-11010 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16473-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.2 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD |
1 | ||
| 16471-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.1 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(*66) |
1 | ||
| 16611-11010 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16473-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.2 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD |
1 | ||
| 16471-55030 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(POWER STEERING),NO.1 |
1 | ||
| 16611-11010 |
2EE..EP81..LHD..5F;2EE..EP81..5D..3FC W(*66) |
1 | ||
| 16611-11010 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11020 |
2EE..EP81..LHD W(*66) |
1 | ||
| 85399-10160 |
1E,2E#..EP8# |
1 | ||
| 16405-11020 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) W(*66) |
1 | ||
| 16405-11080 |
2EE..EP81..5F;2EE..EP81..5D..3FC W(POWER STEERING) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11020 |
2EE..EP81..LHD W(*66) |
1 | ||
| 85399-10160 |
1E,2E#..EP8# |
1 | ||
| 16405-11020 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) W(*66) |
1 | ||
| 16405-11080 |
2EE..EP81..5F;2EE..EP81..5D..3FC W(POWER STEERING) |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11020 |
2EE..EP81..LHD W(*66) |
1 | ||
| 85399-10160 |
1E,2E#..EP8# |
1 | ||
| 16405-11020 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) W(*66) |
1 | ||
| 16405-11080 |
2EE..EP81..5F;2EE..EP81..5D..3FC W(POWER STEERING) |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
2EE..EP81..LHD |
1 | ||
| 85338-74040 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
2EE..EP81..LHD |
1 | ||
| 85338-74040 |
1E,2E..EP8#..LHD;2EE..EP81..LHD..(3FC,5F) |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16477-55030 |
2EE..EP81..5F;2EE..EP81..5D..3FC |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-11080 |
1E,2E..EP8#;2EE..EP81..5F |
2 | ||
| 16505-11080 |
2EE..EP81..5F |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-23008 |
2EE..EP81..5F |
2 | ||
| 90480-23008 |
1E,2E..EP8#;2EE..EP81..5F |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-11080 |
1E,2E..EP8#;2EE..EP81..5F |
1 | ||
| 16571-11080 |
2EE..EP81..5F |
1 | ||
| 16571-11080 |
1E,2E#..EP8#..MTM |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 90467-31003 |
2EE..EP81 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 90467-31003 |
2EE..EP81 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11130 |
2EE..EP81..5F |
1 | ||
| 16572-11130 |
2EE..EP81..5F;1E,2E..EP8#..MTM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
2EE..EP81 |
2 | ||
| 90467-31003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
2EE..EP81 |
2 | ||
| 90467-31003 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-11140 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16711-11140 |
2EE..EP81 |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-06334 | ||||
| 90119-08053 | ||||
| 90119-08708 | ||||
| 90119-08813 | ||||
| 90179-06106 | ||||
| 90179-08054 | ||||
| 90339-16001 | ||||
| 90467-12053 | ||||
| 90467-22004 | ||||
| 91611-60835 | ||||
| 91621-40612 | ||||
| 91645-C0616 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1708 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8912- )1E,2E#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-11380 |
2EE..EP81..5F |
1 | ||
| 16400-11380 |
2EE..EP81..5F |
1 | ||
| 16400-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16400-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16400-11320 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16400-11320 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16400-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16400-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16400-11350 |
2EE..EP81..5F |
1 | ||
| 16400-11350 |
2EE..EP81..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2EE..EP81 |
1 | ||
| 23322-54010 |
2EE..EP81 |
1 | ||
| 23322-54010 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 23322-54010 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 96711-19007 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 96711-19007 |
2EE..EP81 |
1 | ||
| 96711-19007 |
2EE..EP81 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2EE..EP81 |
1 | ||
| 16401-72090 |
2EE..EP81 |
1 | ||
| 16401-72090 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16401-72090 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16403-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16403-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16403-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16403-11320 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16403-11320 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16403-11380 |
2EE..EP81..5F |
1 | ||
| 16403-11380 |
2EE..EP81..5F |
1 | ||
| 16403-11350 |
2EE..EP81..5F |
1 | ||
| 16403-11350 |
2EE..EP81..5F |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16441-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16441-11350 |
2EE..EP81..5F |
1 | ||
| 16441-11350 |
2EE..EP81..5F |
1 | ||
| 16441-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16441-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16441-11380 |
2EE..EP81 |
1 | ||
| 16441-11380 |
2EE..EP81 |
1 | ||
| 16441-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16441-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16442-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16442-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16442-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16442-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16442-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16442-11380 |
2EE..EP81 |
1 | ||
| 16442-11380 |
2EE..EP81 |
1 | ||
| 16442-11350 |
2EE..EP81..5F |
1 | ||
| 16442-11350 |
2EE..EP81..5F |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-11380 |
2EE..EP81 |
1 | ||
| 16451-11380 |
2EE..EP81 |
1 | ||
| 16451-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16451-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16451-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16451-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16451-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16451-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16451-11350 |
2EE..EP81..5F |
1 | ||
| 16451-11350 |
2EE..EP81..5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16452-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16452-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16452-11380 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16452-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16452-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16452-11380 |
2EE..EP81 |
1 | ||
| 16452-11380 |
2EE..EP81 |
1 | ||
| 16452-11350 |
2EE..EP81..5F |
1 | ||
| 16452-11350 |
2EE..EP81..5F |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-11380 |
2EE..EP81..5F |
1 | ||
| 16461-11380 |
2EE..EP81..5F |
1 | ||
| 16461-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16461-11380 |
2E..EP81..MTM;2EE..EP81..5F |
1 | ||
| 16461-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16461-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16461-11350 |
2EE..EP81..5F |
1 | ||
| 16461-11350 |
2EE..EP81..5F |
1 | ||
| 16461-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16461-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16462-11300 |
2EE..EP81..LHD..5F SWITZERLAND SPEC |
1 | ||
| 16462-42240 |
2EE..EP81 |
1 | ||
| 16462-42240 |
2EE..EP81 |
1 | ||
| 16462-42240 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16462-42240 |
2E..EP81..MTM;2EE..EP81..3FC,5F |
1 | ||
| 16462-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16462-11350 |
1E,2E..EP8#..LHD..MTM W(AIR CONDITIONER) |
1 | ||
| 16462-11350 |
2EE..EP81..5F |
1 | ||
| 16462-11350 |
2EE..EP81..5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
