EP81L-AHMGSW (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

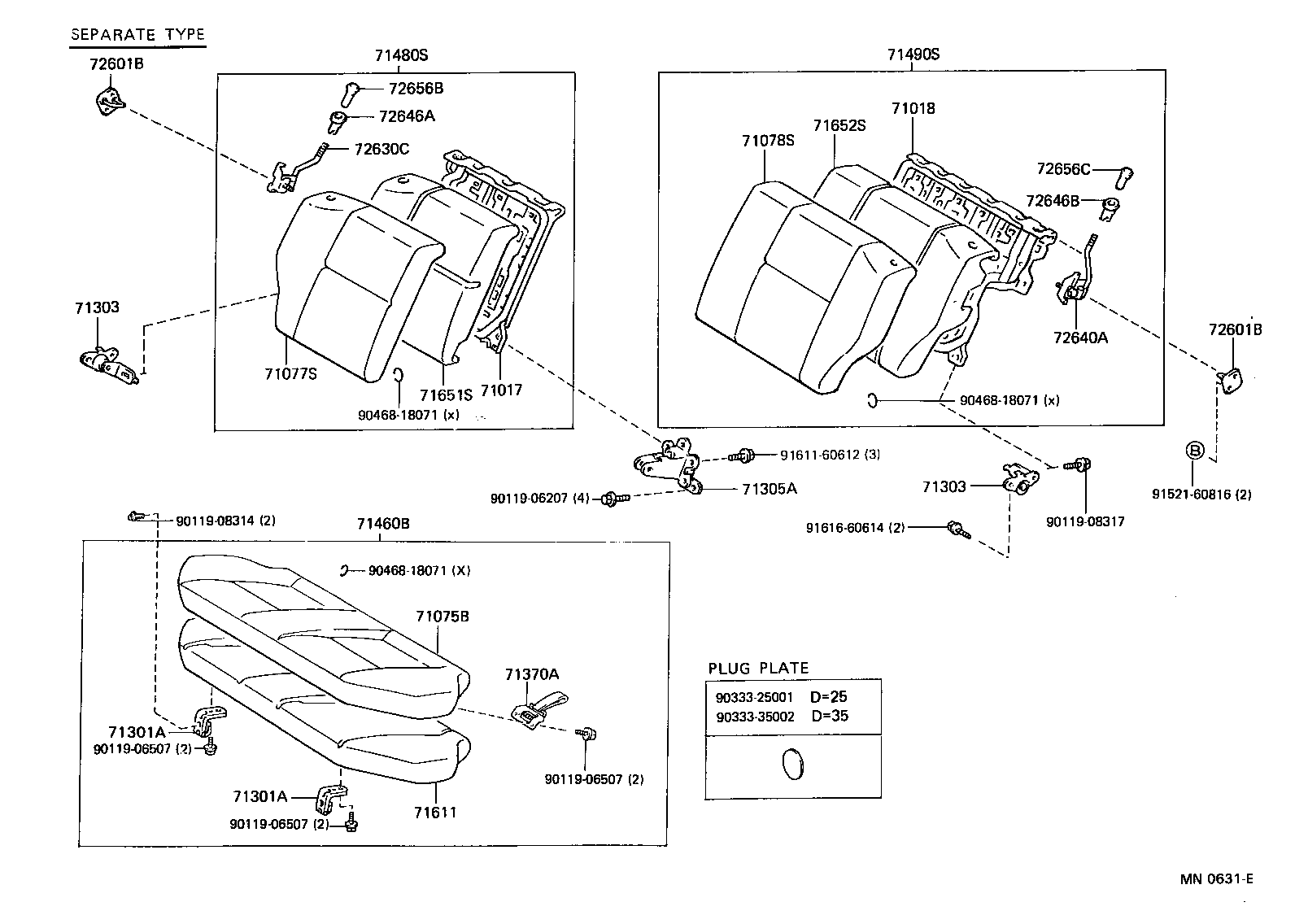

ILLUST NO. 1 OF 2(8912- )

Click highlighted areas on diagram

diagram 71017 71018 71075B 71077S 71078S 71301A 71301A 71303 71303 71305A 71370A 71460B 71480S 71490S 71611 71651S 71652S 72601B 72601B 72630C 72640A 72646A 72646B 72656B 72656C 9011906207 9011906507 9011906507 9011906507 9011908314 9011908317 9033325001 9033335002 9046818071 9046818071 9046818071 9152160816 9161160612 9161660614
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-10080

EP8#,NP80

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-10030

EP8#,NP80

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1010003

EP8#..GL

GRAY,TRIM1#

 1
71065-1010004

EP8#..GL

BLUE,TRIM8#

 1
71065-1024004

EP81..S,SI

BLUE,TRIM8#

 1
71065-1024003

EP81..S,SI

GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1C54003

EP8#..GL

GRAY,TRIM1#

 1
71077-1C54004

EP8#..GL

BLUE,TRIM8#

 1
71077-1C50004

EP81..S,SI

BLUE,TRIM8#

 1
71077-1C50003

EP81..S,SI

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1072003

EP81..S,SI

GRAY,TRIM1#

 1
71078-1074004

EP8#..GL

BLUE,TRIM8#

 1
71078-1074003

EP8#..GL

GRAY,TRIM1#

 1
71078-1072004

EP81..S,SI

BLUE,TRIM8#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-10090

EP8#,NP80

RH

 1
71301-10080

EP8#,NP80

LH

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-10090

EP8#,NP80

RH

 1
71301-10080

EP8#,NP80

LH

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10030

EP8#,NP80

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-10030

EP8#,NP80

 1
71370A - HOLDER ASSY, REAR SEAT CUSHION
71370-1001004

EP8#,NP80

BLUE,TRIM8#

 1
71370-1001003

EP8#,NP80

GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-1026003

EP81..S,SI

GRAY,TRIM1#

 1
71560-1033004

EP8#..GL

BLUE,TRIM8#

 1
71560-1033003

EP8#..GL

GRAY,TRIM1#

 1
71560-1026004

EP81..S,SI

BLUE,TRIM8#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1C42004

EP81..S,SI

BLUE,TRIM8#

 1
71480-1C59003

EP8#..GL

GRAY,TRIM1#

 1
71480-1C59004

EP8#..GL

BLUE,TRIM8#

 1
71480-1C42003

EP81..S,SI

GRAY,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1072004

EP81..S,SI

BLUE,TRIM8#

 1
71490-1083004

EP8#..GL

BLUE,TRIM8#

 1
71490-1083003

EP8#..GL

GRAY,TRIM1#

 1
71490-1072003

EP81..S,SI

GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-10030

EP8#,NP80

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-10260

EP8#,NP80

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-10150

EP8#,NP80

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-10060

EP8#,NP80

 2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-10080

EP8#,NP80

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-10070

EP8#,NP80

 1
72646A - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001004

EP8#,NP80

BLUE,TRIM8#

 1
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72646B - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1001003

EP8#,NP80

GRAY,TRIM1#

 1
72646-1001004

EP8#,NP80

BLUE,TRIM8#

 1
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001047

EP8#,NP80

BLUE,TRIM8#

 1
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656C - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001023

EP8#,NP80

GRAY,TRIM1#

 1
72656-2001047

EP8#,NP80

BLUE,TRIM8#

 1
Common parts
90119-06207
90119-06507
90119-08314
90119-08317
90333-25001
90333-35002
90468-18071
91521-60816
91611-60612
91616-60614

ILLUST NO. 2 OF 2(8912- )

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price
