EP81L-AHHNEC (1992)
Toyota Starlet
Production
Jan 1992
-
Jan 1996
Engine
2EE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)

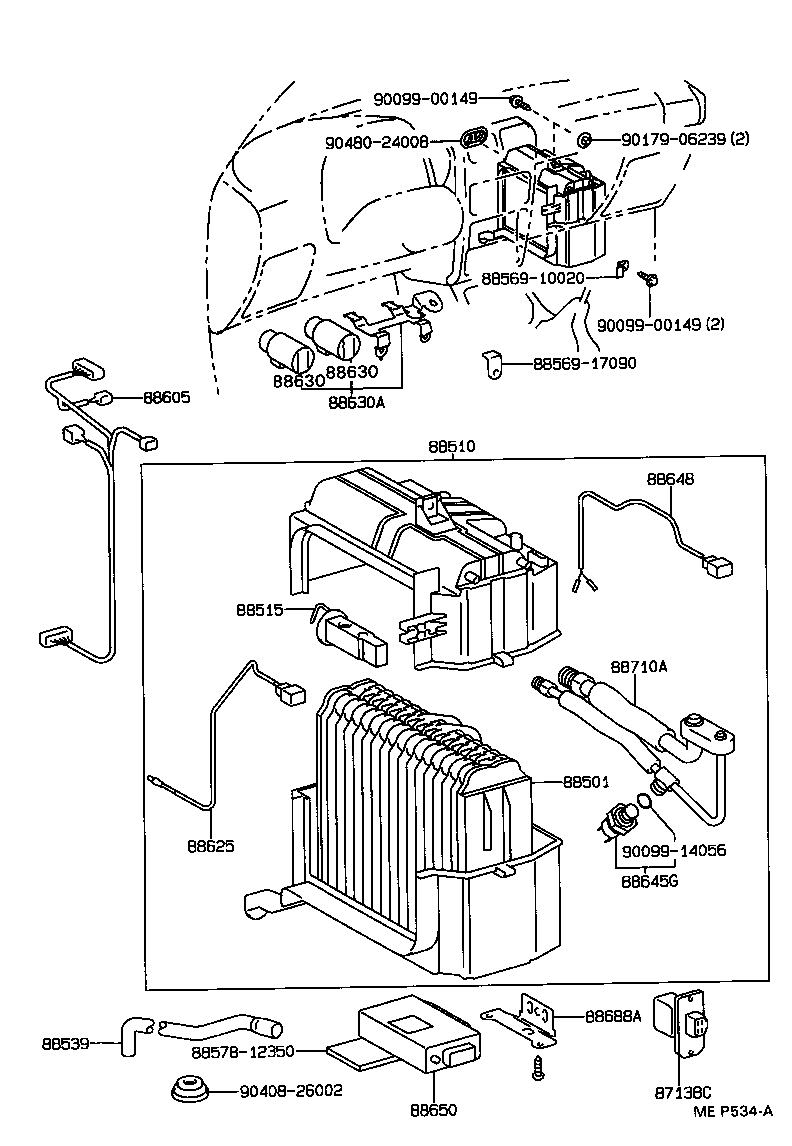

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-10130 |
EP8#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10110 |
EP8#..LHD |
1 | ||
| 88501-10130 |
EP81..LHD |
1 | ||
| 88501-16120 |
EP81..LHD |
1 | ||
| 88501-10131 |
EP81..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16490 |
EP81..LHD |
1 | ||
| 88510-10490 |
EP81..LHD |
1 | ||
| 88510-10250 |
EP8#..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
EP8#..LHD |
1 | ||
| 88515-20100 |
EP81..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10100 |
EP8#..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1C340 |
EP81..LHD..EFI |
1 | ||
| 88605-1C760 |
EP81..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
EP8#..LHD |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
EP8#..LHD |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
EP8#..LHD |
2 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-10120 |
EP8#..LHD |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30320 |
EP8#..LHD |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-10290 |
EP8#..LHD |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16411 |
EP81..LHD..EFI MANUAL *AIC---*LHC |
1 | ||
| 88650-16411 |
EP81..LHD *LHC |
1 | ||
| 88650-16411 |
EP81..LHD..(SI,XLI) MANUAL *AIC---*LHC OR DEALER OPT |
1 | ||
| 88650-16410 |
EP81..LHD..EFI MANUAL *AIC---*LHC |
1 | ||
| 88650-16410 |
EP81..LHD..EFI |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-10340 |
EP8#..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-16240 |
EP81..LHD |
1 | ||
| 88710-10070 |
EP8#..LHD |
1 | ||
| Common parts | ||||
| 88569-10020 | ||||
| 88569-17090 | ||||
| 88578-12350 | ||||
| 90099-00149 | ||||
| 90099-14056 | ||||
| 90179-06239 | ||||
| 90408-26002 | ||||
| 90480-24008 | ||||
