Toyota Starlet EP81 WINDSHIELD WASHER

EP81L-AHHNEC (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996

Engine 2EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8912-9601)

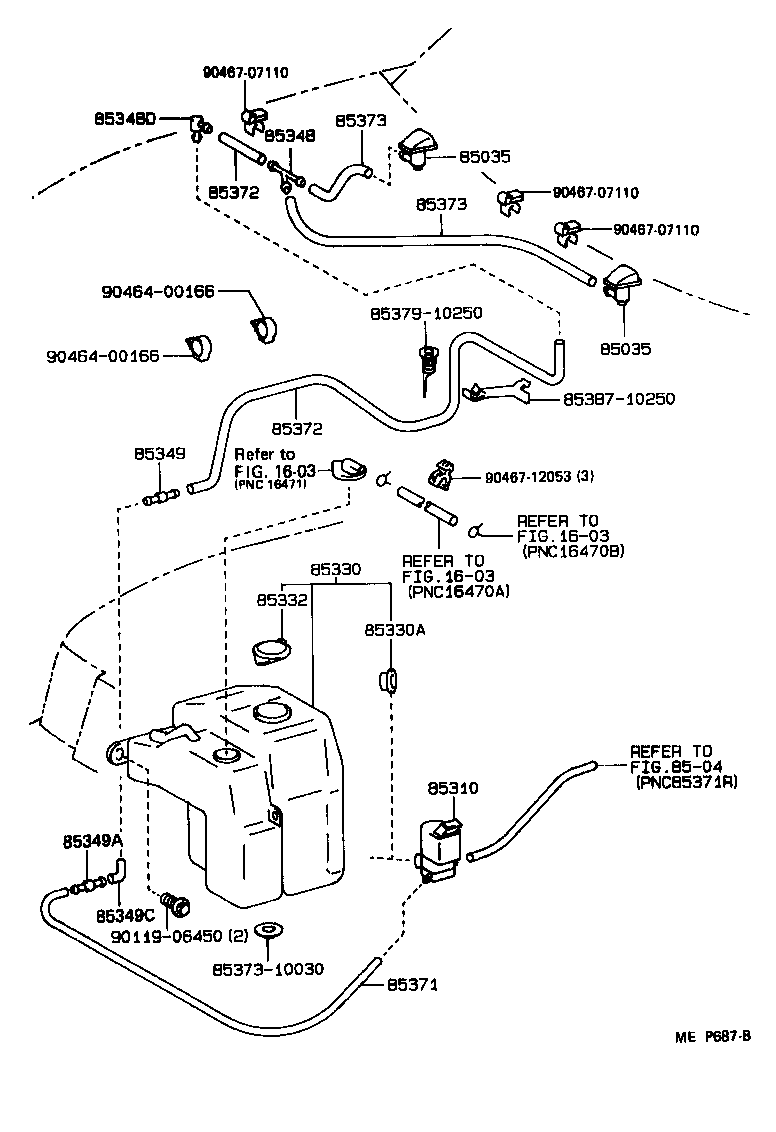

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-10030	EP8#,NP80..LHD	12/1989 - 01/1992	2
85381-10060	EP8#..LHD W(*66)	12/1989 - 01/1992	2
85381-12050	EP8#,NP80	01/1992 - 01/1996	2
85381-30020	EP8#..LHD W(*66)	01/1992 - 05/1994	2
85381-30020	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-10030	EP8#,NP80..LHD	12/1989 - 01/1992	2
85381-10060	EP8#..LHD W(*66)	12/1989 - 01/1992	2
85381-12050	EP8#,NP80	01/1992 - 01/1996	2
85381-30020	EP8#..LHD W(*66)	01/1992 - 05/1994	2
85381-30020	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10221	EP8#,NP80 W(REAR WIPER)	09/1992 - 05/1994	1
85310-20170	EP8#..LHD W(66 & RW) OR COLD SPEC & W(66 & RW)	01/1992 - 09/1992	1
85330-10220	EP8#,NP80 W(REAR WIPER)	12/1989 - 09/1992	1
85310-20210	EP8#..LHD W(*66)	12/1989 - 01/1992	1
85330-12280	EP8#..LHD W(66 & RW) OR COLD SPEC & W(66 & RW)	09/1992 - 12/1992	1
85330-10221	EP81,NP80	05/1994 - 01/1996	1
85330-12280	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85330-12280	EP81..LHD W(*66 & REAR WIPER)	12/1992 - 05/1994	1
85310-20200	EP8#,NP80	12/1989 - 05/1994	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-10190	EP8#..LHD W(*66)	01/1992 - 12/1992	1
85315-10160	EP8#,NP80	12/1989 - 12/1992	1
85315-10190	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85315-10170	EP81,NP80	12/1992 - 01/1996	1
85315-10170	EP8#,NP80..LHD COLD SPEC OR W(REAR WIPER)	01/1992 - 12/1992	1
85315-10190	EP81..LHD W(*66)	12/1992 - 05/1994	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EP8#,NP80	12/1989 - 01/1996	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-10160	EP8#,NP80	12/1989 - 12/1992	1
85316-10160	EP8#,NP80..LHD COLD SPEC	01/1992 - 12/1992	2
85316-10160	EP8#..LHD COLD SPEC & W(REAR WIPER)	01/1992 - 12/1992	1
85316-10190	EP8#..LHD W(*66)	12/1989 - 10/1993	1
85316-10160	EP81,NP80 W(REAR WIPER)	12/1992 - 10/1993	1
85316-34050	EP81,NP80	10/1993 - 01/1996	1
85316-16070	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85316-10160	EP81,NP80	12/1992 - 10/1993	2
85316-16070	EP81..LHD W(*66)	10/1993 - 05/1994	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EP8#,NP80	12/1989 - 01/1990	1
85348-14390	EP8#,NP80	01/1992 - 01/1996	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85376-10250	EP8#,NP80	01/1992 - 01/1996	1
85376-10250	EP8#,NP80	12/1989 - 01/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260	EP8#..LHD W(*66)	12/1989 - 05/1994	1
85349-89122	EP8#,NP80	12/1989 - 01/1990	1
85375-10260	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85349-89122	EP8#,NP80	01/1992 - 01/1996	1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	EP8#,NP80	12/1989 - 01/1996	1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-20070	EP8#,NP80	12/1989 - 01/1992	1
85355-14481	EP8#,NP80	01/1992 - 01/1996	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001	EP8#,NP80..LHD COLD SPEC	01/1992 - 12/1992	1
90446-07001	EP81,NP80	12/1992 - 05/1994	1
90446-06013	EP8#..LHD L=450,W(*66)	12/1989 - 05/1994	1
90446-06013	EP81..LHD L=450,W(*66) OR W(PS)	05/1994 - 01/1996	1
90446-07001	EP8#,NP80	12/1989 - 12/1992	1
90446-07001	EP81,NP80 W(REAR WIPER)	12/1992 - 05/1994	1
90446-07001	EP81,NP80	05/1994 - 01/1996	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
90446-07001	EP8#..LHD W(*66)	12/1989 - 05/1994	1
90446-07001	EP8#,NP80	12/1989 - 01/1990	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-07001	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
90446-07001	EP8#..LHD W(*66)	12/1989 - 05/1994	1
90446-07001	EP8#,NP80	12/1989 - 01/1990	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-07001	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33815	EP8#..LHD H,L=50,W(66)	12/1989 - 01/1990	1
90099-33815	EP8#,NP80 *H,L=50	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33815	EP8#..LHD H,L=50,W(66)	12/1989 - 01/1990	1
90099-33815	EP8#,NP80 *H,L=50	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
Common parts
85373-10030
85379-10250
85387-10250
90119-06450
90464-00166
90467-07110
90467-12053
Linked diagrams
1603
8504

(8912-9601)

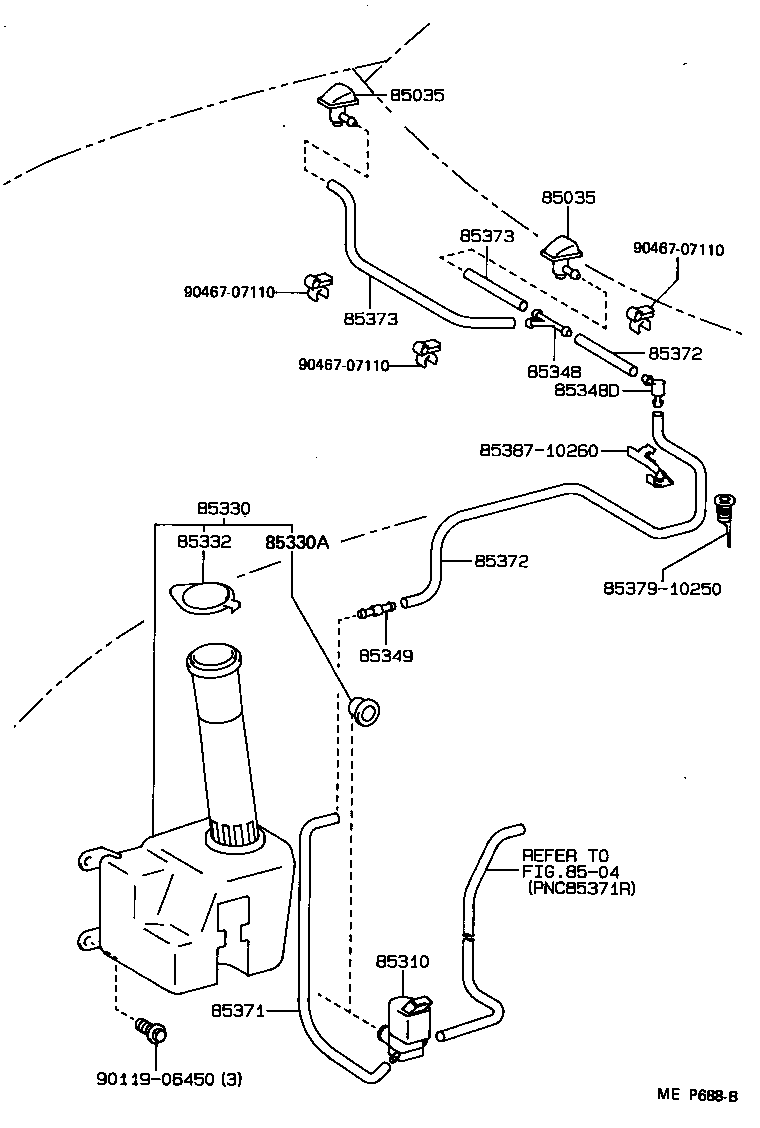

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-10030	EP8#,NP80..LHD	12/1989 - 01/1992	2
85381-10060	EP8#..LHD W(*66)	12/1989 - 01/1992	2
85381-12050	EP8#,NP80	01/1992 - 01/1996	2
85381-30020	EP8#..LHD W(*66)	01/1992 - 05/1994	2
85381-30020	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-10030	EP8#,NP80..LHD	12/1989 - 01/1992	2
85381-10060	EP8#..LHD W(*66)	12/1989 - 01/1992	2
85381-12050	EP8#,NP80	01/1992 - 01/1996	2
85381-30020	EP8#..LHD W(*66)	01/1992 - 05/1994	2
85381-30020	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10221	EP8#,NP80 W(REAR WIPER)	09/1992 - 05/1994	1
85310-20170	EP8#..LHD W(66 & RW) OR COLD SPEC & W(66 & RW)	01/1992 - 09/1992	1
85330-10220	EP8#,NP80 W(REAR WIPER)	12/1989 - 09/1992	1
85310-20210	EP8#..LHD W(*66)	12/1989 - 01/1992	1
85330-12280	EP8#..LHD W(66 & RW) OR COLD SPEC & W(66 & RW)	09/1992 - 12/1992	1
85330-10221	EP81,NP80	05/1994 - 01/1996	1
85330-12280	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85330-12280	EP81..LHD W(*66 & REAR WIPER)	12/1992 - 05/1994	1
85310-20200	EP8#,NP80	12/1989 - 05/1994	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-10190	EP8#..LHD W(*66)	01/1992 - 12/1992	1
85315-10160	EP8#,NP80	12/1989 - 12/1992	1
85315-10190	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85315-10170	EP81,NP80	12/1992 - 01/1996	1
85315-10170	EP8#,NP80..LHD COLD SPEC OR W(REAR WIPER)	01/1992 - 12/1992	1
85315-10190	EP81..LHD W(*66)	12/1992 - 05/1994	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	EP8#,NP80	12/1989 - 01/1996	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-10160	EP8#,NP80	12/1989 - 12/1992	1
85316-10160	EP8#,NP80..LHD COLD SPEC	01/1992 - 12/1992	2
85316-10160	EP8#..LHD COLD SPEC & W(REAR WIPER)	01/1992 - 12/1992	1
85316-10190	EP8#..LHD W(*66)	12/1989 - 10/1993	1
85316-10160	EP81,NP80 W(REAR WIPER)	12/1992 - 10/1993	1
85316-34050	EP81,NP80	10/1993 - 01/1996	1
85316-16070	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85316-10160	EP81,NP80	12/1992 - 10/1993	2
85316-16070	EP81..LHD W(*66)	10/1993 - 05/1994	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	EP8#,NP80	12/1989 - 01/1990	1
85348-14390	EP8#,NP80	01/1992 - 01/1996	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85376-10250	EP8#,NP80	01/1992 - 01/1996	1
85376-10250	EP8#,NP80	12/1989 - 01/1990	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260	EP8#..LHD W(*66)	12/1989 - 05/1994	1
85349-89122	EP8#,NP80	12/1989 - 01/1990	1
85349-89122	EP8#,NP80	01/1992 - 01/1996	1
85375-10260	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001	EP8#,NP80..LHD COLD SPEC	01/1992 - 12/1992	1
90446-07001	EP81,NP80	12/1992 - 05/1994	1
90446-06013	EP8#..LHD L=450,W(*66)	12/1989 - 05/1994	1
90446-06013	EP81..LHD L=450,W(*66) OR W(PS)	05/1994 - 01/1996	1
90446-07001	EP8#,NP80	12/1989 - 12/1992	1
90446-07001	EP81,NP80 W(REAR WIPER)	12/1992 - 05/1994	1
90446-07001	EP81,NP80	05/1994 - 01/1996	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
90446-07001	EP8#..LHD W(*66)	12/1989 - 05/1994	1
90446-07001	EP8#,NP80	12/1989 - 01/1990	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-07001	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
90446-07001	EP8#..LHD W(*66)	12/1989 - 05/1994	1
90446-07001	EP8#,NP80	12/1989 - 01/1990	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-07001	EP81..LHD W(*66) OR W(PS)	05/1994 - 01/1996	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33815	EP8#..LHD H,L=50,W(66)	12/1989 - 01/1990	1
90099-33815	EP8#,NP80 *H,L=50	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33815	EP8#..LHD H,L=50,W(66)	12/1989 - 01/1990	1
90099-33815	EP8#,NP80 *H,L=50	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	01/1992 - 01/1996	1
90446-06013	EP8#,NP80 L=450	12/1989 - 01/1990	1
Common parts
85379-10250
85387-10260
90119-06450
90467-07110
Linked diagrams
8504
