EP81L-AGMSSW (1989)

Toyota Starlet

Production Dec 1989 - Dec 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

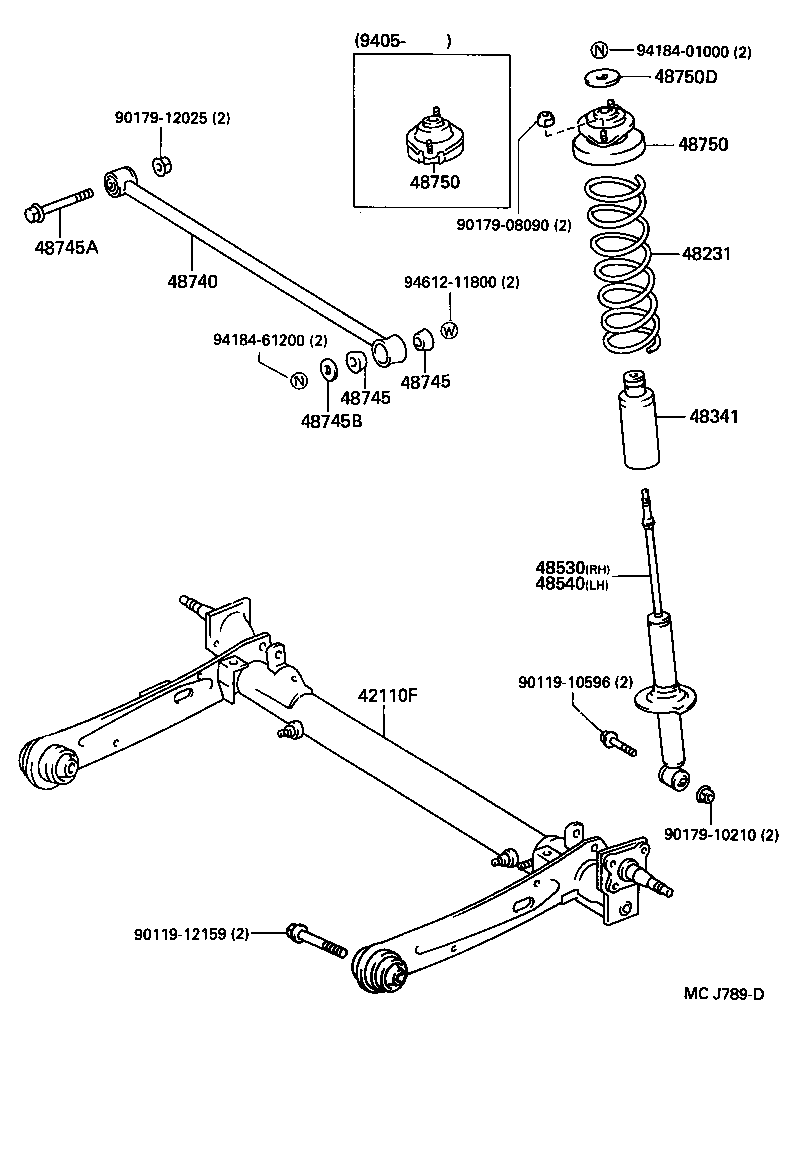

Click highlighted areas on diagram

diagram 42110F 48231 48341 48530 48540 48740 48745 48745 48745A 48745B 48750 48750 48750D 9011910596 9011912159 9017908090 9017910210 9017912025 9418401000 9418461200 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-10090

EP8#..LHD

W(ABS)

 1
42110-10080

EP81,NP80

 1
48231 - SPRING, COIL, REAR
48231-10250

EP8#

 2
48231-10250

EP81..S,SI

 2
48341 - BUMPER, REAR SPRING
48341-10090

EP8#,NP80

 2
48341-10090

EP8#,NP80

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-10120

EP8#,NP80

 1
48530-10120

EP81..S,SI

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-10120

EP8#,NP80

 1
48530-10120

EP81..S,SI

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-10020

EP8#

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18015

EP8#,NP80

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18015

EP8#,NP80

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12070

EP8#,NP80

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EP8#,NP80

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10040

EP8#,NP80

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10040

EP8#,NP80

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP8#,NP80

 2
Common parts
90119-10596
90119-12159
90179-08090
90179-10210
90179-12025
94184-01000
94184-61200
94612-11800
