EP81L-AGMSEC (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)LHD

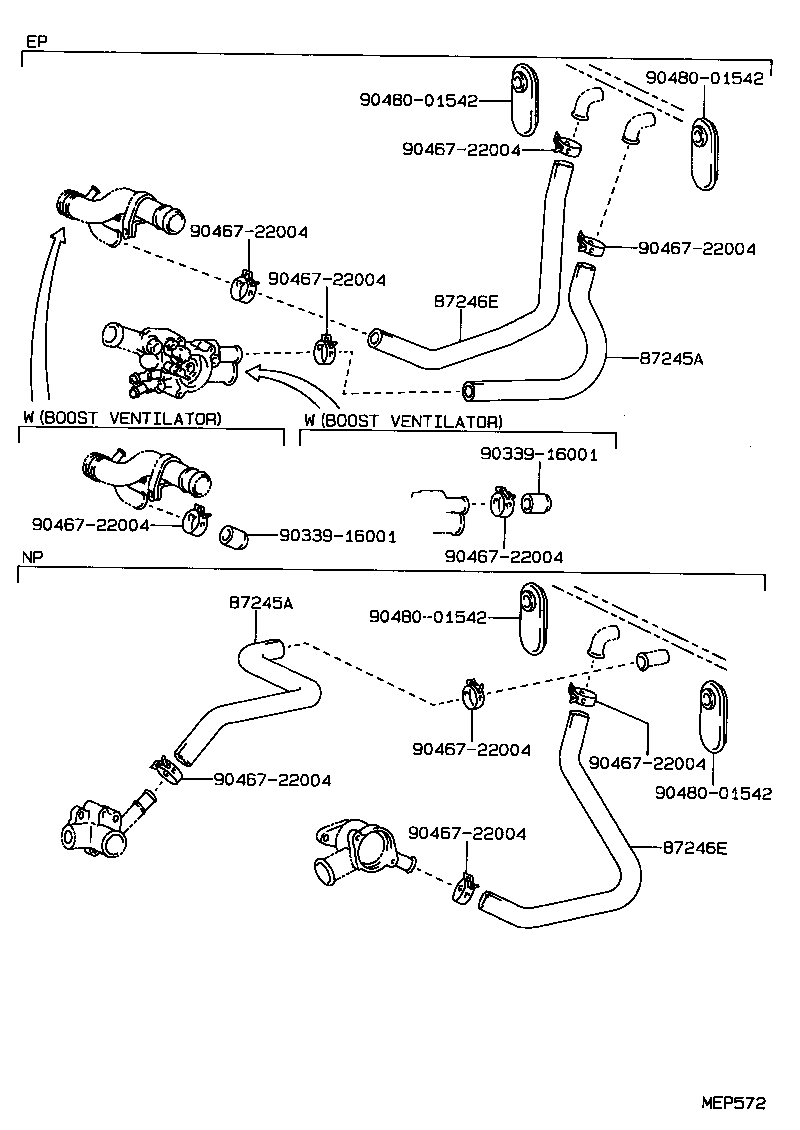

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-10530 |
EP8#..LHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-10530 |
EP8#..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-10540 |
EP8#..LHD |
1 | ||
| 87245-10541 |
EP81..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-10540 |
EP8#..LHD |
1 | ||
| 87245-10541 |
EP81..LHD |
1 | ||
| Common parts | ||||
| 90339-16001 | ||||
| 90467-22004 | ||||
| 90480-01542 | ||||
