EP81L-AGMSEC (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 2EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

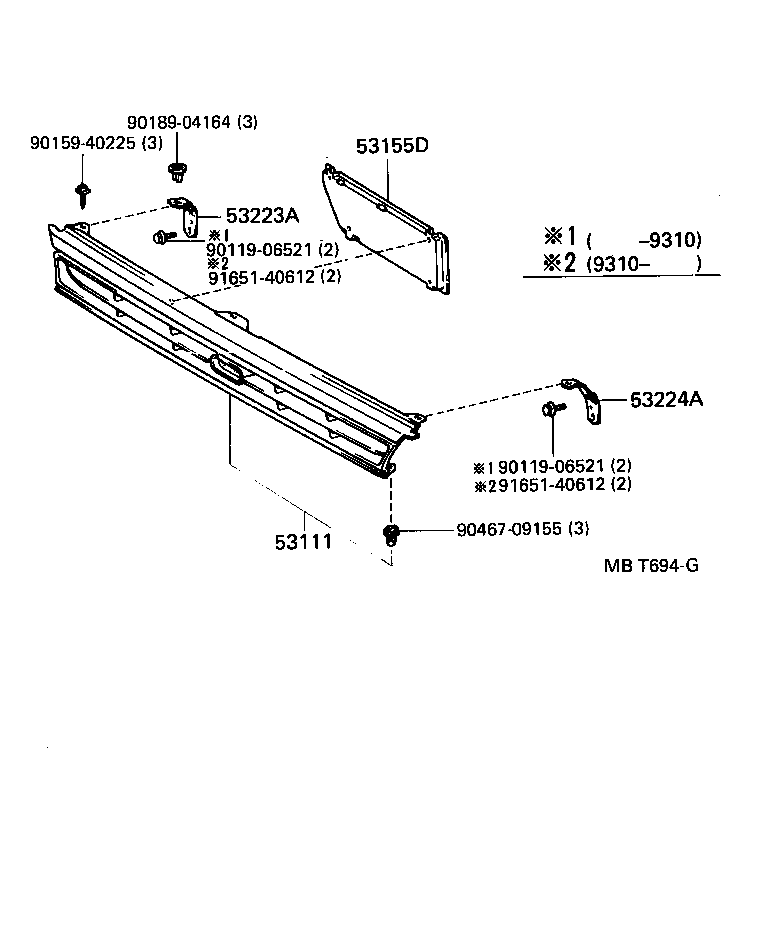

Click highlighted areas on diagram

diagram 53111 53155D 53223A 53224A 9011906521 9011906521 9015940225 9018904164 9046709155 9165140612 9165140612
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-10340

EP8#,NP80

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-10070

EP81..LHD..5F..EFI

SWITZERLAND SPEC

 1
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53223-10100

EP8#,NP80

 1
53224A - BRACKET, RADIATOR GRILLE MOUNTING, NO.2
53224-10070

EP8#,NP80

 1
Common parts
90119-06521
90159-40225
90189-04164
90467-09155
91651-40612
