EP81L-AGMSEC (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

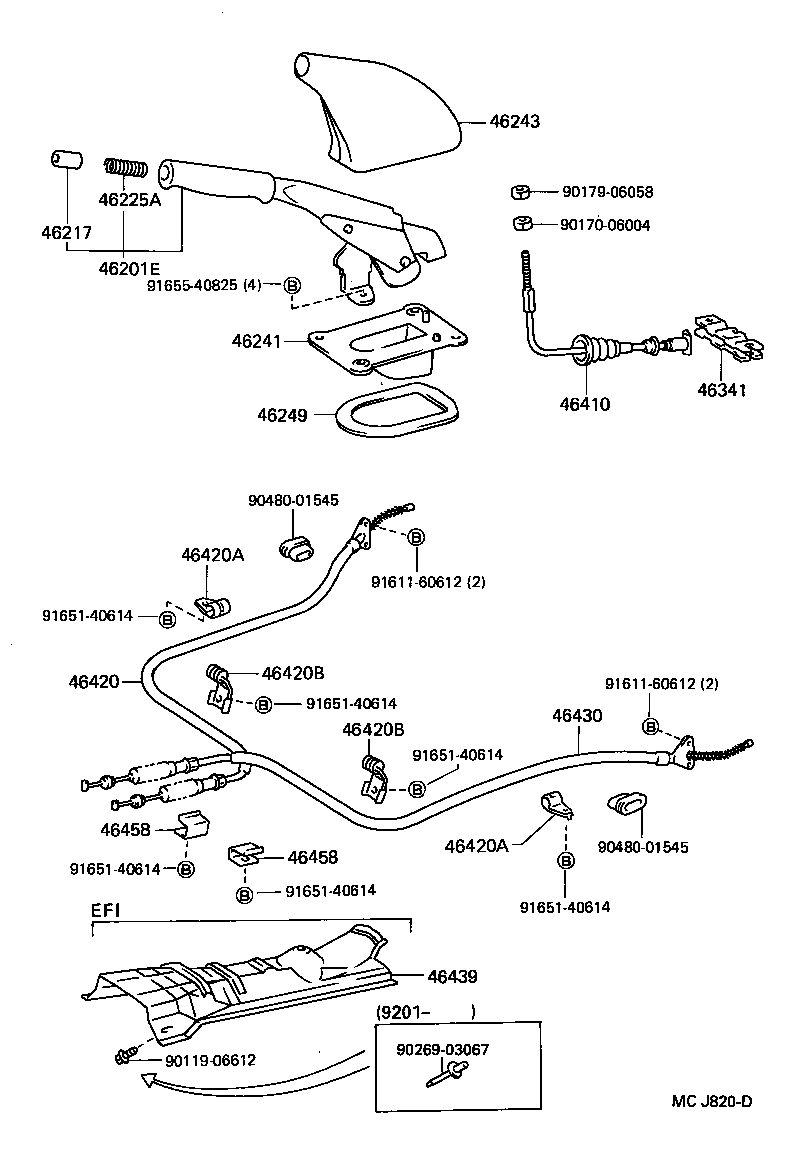

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1606003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 46201-1606014 |
EP8#,NP80 BLUE,TRIM8# |
1 | ||
| 46201-1008004 |
EP8#,NP80 BLUE,TRIM8# |
1 | ||
| 46201-1009003 |
EP81..S,SI GRAY,TRIM1# |
1 | ||
| 46201-1008003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1202003 |
EP8#,NP80 SHADOW GRAY,TRIM1# |
1 | ||
| 46217-12020J1 |
EP8#,NP80 DARK BLUE,TRIM8# |
1 | ||
| 46217-1202024 |
EP8#,NP80 DARK BLUE,TRIM8# |
1 | ||
| 46217-12020B2 |
EP8#,NP80 SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
EP8#,NP80 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-10030 |
EP8#,NP80 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-1004003 |
EP80,NP80;EP81..GLI,S,SI,STD,XL,XLI GRAY,TRIM1# |
1 | ||
| 46243-10041 |
EP81,NP80 |
1 | ||
| 46243-1004004 |
EP80,NP80;EP81..S,SI,STD,XL,XLI BLUE,TRIM8# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
EP8#,NP80 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
EP8#,NP80 |
1 | ||
| 46341-16020 |
EP8#,NP80 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-10080 |
EP8#,NP80 |
1 | ||
| 46410-10100 |
EP8#,NP80 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-10131 |
EP8#,NP80 |
1 | ||
| 46420-10130 |
EP8#,NP80 |
1 | ||
| 46420-10150 |
EP8#,NP80 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EP8#,NP80 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EP8#,NP80 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EP8#,NP80 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EP8#,NP80 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-10120 |
EP8#,NP80 |
1 | ||
| 46430-10100 |
EP8#,NP80 |
1 | ||
| 46430-10101 |
EP8#,NP80 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-10050 |
EP81..EFI |
1 | ||
| 46439-10051 |
EP81 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EP8#,NP80 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
EP8#,NP80 |
2 | ||
| Common parts | ||||
| 90119-06612 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90269-03067 | ||||
| 90480-01545 | ||||
| 91611-60612 | ||||
| 91651-40614 | ||||
| 91655-40825 | ||||
