EP81L-AGMSEC (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9405- )LHD

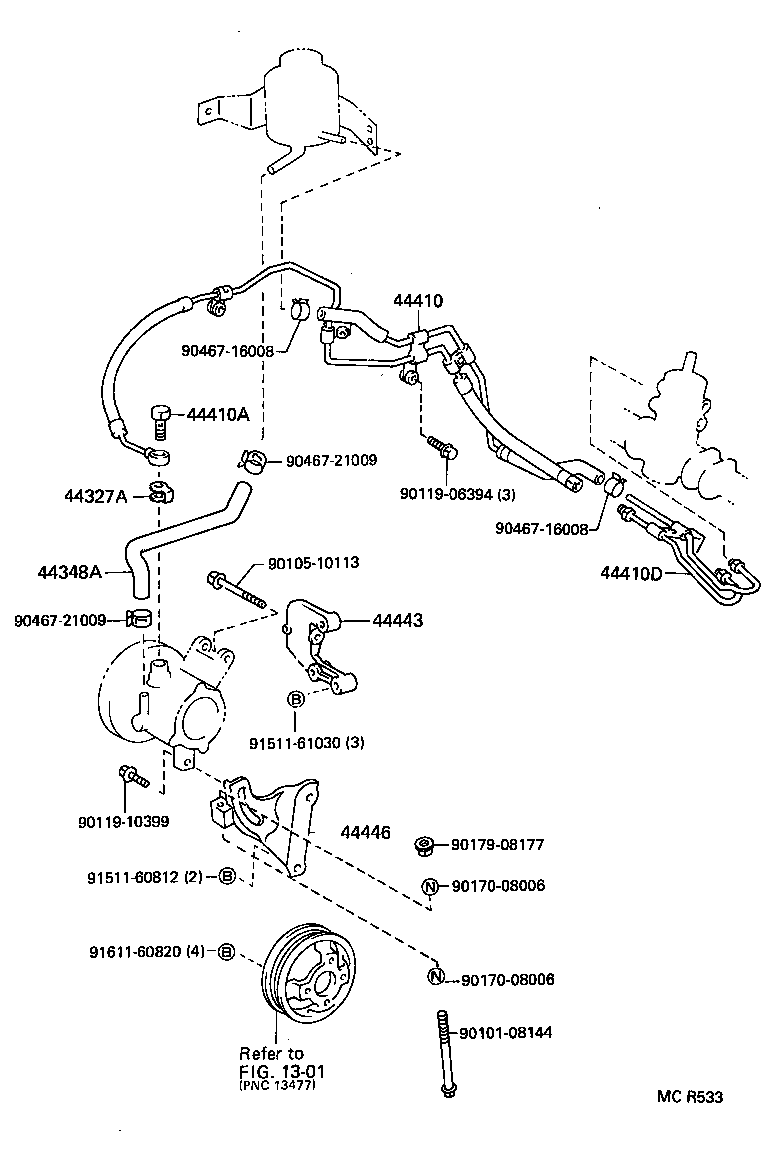

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EP81 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-16100 |
EP81 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-16203 |
EP81..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
EP81 |
1 | ||
| 44410D - TUBE ASSY, PRESSURE FEED, NO.2 | ||||
| 44410-10190 |
EP81..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12070 |
EP81 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16061 |
EP81 |
1 | ||
| Common parts | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06394 | ||||
| 90119-10399 | ||||
| 90170-08006 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21009 | ||||
| 91511-60812 | ||||
| 91511-61030 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 1301 | ||||
