EP81L-AGMSEC (1989)
Toyota Starlet
(8912- )1E,2E#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

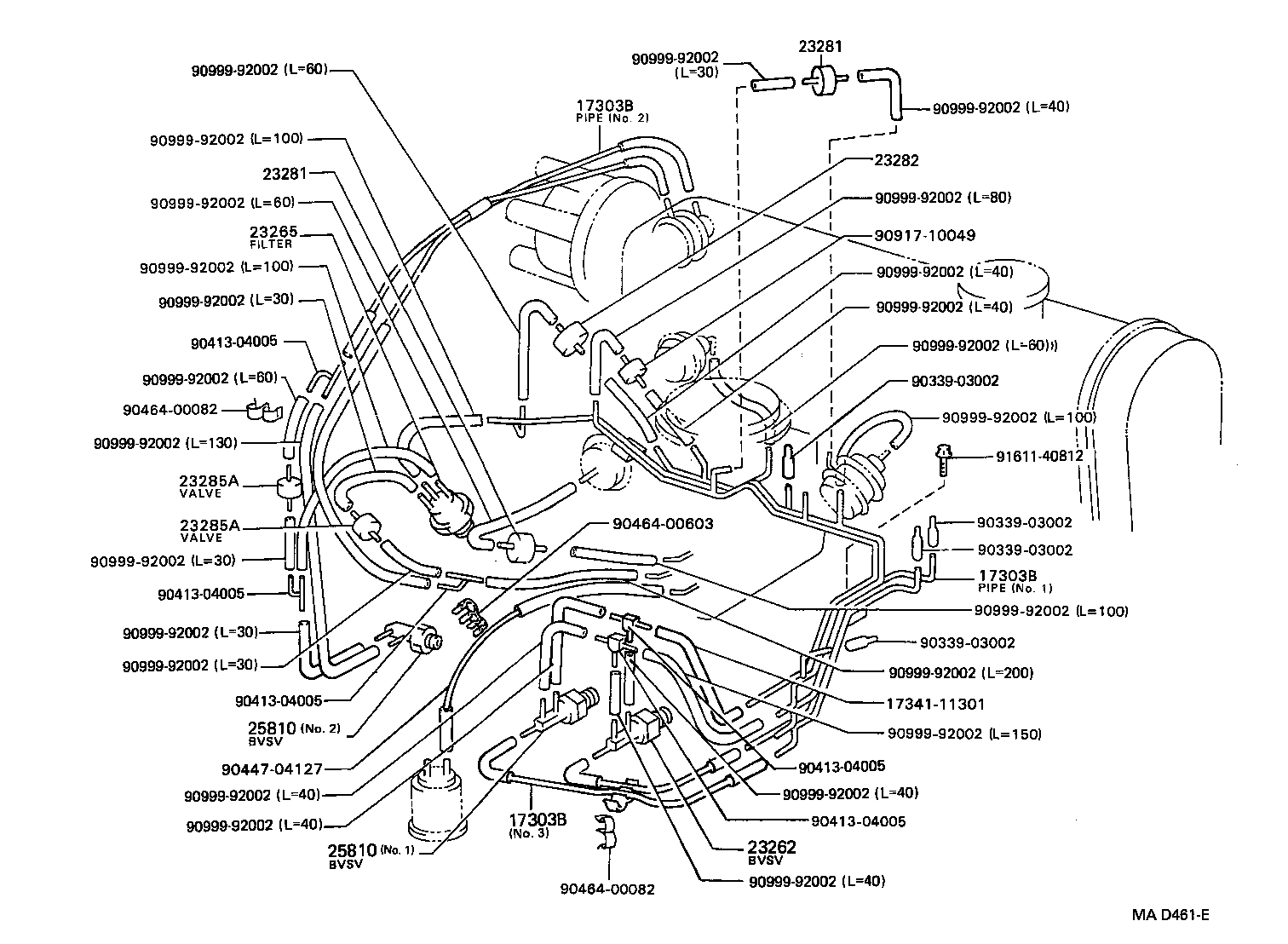

(8912-9212)2E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11440 |
2E..EP81 NO.1 |
1 | ||
| 17303-11570 |
2E..EP81 NO.3 |
1 | ||
| 17303-11560 |
2EE..EP81..3FC,5F |
1 | ||
| 17303-11460 |
2E..EP81 NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11440 |
2E..EP81 NO.1 |
1 | ||
| 17303-11570 |
2E..EP81 NO.3 |
1 | ||
| 17303-11560 |
2EE..EP81..3FC,5F |
1 | ||
| 17303-11460 |
2E..EP81 NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11440 |
2E..EP81 NO.1 |
1 | ||
| 17303-11570 |
2E..EP81 NO.3 |
1 | ||
| 17303-11560 |
2EE..EP81..3FC,5F |
1 | ||
| 17303-11460 |
2E..EP81 NO.2 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-11040 |
2E..EP81 |
1 | ||
| 90925-05068 |
2EE..EP81..3FC,5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
1E,2E..EP8# |
1 | ||
| 90917-11021 |
2EE..EP81..3FC,5F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01101 |
2E..EP81 |
2 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01101 |
2E..EP81 |
2 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01091 |
2E..EP81 NO.2 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EP81 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EP81 |
2 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11070 |
2E..EP81 NO.1 |
1 | ||
| 25810-11080 |
2E..EP81 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11070 |
2E..EP81 NO.1 |
1 | ||
| 25810-11080 |
2E..EP81 NO.2 |
1 | ||
| Common parts | ||||
| 17341-11301 | ||||
| 30917-10049 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90447-04127 | ||||
| 90464-00082 | ||||
| 90464-00603 | ||||
| 90999-92002 | ||||
| 91611-40812 | ||||
| 98999-92002 | ||||

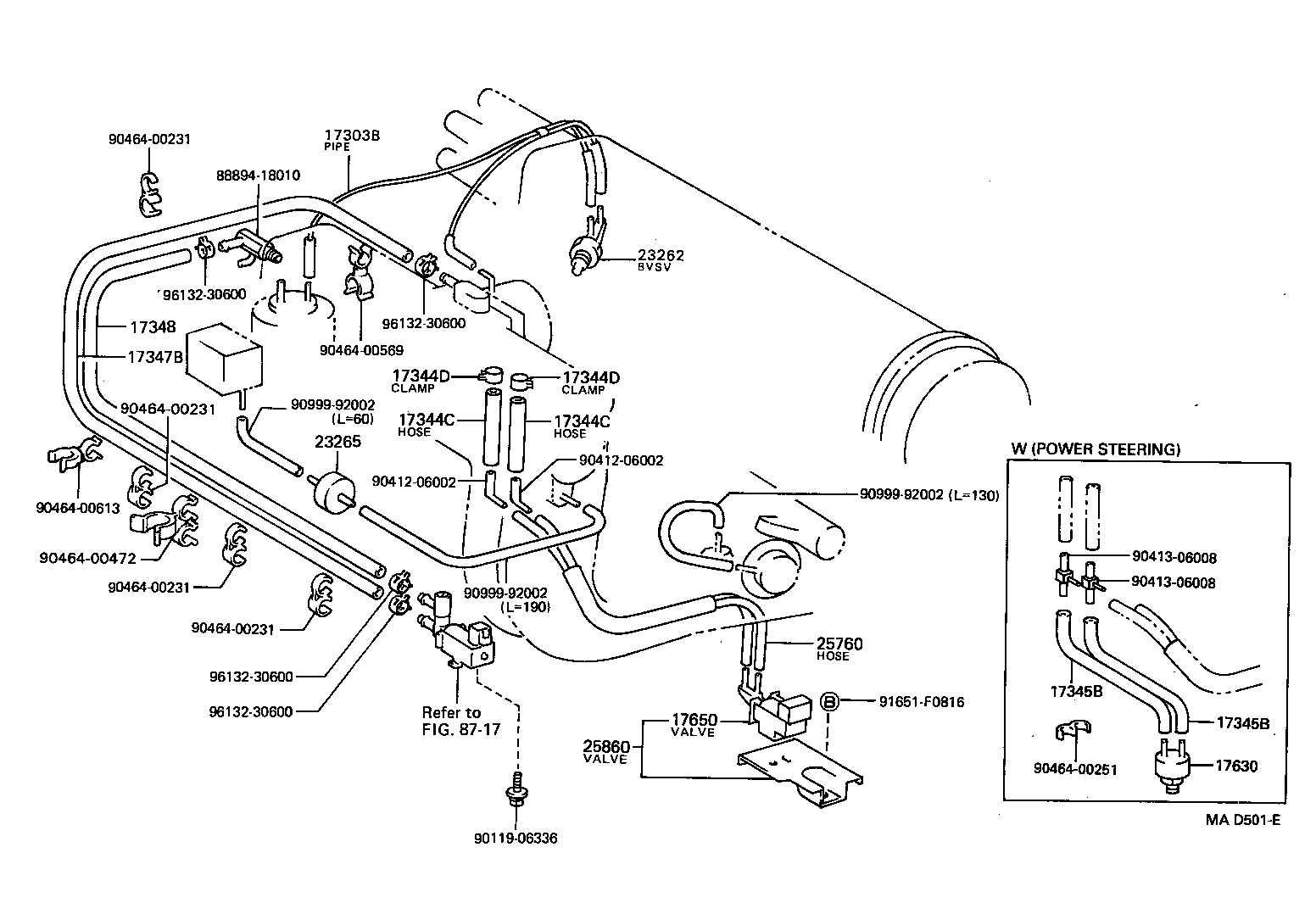

(8912- )2EE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11440 |
2E..EP81 NO.1 |
1 | ||
| 17303-11570 |
2E..EP81 NO.3 |
1 | ||
| 17303-11560 |
2EE..EP81..3FC,5F |
1 | ||
| 17303-11460 |
2E..EP81 NO.2 |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11010 |
2EE..EP81 |
2 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11010 |
2EE..EP81 |
2 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2EE..EP81 |
2 | ||
| 17344D - CLIP, NO.4(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
2EE..EP81 |
2 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17302-11030 |
2EE..EP81..LHD |
1 | ||
| 17345B - HOSE, NO.5(FOR IDLE-UP) | ||||
| 17302-11030 |
2EE..EP81..LHD |
1 | ||
| 17347B - HOSE, AIR, NO.7 | ||||
| 17347-11020 |
2EE..EP81..LHD |
1 | ||
| 17348 - HOSE, AIR, NO.8 | ||||
| 17348-11010 |
2EE..EP81..LHD |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11060 |
2EE..EP81 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12031 |
2EE..EP81 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-11040 |
2E..EP81 |
1 | ||
| 90925-05068 |
2EE..EP81..3FC,5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
1E,2E..EP8# |
1 | ||
| 90917-11021 |
2EE..EP81..3FC,5F |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11021 |
2EE..EP81 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11230 |
2EE..EP81 |
1 | ||
| Common parts | ||||
| 88894-18010 | ||||
| 90119-06336 | ||||
| 90412-06002 | ||||
| 90413-06008 | ||||
| 90464-00231 | ||||
| 90464-00251 | ||||
| 90464-00472 | ||||
| 90464-00569 | ||||
| 90464-00613 | ||||
| 90999-92002 | ||||
| 91651-F0816 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8717 | ||||
