EP81L-AGMREC (1991)

Toyota Starlet

Production Jun 1991 - May 1994
Engine 2EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9212)1E,2E

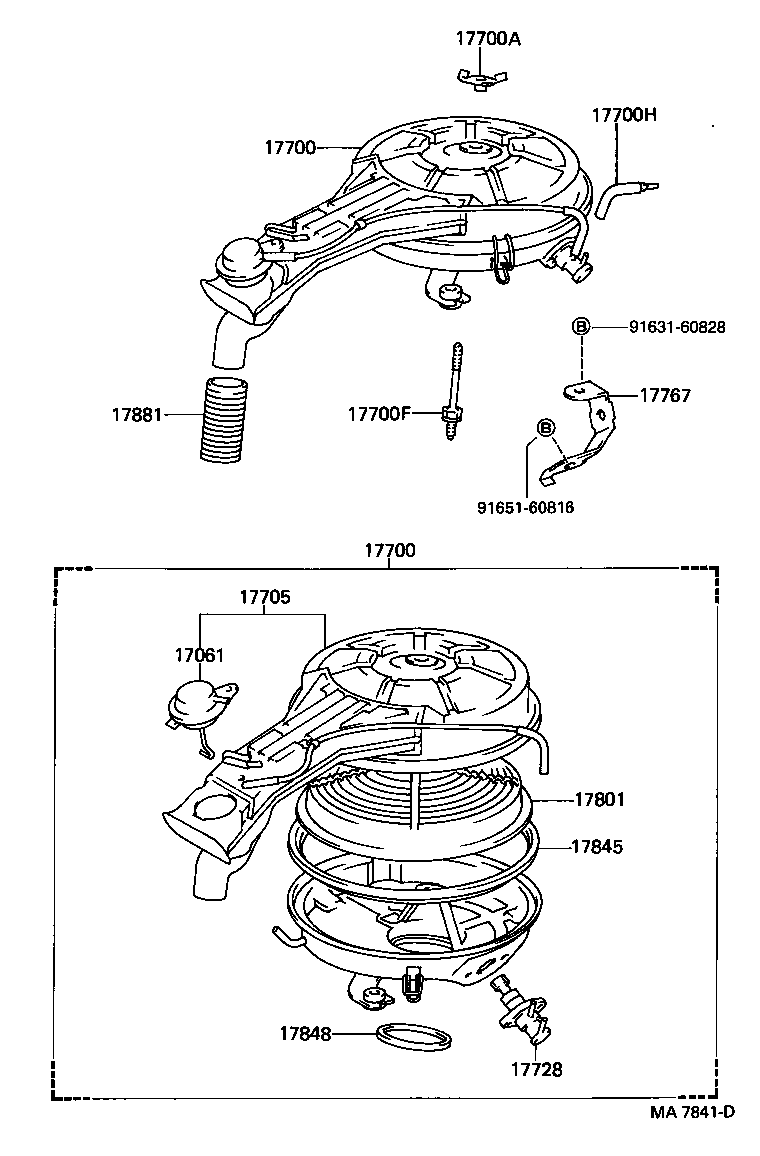

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17700H 17705 17728 17767 17801 17845 17848 17881 9163160828 9165160816
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-10010

1E,2E..EP8#

 1
17700 - CLEANER ASSY, AIR
17700-11631

2EE..EP81..LHD..5F

SWITZERLAND SPEC

 1
17700-11610

2E..EP81

 1
17700 - CLEANER ASSY, AIR
17700-11631

2EE..EP81..LHD..5F

SWITZERLAND SPEC

 1
17700-11610

2E..EP81

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06009

1E,2E..EP8#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

1E,2E..EP8#

 1
17700H - HOSE, AIR
17341-10010

1E,2E..EP8#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11470

2E..EP81

 1
17705-11470

1E,2E..EP8#

 1
17728 - VALVE, THERMOSTATIC
17728-11080

1E,2E..EP8#

 1
17728-11080

2E..EP81

 1
17767 - BRACKET, AIR CLEANER
17771-11020

1E,2E..EP8#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-11100

1E,2E..EP8#

 1
17801-11060

2EE..EP81..3FC,5F

 1
17801-10030

1E,2E..EP8#

 1
17801-10030

2E..EP81

 1
17845 - GASKET, AIR CLEANER CAP
17845-10020

1E,2E..EP8#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-10021

1E,2E..EP8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-10032

1E,2E..EP8#

 1
17881-11230

2EE..EP81..3FC,5F

 1
17881-10033

1E,2E..EP8#

 1
Common parts
91631-60828
91651-60816
