EP81L-AGKNSW (1989)
Toyota Starlet

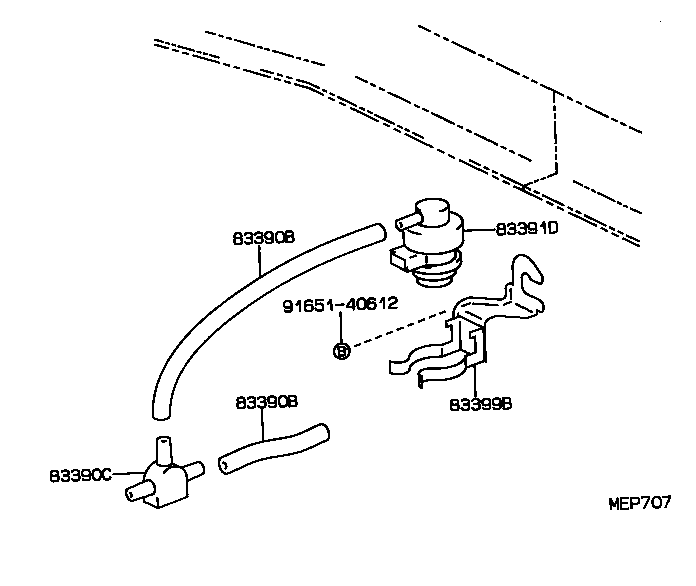

ILLUST NO. 3 OF 4(8912-9201)CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390B - HOSE, VACUUM(FOR ECONOMETER) | ||||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 83390B - HOSE, VACUUM(FOR ECONOMETER) | ||||
| 90999-92002 |
EP8#..LHD..CBR *H,L=300 |
1 | ||
| 83391D - SWITCH, VACUUM | ||||
| 83391-20060 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,S,SI,STD,XL) |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-10040 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
ILLUST NO. 4 OF 4(8912-9601)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-1018003 |
EP8#,NP80..LHD..(GL,S,SI,XL,XLI) GRAY,TRIM1# |
1 | ||
| 83910-1018004 |
EP8#,NP80..LHD..(GL,S,SI,XL,XLI) BLUE,TRIM8# |
1 | ||
ILLUST NO. 1 OF 4(8912-9601)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP81..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
1 | ||
| 90981-11018 |
NP80;EP8#..S,SI,STD,XLI 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP81..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
1 | ||
| 90981-11018 |
NP80;EP8#..S,SI,STD,XLI 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-10150 |
EP81..LHD..(GL,XL) W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER) |
1 | ||
| 83149-10150 |
EP81..S W(ECONO METER) |
1 | ||
| 83149-10350 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83149-10130 |
EP81..S |
1 | ||
| 83149-10130 |
EP81..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83149-10370 |
EP8#..LHD..(GL,XL) W(*66 & ECONO METER) |
1 | ||
| 83149-10390 |
EP8#..LHD..(GL,XL) |
1 | ||
| 83149-10410 |
EP8#..LHD..(GL,XL) W(ECONO METER) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-20010 |
EP8#,NP80..GL,STD,XL,XLI 14V 1.4W,BLUE CAP |
2 | ||
| 83109-10010 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL) 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-16010 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL) 14V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
EP81..LHD..(GL,XL) 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-14030 |
EP81..LHD..(GL,XL) 12V 3.4W,AMBER CAP |
4 | ||
| 83109-14030 |
EP81..S 12V 3.4W,AMBER CAP |
4 | ||
| 83109-24020 |
EP81..S 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10890 |
EP8#..LHD..(GL,XL) |
1 | ||
| 83110-1C030 |
EP81..S |
1 | ||
| 83110-1C030 |
EP81..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1C210 |
EP8#..GL,XL |
1 | ||
| 83132-1C230 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83132-1C070 |
EP81..S,SI |
1 | ||
| 83132-1C070 |
EP81..LHD..(GL,XL) W(*66 & TACHOMETER) OR W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10790 |
EP81..S,SI |
1 | ||
| 83133-10830 |
EP8#,NP80..GL,STD,XL,XLI |
1 | ||
| 83133-10790 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-10470 |
NP80;EP8#..GL,XL,XLI |
1 | ||
| 83138-10430 |
EP81..S,SI |
1 | ||
| 83138-10430 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-30830 |
EP8#..GL,STD,XL,XLI |
5 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-30830 |
EP8#..GL,STD,XL,XLI |
5 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-10430 |
EP81..S,SI |
1 | ||
| 83243-10550 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) W(*66 & ECONO METER) |
1 | ||
| 83243-10490 |
EP8#..GL,XL |
1 | ||
| 83243-10530 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83243-10570 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) W(ECONO METER) |
1 | ||
| 83243-10430 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10250 |
EP81..S,SI |
1 | ||
| 83244-10270 |
EP8#..GL,STD,XL,XLI |
1 | ||
| 83244-10250 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-1E720 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL) |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90149-50032 | ||||
| 90167-50002 | ||||
| 93540-14020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 1 OF 4(8912-9601)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP81..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
1 | ||
| 90981-11018 |
NP80;EP8#..S,SI,STD,XLI 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EP81..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
5 | ||
| 99132-12034 |
EP81..LHD..(GL,XL) 12V 3.4W |
1 | ||
| 90981-11018 |
NP80;EP8#..S,SI,STD,XLI 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
EP81..S 12V 3.4W |
1 | ||
| 90981-11018 |
EP8#..LHD..(GL,XL) 12V 1.2W W/O SOCKET |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP81..LHD..(GL,XL) BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..S BULB:12V 1.4W |
10 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
10 | ||
| 83101-14030 |
EP8#,NP80..GL,STD,XL,XLI BULB:12V 3.4W |
2 | ||
| 83101-14030 |
EP81..S,SI BULB:12V 3.4W |
5 | ||
| 83101-14040 |
EP81..LHD..(GL,XL) BULB:12V 1.4W |
11 | ||
| 83101-14040 |
NP80;EP81..S,SI,STD,XLI BULB:12V 1.4W |
11 | ||
| 83101-14040 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) BULB:12V 1.4W |
13 | ||
| 83101-14040 |
EP8#..LHD..(GL,XL) BULB:12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83149-10150 |
EP81..LHD..(GL,XL) W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER) |
1 | ||
| 83149-10150 |
EP81..S W(ECONO METER) |
1 | ||
| 83149-10350 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83149-10130 |
EP81..S |
1 | ||
| 83149-10130 |
EP81..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83149-10370 |
EP8#..LHD..(GL,XL) W(*66 & ECONO METER) |
1 | ||
| 83149-10390 |
EP8#..LHD..(GL,XL) |
1 | ||
| 83149-10410 |
EP8#..LHD..(GL,XL) W(ECONO METER) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-20010 |
EP8#,NP80..GL,STD,XL,XLI 14V 1.4W,BLUE CAP |
2 | ||
| 83109-10010 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL) 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-16010 |
EP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL) 14V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
EP81..LHD..(GL,XL) 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-14030 |
EP81..LHD..(GL,XL) 12V 3.4W,AMBER CAP |
4 | ||
| 83109-14030 |
EP81..S 12V 3.4W,AMBER CAP |
4 | ||
| 83109-24020 |
EP81..S 12V3.4W W(GREEN CAP) |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-10890 |
EP8#..LHD..(GL,XL) |
1 | ||
| 83110-1C030 |
EP81..S |
1 | ||
| 83110-1C030 |
EP81..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1C210 |
EP8#..GL,XL |
1 | ||
| 83132-1C230 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83132-1C070 |
EP81..S,SI |
1 | ||
| 83132-1C070 |
EP81..LHD..(GL,XL) W(*66 & TACHOMETER) OR W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10790 |
EP81..S,SI |
1 | ||
| 83133-10830 |
EP8#,NP80..GL,STD,XL,XLI |
1 | ||
| 83133-10790 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-10470 |
NP80;EP8#..GL,XL,XLI |
1 | ||
| 83138-10430 |
EP81..S,SI |
1 | ||
| 83138-10430 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10690 |
EP81..S W(ECONO METER) |
1 | ||
| 83242-10670 |
EP81..LHD..(GL,XL) W(TACHOMETER) |
1 | ||
| 83242-10670 |
EP81..S |
1 | ||
| 83242-10690 |
EP81..LHD..(GL,XL) W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-10430 |
EP81..S,SI |
1 | ||
| 83243-10550 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) W(*66 & ECONO METER) |
1 | ||
| 83243-10490 |
EP8#..GL,XL |
1 | ||
| 83243-10530 |
EP8#..LHD..(GL,XL) W(*66) |
1 | ||
| 83243-10570 |
EP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL) W(ECONO METER) |
1 | ||
| 83243-10430 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10250 |
EP81..S,SI |
1 | ||
| 83244-10270 |
EP8#..GL,STD,XL,XLI |
1 | ||
| 83244-10250 |
EP81..LHD..(GL,XL,XLI) W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00227 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00944 | ||||
| 90099-00952 | ||||
| 90099-00953 | ||||
| 90149-50032 | ||||
| 90167-50002 | ||||
| 93540-14020 | ||||

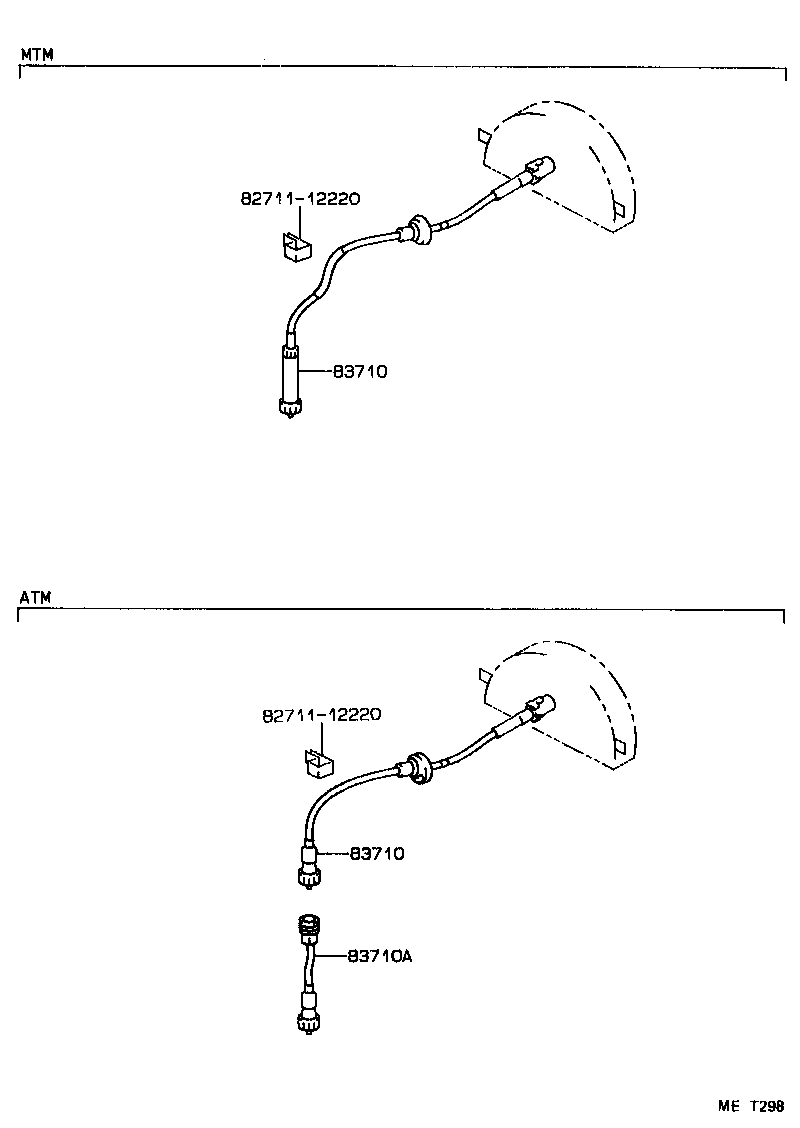

ILLUST NO. 2 OF 4(8912-9601)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10350 |
EP8#,NP80..LHD..MTM..(CBR,DSL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10350 |
EP8#,NP80..LHD..MTM..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 82711-12220 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
