EP81L-AGKNSW (1989)
Toyota Starlet
Production
Dec 1989
-
Jul 1990
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

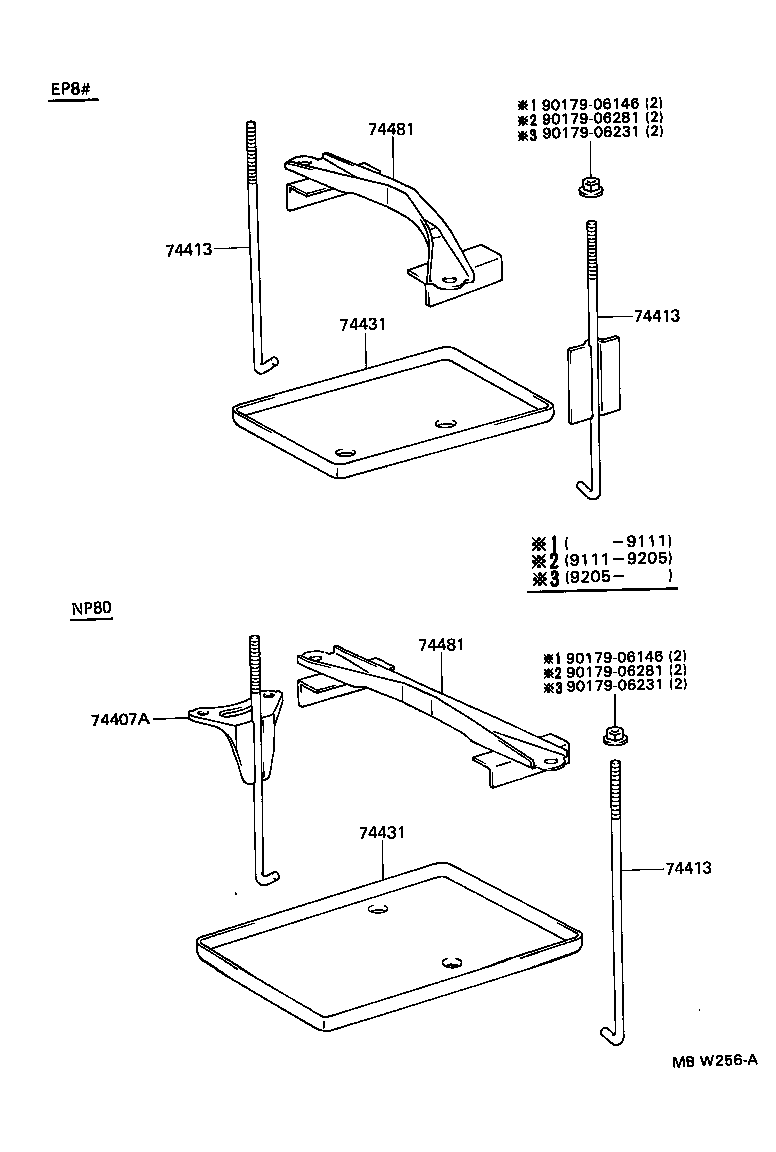

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-20060 |
EP8#..CBR L=210 |
1 | ||
| 74451-10041 |
EP8#..CBR L=236 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-20060 |
EP8#..CBR L=210 |
1 | ||
| 74451-10041 |
EP8#..CBR L=236 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-20060 |
EP8#..CBR L=210 |
1 | ||
| 74451-10041 |
EP8#..CBR L=236 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-10090 |
EP8#..CBR W(50D20L BATTERY) |
1 | ||
| 74431-10050 |
EP81..MTM..XLI;EP8#..GL,GLI,S,SI,STD,XL |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-10090 |
EP8#..CBR W(50D20L BATTERY) |
1 | ||
| 74431-10050 |
EP81..MTM..XLI;EP8#..GL,GLI,S,SI,STD,XL |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-10180 |
EP8#..CBR |
1 | ||
| 74404-10140 |
EP8#..CBR W(50D20L BATTERY) |
1 | ||
| 74404-10130 |
EP8#..CBR W(32C24R BATTERY) |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-10140 |
EP8#..CBR W(50D20L BATTERY) |
1 | ||
| 74404-10130 |
EP8#..CBR W(32C24R BATTERY) |
1 | ||
| 74404-10180 |
EP8#..CBR |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| 90179-06231 | ||||
| 90179-06281 | ||||
