EP81L-AGKNEC (1989)

Toyota Starlet

Production Dec 1989 - Jul 1990
Engine 2EE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )LHD..EFI

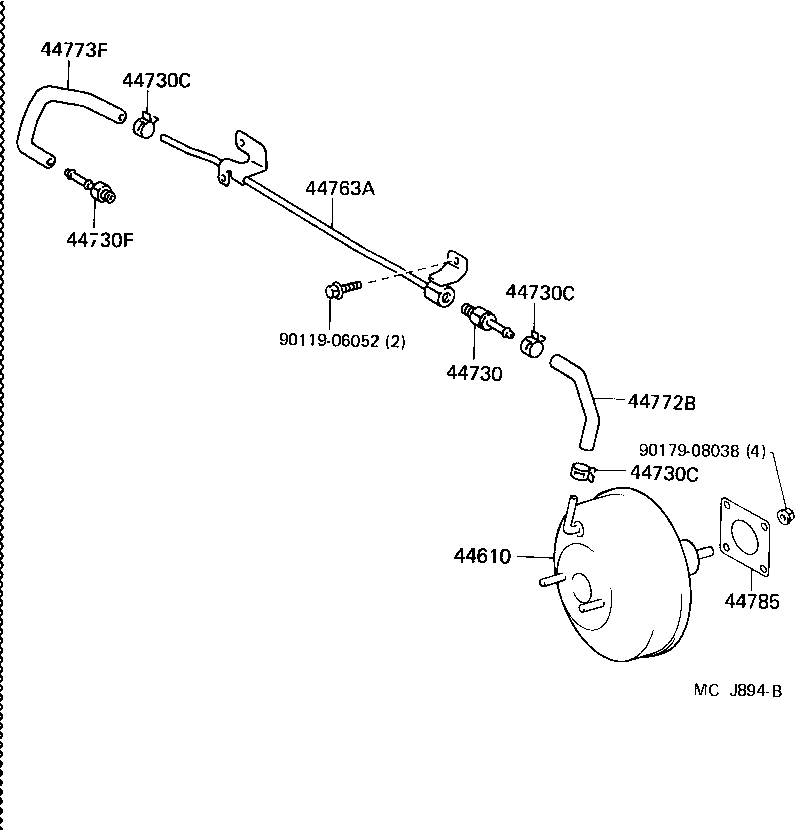

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730F 44763A 44772B 44773F 44785 9011906052 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-10250

EP8#..LHD

W(ABS)

 1
44610-10210

EP81,NP80..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24010

EP81..LHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP8#

 3
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

EP80;EP81..LHD..EFI

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-10020

EP81..LHD..EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10170

EP81..LHD..EFI

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-10240

EP81..LHD..EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-10020

EP8#,NP80

 1
Common parts
90119-06052
90179-08038
