EP81L-AGKNEC (1989)

Toyota Starlet

Production Dec 1989 - Jul 1990
Engine 2EE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9212)1E,2E# ; (9212- )2EE

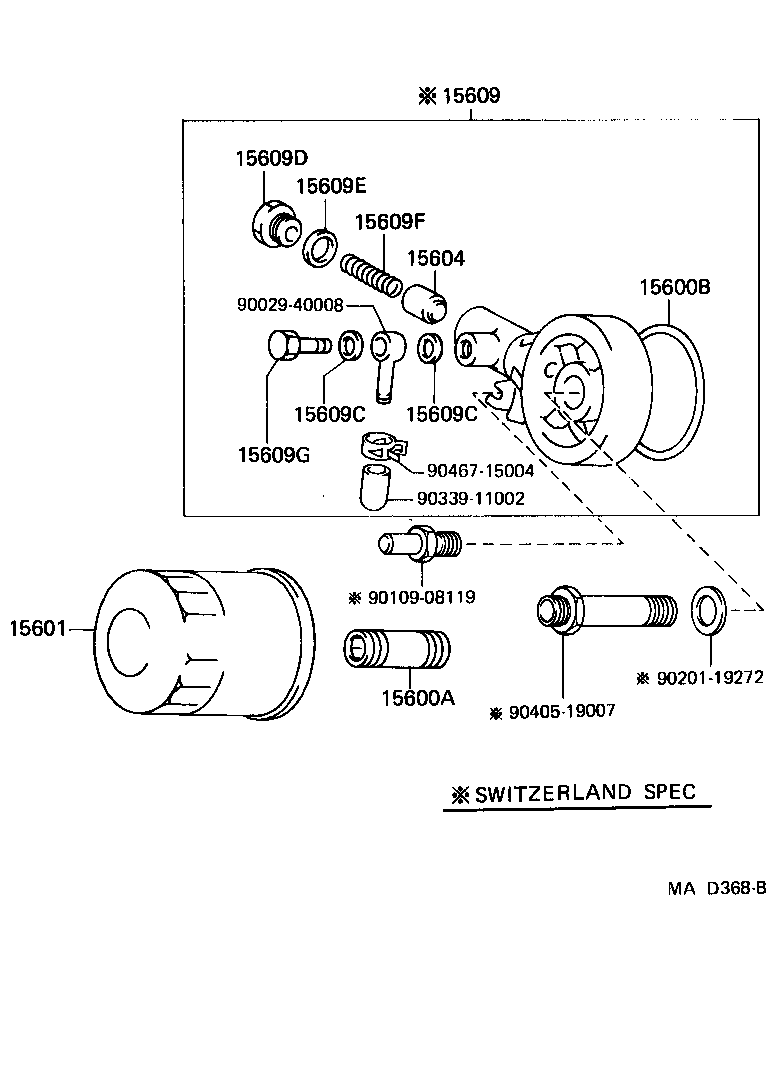

Click highlighted areas on diagram

diagram 15600A 15600B 15601 15604 15609 15609C 15609C 15609D 15609E 15609F 15609G 9002940008 9010908119 9020119272 9033911002 9040519007 9046715004
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19007

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15601 - FILTER SUB-ASSY, OIL
90915-03001

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
Common parts
90029-40008
90109-08119
90201-19272
90339-11002
90405-19007
90467-15004
