EP81L-AGHNSW (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1992
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
(8912-9201)
Click highlighted areas on diagram

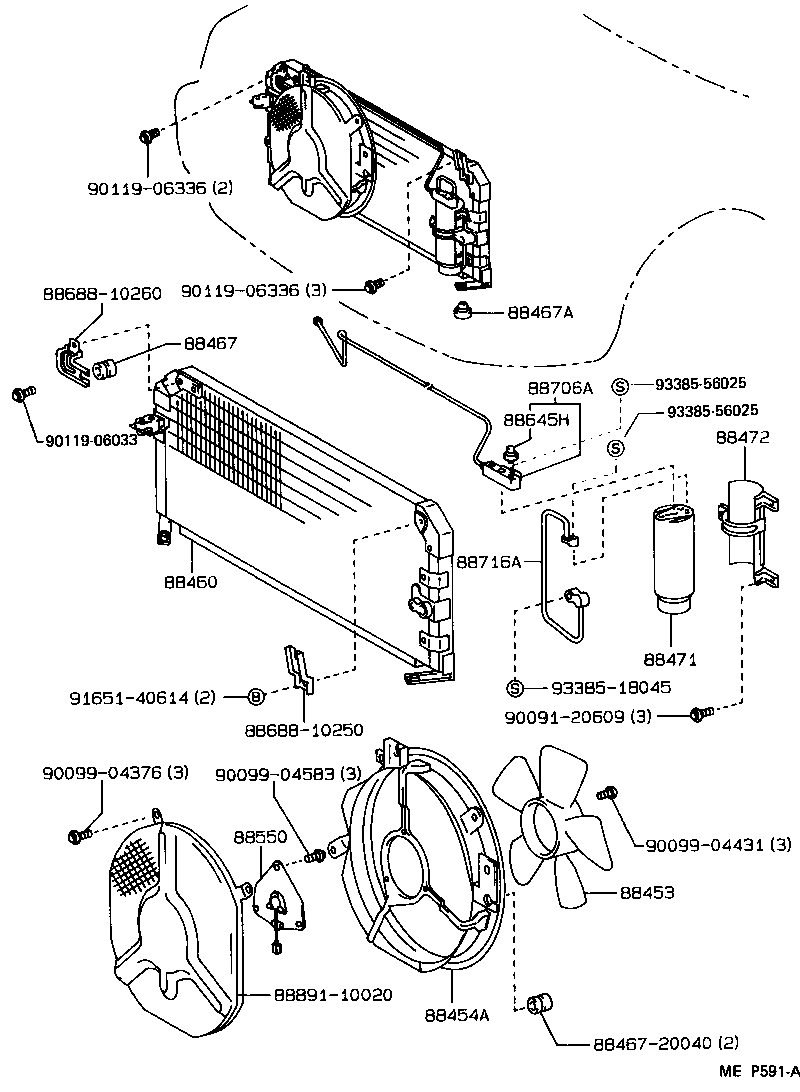

PIPING(1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10020 |
EP8#..LHD..CBR |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-10070 |
EP8#..LHD..CBR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10160 |
EP8#..LHD..CBR |
1 | ||
| 88460-10170 |
EP8#..LHD..CBR |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-10030 |
EP8#..LHD..CBR |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EP8#..LHD..CBR |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
EP8#..LHD..CBR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10170 |
EP8#..LHD..CBR |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10050 |
EP8#..LHD..CBR |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EP8#..LHD..CBR |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-10020 |
EP8#..LHD..CBR |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10510 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 88467-20040 | ||||
| 88688-10250 | ||||
| 88688-10260 | ||||
| 88891-10020 | ||||
| 90091-20609 | ||||
| 90099-04376 | ||||
| 90099-04431 | ||||
| 90099-04583 | ||||
| 90119-06033 | ||||
| 90119-06336 | ||||
| 91651-40614 | ||||
| 93385-18045 | ||||
| 93385-56025 | ||||
(8912-9201)
Click highlighted areas on diagram

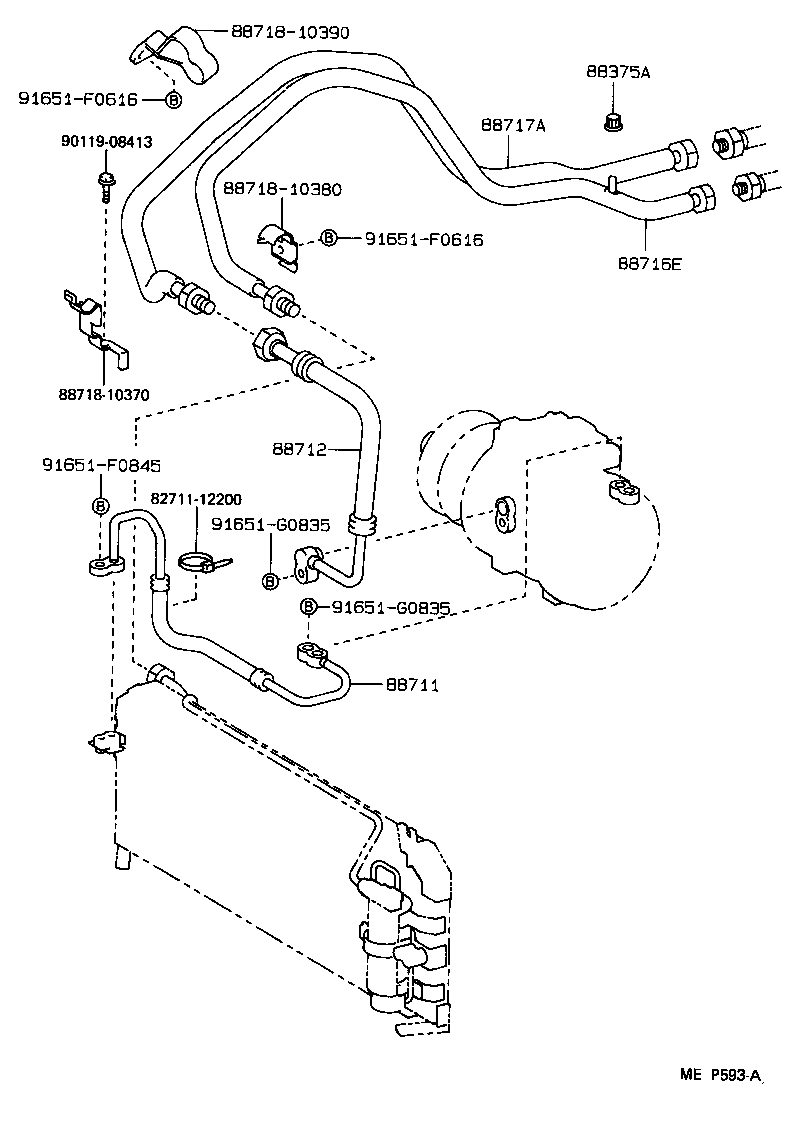

PIPING(2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
EP8#..LHD..CBR |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10140 |
EP8#..LHD..CBR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10150 |
EP8#..LHD..CBR |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10500 |
EP8#..LHD..CBR |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-10210 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88718-10370 | ||||
| 88718-10380 | ||||
| 88718-10390 | ||||
| 90119-08413 | ||||
| 91651-F0616 | ||||
| 91651-F0845 | ||||
| 91651-G0835 | ||||
