EP81L-AGHNEC (1991)

Toyota Starlet

Production Jun 1991 - Jan 1996
Engine 2EE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9601)

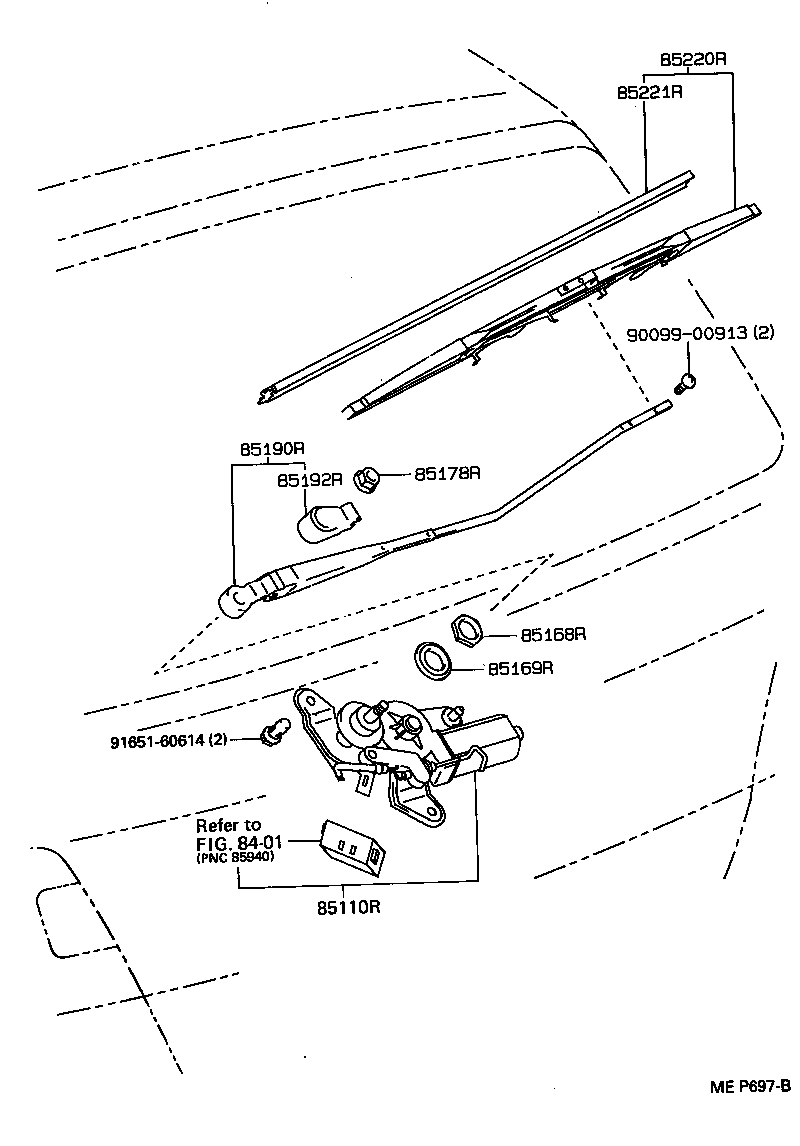

Click highlighted areas on diagram

diagram 8401 85110R 85168R 85169R 85178R 85190R 85192R 85220R 85221R 9009900913 9165160614
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-10330

EP8#,NP80

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

EP8#,NP80

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-10210

EP8#,NP80

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

EP8#,NP80

 1
85190R - ARM ASSY, REAR WIPER
85241-10010

EP8#,NP80

 1
85192R - COVER, REAR WIPER ARM
85192-13060

EP8#,NP80

 1
85220R - BLADE ASSY, REAR WIPER
85242-10010

EP8#,NP80

 1
85221R - BLADE, REAR WIPER
85243-10010

EP8#,NP80

 1
Common parts
90099-00913
91651-60614
Linked diagrams
8401
