EP81L-AGHNEC (1991)
Toyota Starlet
Production
Jun 1991
-
Jan 1996
Engine
2EE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9212)1E,2E# ; (9212- )2EE

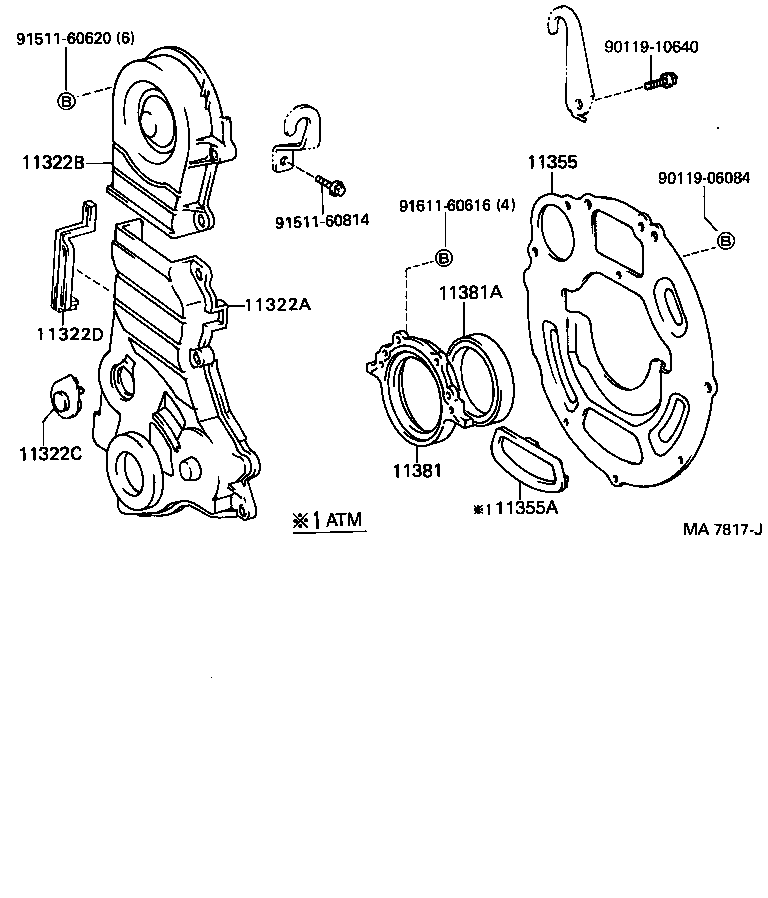

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-11072 |
2EE..EP81 |
1 | ||
| 11302-11070 |
2E..EP81;2EE..EP81..3FC,5F |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11303-10023 |
2EE..EP81 |
1 | ||
| 11303-10022 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 11322C - COVER, TIMING BELT, NO.3 | ||||
| 11323-10011 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-11040 |
2E..EP81;2EE..EP81..3FC,5F |
1 | ||
| 11328-11041 |
2EE..EP81 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-11011 |
2E#..EP81..3FC |
1 | ||
| 11355A - PLUG, HOLE(FOR REAR END PLATE) | ||||
| 90950-01548 |
2E#..EP81..3FC |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-10021 |
2EE..EP81 |
1 | ||
| 11381-10020 |
1E,2E..EP8#;2EE..EP81..3FC,5F |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-75004 |
1E,2E..EP8#;2EE..EP81..5F |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90119-10640 | ||||
| 91511-60620 | ||||
| 91511-60814 | ||||
| 91611-60616 | ||||
