EP80R-AGKNSW (1989)
Toyota Starlet
ILLUST NO. 1 OF 4(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-10020 |
EP8#,NP80 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10170 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(CANVASTOP & W/O SPOILER) & W(REAR WINDOW WIPER) |
1 | ||
| 63111-10140 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63111-10900 |
EP8#..GL,GLI,S,SI,XL,XLI W(MOON ROOF) |
1 | ||
| 63111-10100 |
EP8#,NP80 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10170 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(CANVASTOP & W/O SPOILER) & W(REAR WINDOW WIPER) |
1 | ||
| 63111-10140 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63111-10900 |
EP8#..GL,GLI,S,SI,XL,XLI W(MOON ROOF) |
1 | ||
| 63111-10100 |
EP8#,NP80 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10090 |
EP8#,NP80 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10090 |
EP8#,NP80 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-10030 |
EP8#,NP80 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-10030 |
EP8#,NP80 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-10060 |
EP8#,NP80 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-10020 |
EP8#,NP80 |
1 | ||

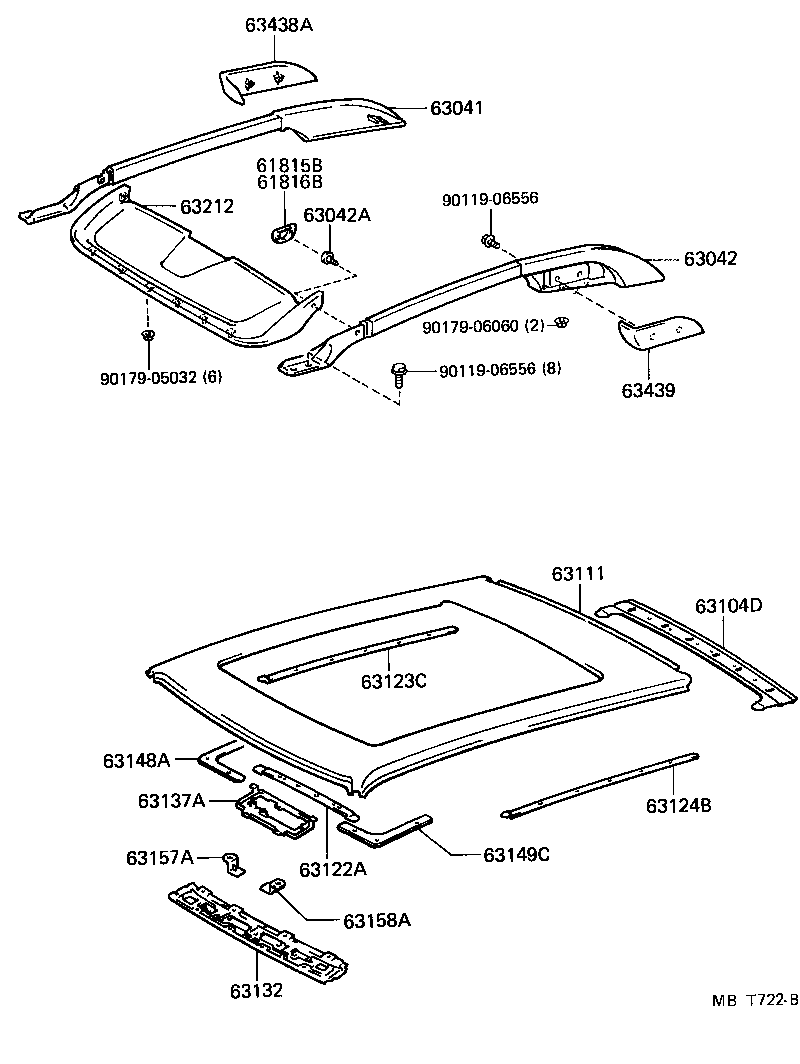

ILLUST NO. 3 OF 4(8912-9405)
W(CANVASTOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 61815-1001008 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER WHITE,040 |
1 | ||
| 61815-1001002 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER RED,3E5 |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61815-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 61815-1001002 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER RED,3E5 |
1 | ||
| 61815-1001008 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER WHITE,040 |
1 | ||
| 63041 - LEG SUB-ASSY, ROOF RACK, FRONT RH | ||||
| 63041-1001002 |
EP8#..3D..(GL,S,SI,XL,XLI) SUPER RED 2,3E5 |
1 | ||
| 63041-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 63041-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,186 ,541 ,8H1 |
1 | ||
| 63041-1001008 |
EP8#..3D..(GL,S,SI,XL,XLI) SUPER WHITE 2,040 |
1 | ||
| 63041-1002003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUIH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 63042 - LEG SUB-ASSY, ROOF RACK, FRONT LH | ||||
| 63042-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 63042-1001008 |
EP8#..3D..(GL,S,SI,XL,XLI) SUPER WHITE 2,040 |
1 | ||
| 63042-1001002 |
EP8#..3D..(GL,S,SI,XL,XLI) SUPER RED 2,3E5 |
1 | ||
| 63042-1001003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,186 ,541 ,8H1 |
1 | ||
| 63042-1002003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 63042A - BOLT | ||||
| 90109-0506803 |
EP8#..3D..(GL,S,SI,XL,XLI) SILVER,040 ,185 ,186 ,3E5 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
2 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10170 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(CANVASTOP & W/O SPOILER) & W(REAR WINDOW WIPER) |
1 | ||
| 63111-10140 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63111-10900 |
EP8#..GL,GLI,S,SI,XL,XLI W(MOON ROOF) |
1 | ||
| 63111-10100 |
EP8#,NP80 |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63124B - REINFORCEMENT, ROOF PANEL, FRONT LH | ||||
| 63124-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10090 |
EP8#,NP80 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-10030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63149C - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63157A - REINFORCEMENT, WIND SHIELD HEADER PANEL SIDE, RH | ||||
| 63157-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63158A - REINFORCEMENT, WIND SHIELD HEADER PANEL SIDE, LH | ||||
| 63158-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63212 - PANEL, ROOF WIND DEFLECTOR | ||||
| 63212-1003003 |
EP8#..3D..(GL,S,SI,XL,XLI) BLUISH GRAY M,185 ,186 ,3H4 ,4L5 ,541 ,6L2 ,8G9 ,8H1 |
1 | ||
| 63212-1003002 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER RED 2,3E5 |
1 | ||
| 63212-1003008 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) SUPER WHITE 2,040 |
1 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| Common parts | ||||
| 90119-06556 | ||||
| 90179-05032 | ||||
| 90179-06060 | ||||

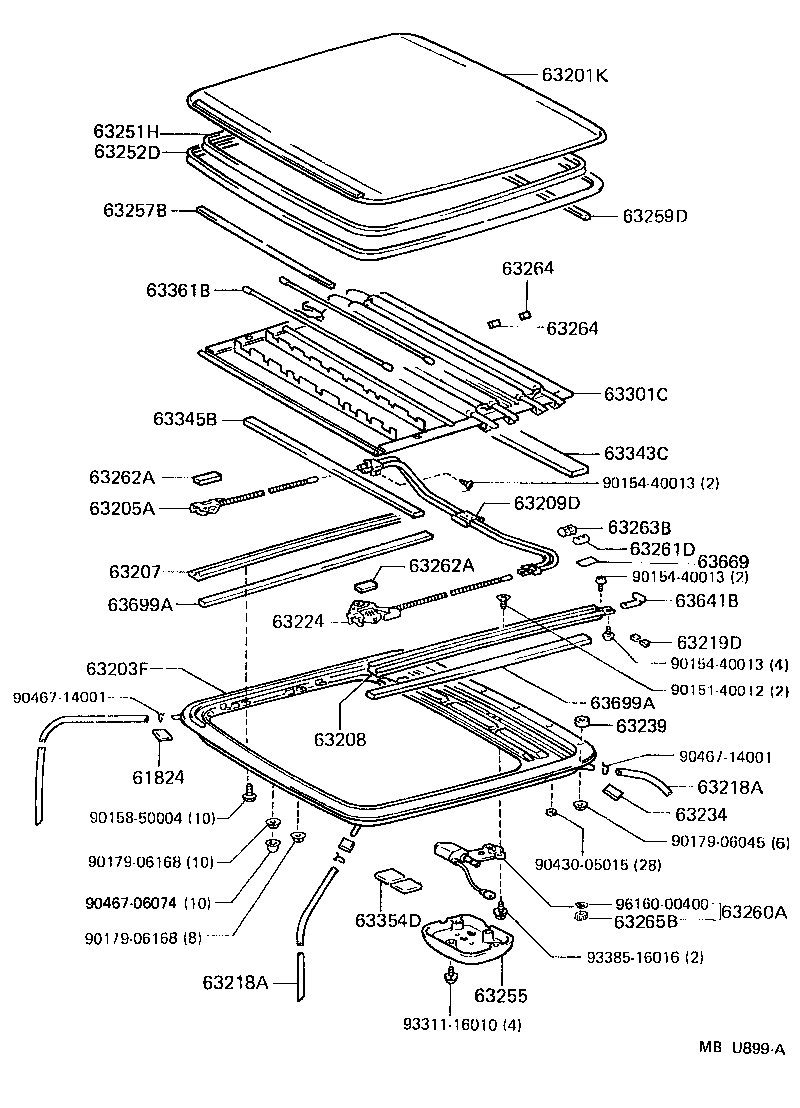

ILLUST NO. 2 OF 4(8912- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-10050 |
EP8#..GL,GLI,S,SI,XL,XLI *SERT,T=4.0,GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-10050 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63203-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63203-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVAS TOP & W/O SPOILER) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63207-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63208-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-10050 |
EP8#..GL,S,SI,XL,XLI |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) L=1470,W(MOON ROOF),FRONT |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVAS TOP & W/O SPOILER),FRONT |
2 | ||
| 63249-10050 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP),REAR |
2 | ||
| 63249-12120 |
EP8#..3D..(GL,S,SI,XL,XLI) L=400,W(MOON ROOF),REAR |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVASTOP),FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) L=1470,W(MOON ROOF),FRONT |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVAS TOP & W/O SPOILER),FRONT |
2 | ||
| 63249-10050 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP),REAR |
2 | ||
| 63249-12120 |
EP8#..3D..(GL,S,SI,XL,XLI) L=400,W(MOON ROOF),REAR |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVASTOP),FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) L=1470,W(MOON ROOF),FRONT |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVAS TOP & W/O SPOILER),FRONT |
2 | ||
| 63249-10050 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP),REAR |
2 | ||
| 63249-12120 |
EP8#..3D..(GL,S,SI,XL,XLI) L=400,W(MOON ROOF),REAR |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVASTOP),FRONT |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-10030 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-10020 |
EP8#..GL,S,SI,XL,XLI |
1 | ||
| 63223-10021 |
EP8#..GL,S,SI,XL,XLI |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63206-10020 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63224-10021 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63224-10020 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-50010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63239-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63251-10050 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-10030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
2 | ||
| 63255-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-10030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
2 | ||
| 63255-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-10031 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVAS TOP & W/O SPOILER) |
1 | ||
| 63260-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63260-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63260-10041 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-10030 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-10020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
EP8#..GL,GLI,S,SI,XL,XLI T=1.0 |
1 | ||
| 63277E - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-32010 |
EP8#..GL,GLI,S,SI,XL,XLI |
2 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-10010 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
2 | ||
| 63699-32020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| Common parts | ||||
| 90154-40011 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50014 | ||||
| 90168-40027 | ||||
| 90168-50045 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90179-06167 | ||||
| 90189-05043 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 96160-00400 | ||||
ILLUST NO. 4 OF 4(8912-9405)
W(CANVASTOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
EP8#..3D..(GL,S,SI,XL,XLI) |
2 | ||
| 63201K - CANVAS SUB-ASSY, SLIDING ROOF | ||||
| 63201-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-10050 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63203-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63203-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVAS TOP & W/O SPOILER) |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63207-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63208-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63209D - CASING SUB-ASSY, SLIDING ROOF CABLE | ||||
| 63209-10040 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) L=1470,W(MOON ROOF),FRONT |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVAS TOP & W/O SPOILER),FRONT |
2 | ||
| 63249-10050 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP),REAR |
2 | ||
| 63249-12120 |
EP8#..3D..(GL,S,SI,XL,XLI) L=400,W(MOON ROOF),REAR |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVASTOP),FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-17030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) L=1470,W(MOON ROOF),FRONT |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVAS TOP & W/O SPOILER),FRONT |
2 | ||
| 63249-10050 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP),REAR |
2 | ||
| 63249-12120 |
EP8#..3D..(GL,S,SI,XL,XLI) L=400,W(MOON ROOF),REAR |
2 | ||
| 63249-89104 |
EP8#..3D..(GL,S,SI,XL,XLI) *H,L=1470,W(CANVASTOP),FRONT |
2 | ||
| 63219D - CUSHION, SLIDING ROOF GUIDE RAIL | ||||
| 63219-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
4 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63206-10020 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63224-10021 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63224-10020 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-50010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63239-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63251-10050 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-10030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-10030 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
2 | ||
| 63255-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63259D - SEAL, SLIDING ROOF, NO.2 | ||||
| 63259-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-10031 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVAS TOP & W/O SPOILER) |
1 | ||
| 63260-10030 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
1 | ||
| 63260-10040 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63260-10041 |
EP8#..3D..(GL,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63261D - SHOE, SLIDING ROOF | ||||
| 63261-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
4 | ||
| 63262A - SEAL, SLIDING ROOF, FRONT NO.1 | ||||
| 63262-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
2 | ||
| 63262A - SEAL, SLIDING ROOF, FRONT NO.1 | ||||
| 63262-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
2 | ||
| 63263B - SHOE, SLIDING ROOF | ||||
| 63263-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
4 | ||
| 63264 - SEAL, SLIDING ROOF, FRONT NO.3 | ||||
| 63264-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
6 | ||
| 63264 - SEAL, SLIDING ROOF, FRONT NO.3 | ||||
| 63264-10020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
6 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
EP8#..GL,GLI,S,SI,XL,XLI |
1 | ||
| 63301C - STRENGTH SUB-ASSY, ROOF | ||||
| 63301-10021B0 |
EP8#..3D..(GL,S,SI,XL,XLI) GRAY,TRIM1#,8# |
1 | ||
| 63301-1002003 |
EP8#..3D..(GL,S,SI,XL,XLI) GRAY,TRIM1#,8# |
1 | ||
| 63301-10021A0 |
EP8#..3D..(GL,GLI,XL,XLI) IVORY,TRIM4# |
1 | ||
| 63343C - PAD, ROOF SILENCER, REAR | ||||
| 63343-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63345B - PAD, ROOF SILENCER, CENTER | ||||
| 63345-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
1 | ||
| 63354D - PAD, ROOF HEADLINING FRONT SIDE | ||||
| 63354-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
4 | ||
| 63361B - SUPPORT, SLIDING ROOF HEADLINING | ||||
| 63361-10080 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
2 | ||
| 63641B - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63641-10010 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) |
2 | ||
| 63669 - CUSHION, ROOF PROTECTOR | ||||
| 63669-32010 |
EP8#..3D..(GL,S,SI,XL,XLI) |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
2 | ||
| 63699-32020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-10010 |
EP8#..3D..(GL,S,SI,XL,XLI) W(CANVASTOP) |
2 | ||
| 63699-32020 |
EP8#..3D..(GL,GLI,S,SI,XL,XLI) W(MOON ROOF) |
1 | ||
| Common parts | ||||
| 90151-40012 | ||||
| 90154-40013 | ||||
| 90158-50004 | ||||
| 90179-06045 | ||||
| 90179-06168 | ||||
| 90430-05015 | ||||
| 90467-06074 | ||||
| 90467-14001 | ||||
| 93311-16010 | ||||
| 93385-16016 | ||||
| 96160-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
