EP80L-AHMNSW (1989)

Toyota Starlet

Production Dec 1989 - Dec 1992
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

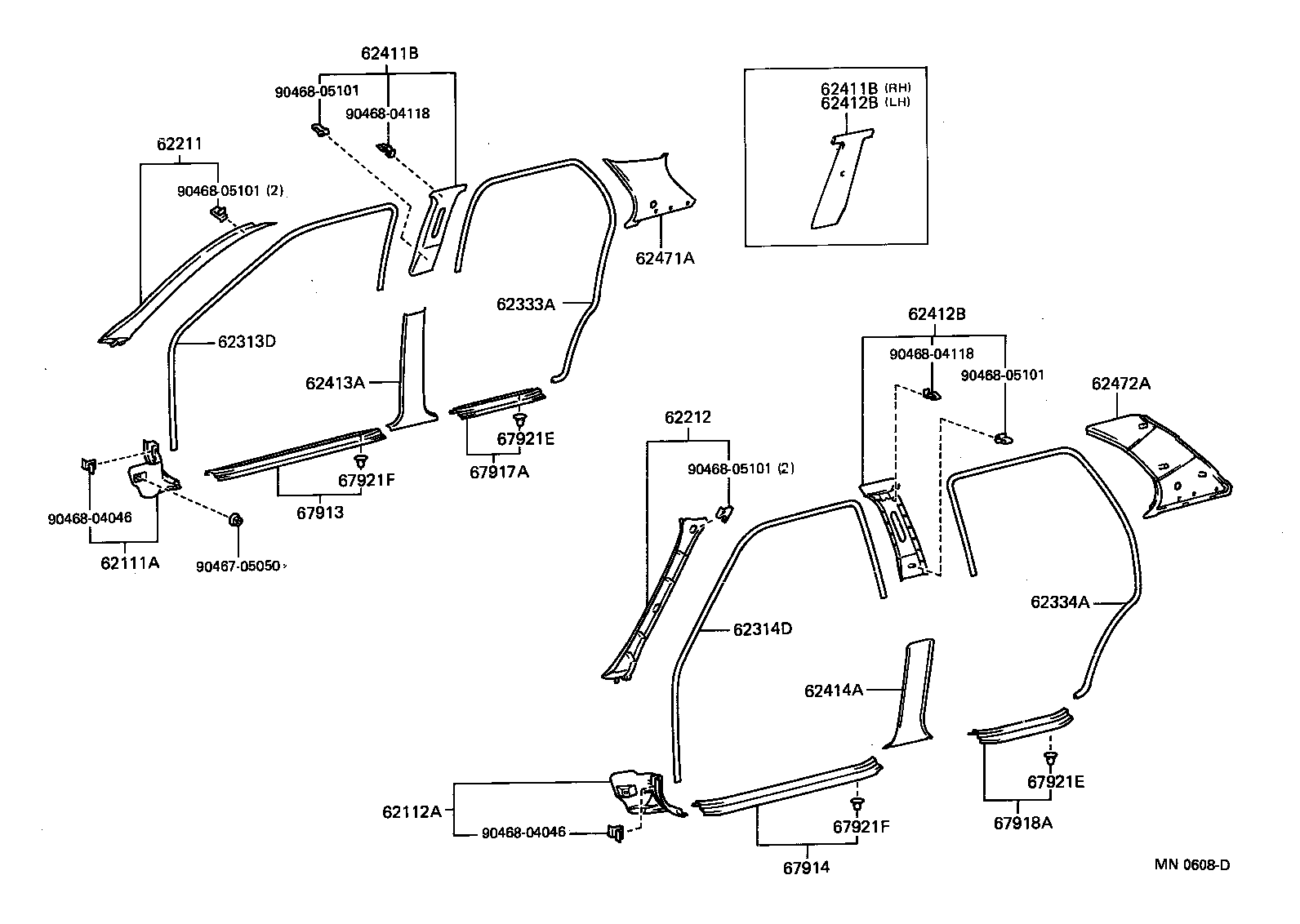

ILLUST NO. 1 OF 2(8912- )5D

Click highlighted areas on diagram

diagram 62111A 62112A 62211 62212 62313D 62314D 62333A 62334A 62411B 62411B 62412B 62412B 62413A 62414A 62471A 62472A 67913 67914 67917A 67918A 67921E 67921E 67921F 67921F 9046705050 9046804046 9046804046 9046804118 9046804118 9046805101 9046805101 9046805101 9046805101
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-10120E0

EP8#,NP80..LHD..(STD,XL,XLI)

OAK,TRIM4#

 1
62101-1012003

EP8#,NP80..LHD

GRAY,TRIM1#

 1
62101-1012004

EP8#,NP80..LHD

BLUE,TRIM8#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-10120E0

EP8#,NP80..LHD..(STD,XL,XLI)

OAK,TRIM4#

 1
62102-1012003

EP8#,NP80..LHD

GRAY,TRIM1#

 1
62102-1012004

EP8#,NP80..LHD

BLUE,TRIM8#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-1007003

EP8#,NP80

GRAY,TRIM1#

 1
62211-1007004

EP8#,NP80

BLUE,TRIM8#

 1
62211-10070E0

EP8#,NP80..GL,GLI,STD,XL,XLI

OAK,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-1007003

EP8#,NP80

GRAY,TRIM1#

 1
62212-10070E0

EP8#,NP80..GL,GLI,STD,XL,XLI

OAK,TRIM4#

 1
62212-1007004

EP8#,NP80

BLUE,TRIM8#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-1010004

EP8#..5D

BLUE,TRIM8#

 1
62313-10100E0

EP8#..5D

OAK,TRIM4#

 1
62313-1010003

EP8#..5D

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-1010003

EP8#..5D

GRAY,TRIM1#

 1
62313-1010004

EP8#..5D

BLUE,TRIM8#

 1
62313-10100E0

EP8#..5D

OAK,TRIM4#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-1003004

EP8#..5D

BLUE,TRIM8#

 1
62333-10030E0

EP8#..5D

OAK,TRIM4#

 1
62333-1003003

EP8#..5D

GRAY,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-1003004

EP8#..5D

BLUE,TRIM8#

 1
62333-1003003

EP8#..5D

GRAY,TRIM1#

 1
62333-10030E0

EP8#..5D

OAK,TRIM4#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-1010003

EP8#..LHD..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#,8#

 1
62411-1011003

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),GRAY,TRIM1#

 1
62411-1011004

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),BLUE,TRIM8#

 1
62411-10110E0

EP8#..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),OAK,TRIM4#

 1
62411-10100A0

EP8#..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),IVORY,TRIM4#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-1010003

EP8#..LHD..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#,8#

 1
62411-1011003

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),GRAY,TRIM1#

 1
62411-1011004

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),BLUE,TRIM8#

 1
62411-10110E0

EP8#..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),OAK,TRIM4#

 1
62411-10100A0

EP8#..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),IVORY,TRIM4#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-1010003

EP8#..LHD..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#,8#

 1
62412-1011004

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),BLUE,TRIM8#

 1
62412-10110E0

EP8#..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),OAK,TRIM4#

 1
62412-10100A0

EP8#..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),IVORY,TRIM4#

 1
62412-1011003

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-1010003

EP8#..LHD..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#,8#

 1
62412-1011004

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),BLUE,TRIM8#

 1
62412-10110E0

EP8#..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),OAK,TRIM4#

 1
62412-10100A0

EP8#..5D..(XL,XLI)

W(FULL FABRIC DOOR TRIM),IVORY,TRIM4#

 1
62412-1011003

EP8#..LHD..5D..(XL,XLI)

W(ADUSTABLE SEAT BELT),GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-1006003

EP8#..5D

GRAY,TRIM1#

 1
62413-10060E0

EP8#..5D

OAK,TRIM4#

 1
62413-1006004

EP8#..5D

BLUE,TRIM8#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-10060E0

EP8#..5D

OAK,TRIM4#

 1
62414-1006003

EP8#..5D

GRAY,TRIM1#

 1
62414-1006004

EP8#..5D

BLUE,TRIM8#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-1015003

EP8#..LHD..5D..(XL,XLI)

GRAY,TRIM1#

 1
62471-1016003

EP8#..LHD..5D..(XL,XLI)

W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

 1
62471-10150E0

EP8#..5D

OAK,TRIM4#

 1
62471-1015004

EP8#..LHD..5D..(XL,XLI)

BLUE,TRIM8#

 1
62471-10160E0

EP8#..5D

W(3 POINT TYPE REAR SEAT BELT),OAK,TRIM4#

 1
62471-1016004

EP8#..LHD..5D..(XL,XLI)

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-1015004

EP8#..LHD..5D..(XL,XLI)

BLUE,TRIM8#

 1
62472-1016003

EP8#..LHD..5D..(XL,XLI)

W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

 1
62472-1015003

EP8#..LHD..5D..(XL,XLI)

GRAY,TRIM1#

 1
62472-1016004

EP8#..LHD..5D..(XL,XLI)

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

 1
62472-10160E0

EP8#..5D

W(3 POINT TYPE REAR SEAT BELT),OAK,TRIM4#

 1
62472-10150E0

EP8#..5D

OAK,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-10060E0

EP8#..5D

OAK,TRIM4#

 1
67913-1006004

EP8#..5D

BLUE,TRIM8#

 1
67913-1006003

EP8#..5D

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-1003004

EP8#..5D

BLUE,TRIM8#

 1
67914-1003003

EP8#..5D

GRAY,TRIM1#

 1
67914-10030E0

EP8#..5D

OAK,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-1004004

EP8#..5D

BLUE,TRIM8#

 1
67917-10040E0

EP8#..5D

OAK,TRIM4#

 1
67917-1004003

EP8#..5D

GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-10020E0

EP8#..5D

OAK,TRIM4#

 1
67918-1002004

EP8#..5D

BLUE,TRIM8#

 1
67918-1002003

EP8#..5D

GRAY,TRIM1#

 1
67921E - RETAINER, REAR DOOR SCUFF PLATE
67921-95501

EP8#..5D

 4
67921E - RETAINER, REAR DOOR SCUFF PLATE
67921-95501

EP8#..5D

 4
67921F - RETAINER, FRONT DOOR SCUFF PLATE
67921-95501

EP8#..5D

 6
67921F - RETAINER, FRONT DOOR SCUFF PLATE
67921-95501

EP8#..5D

 6
Common parts
90467-05050
90468-04046
90468-04118
90468-05101

ILLUST NO. 2 OF 2(8912- )

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price
