EP80L-AHMNSW (1989)

Toyota Starlet

Production Dec 1989 - Dec 1992
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1E,2E# ; (9212- )2EE

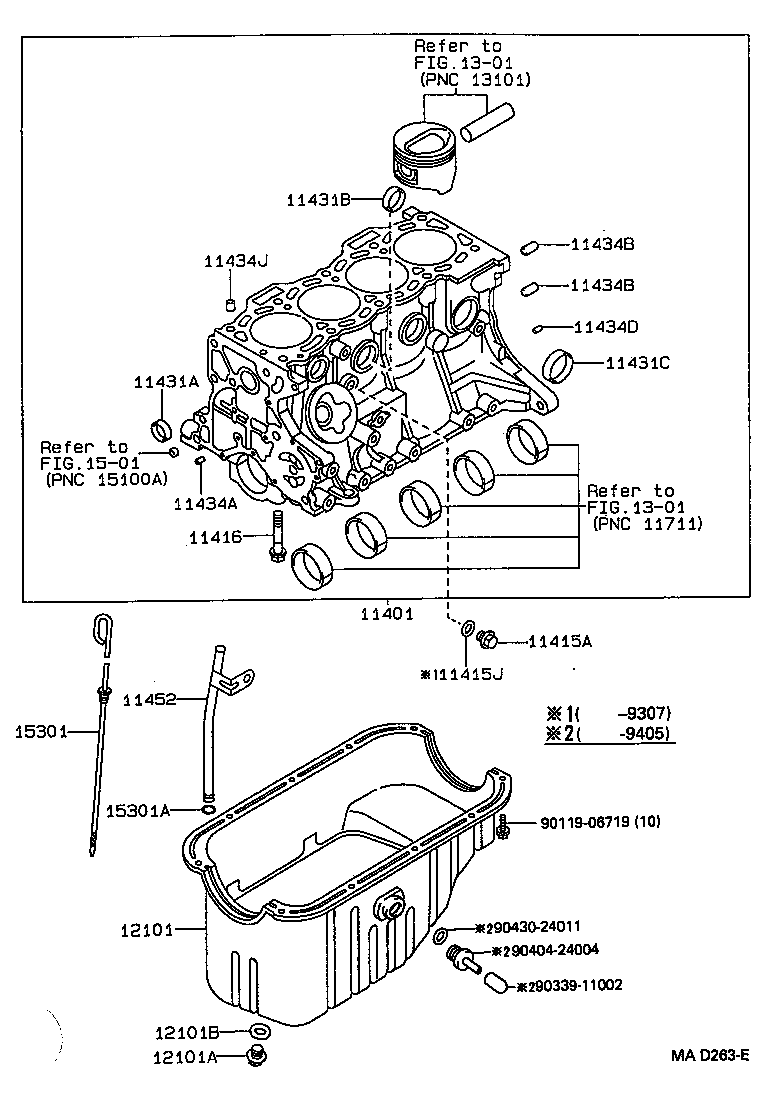

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906719 9033911002 9040424004 9043024011
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19397

1E..EP80

 1
11401-19398

1E..EP80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

1E,2E..EP8#;2EE..EP81..5F

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

1E,2E..EP8#;2EE..EP81..3FC,5F

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

1E..EP80

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

1E,2E..EP8#;2EE..EP81..3FC,5F

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

1E,2E..EP8#;2EE..EP81..3FC,5F

L=11,OD=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

1E,2E..EP8#;2EE..EP81..3FC,5F

L=17,OD=15

 1
90250-10017

1E,2E..EP8#;2EE..EP81..3FC,5F

L=20,OD=10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

1E,2E..EP8#;2EE..EP81..3FC,5F

L=17,OD=15

 1
90250-10017

1E,2E..EP8#;2EE..EP81..3FC,5F

L=20,OD=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1E,2E..EP8#;2EE..EP81..3FC,5F

L=11,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

1E,2E..EP8#;2EE..EP81..3FC,5F

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-11050

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
12101 - PAN SUB-ASSY, OIL
12101-10010

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1E,2E..EP8#;2EE..EP81..5F

 1
90341-12026

1E,2E#..EP8#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

1E,2E..EP8#;2EE..EP81..5F

 1
90430-12027

1E,2E#..EP8#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11030

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
Common parts
90119-06719
90339-11002
90404-24004
90430-24011
Linked diagrams
1301
1501
