EP80L-AGMNSW (1989)
Toyota Starlet
Production
Dec 1989
-
Dec 1992
Engine
1E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

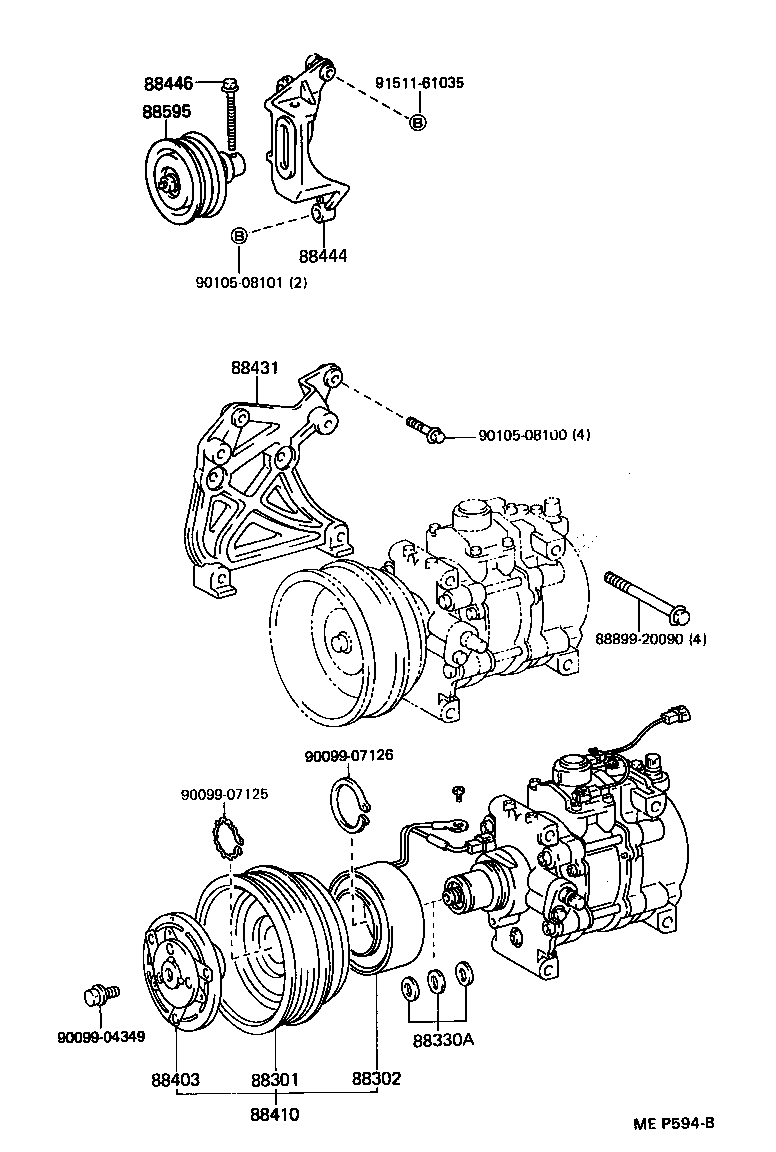

ILLUST NO. 1 OF 2(8912-9601)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-10150 |
EP8#..LHD..CBR |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60030 |
EP8#..LHD..CBR |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
EP8#..LHD..CBR |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
EP8#..LHD..CBR |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-10220 |
EP8#..LHD..CBR |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-16060 |
EP8#..LHD..CBR |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-10021 |
EP80..LHD |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
EP8#..LHD..CBR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07125 | ||||
| 90099-07126 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61035 | ||||

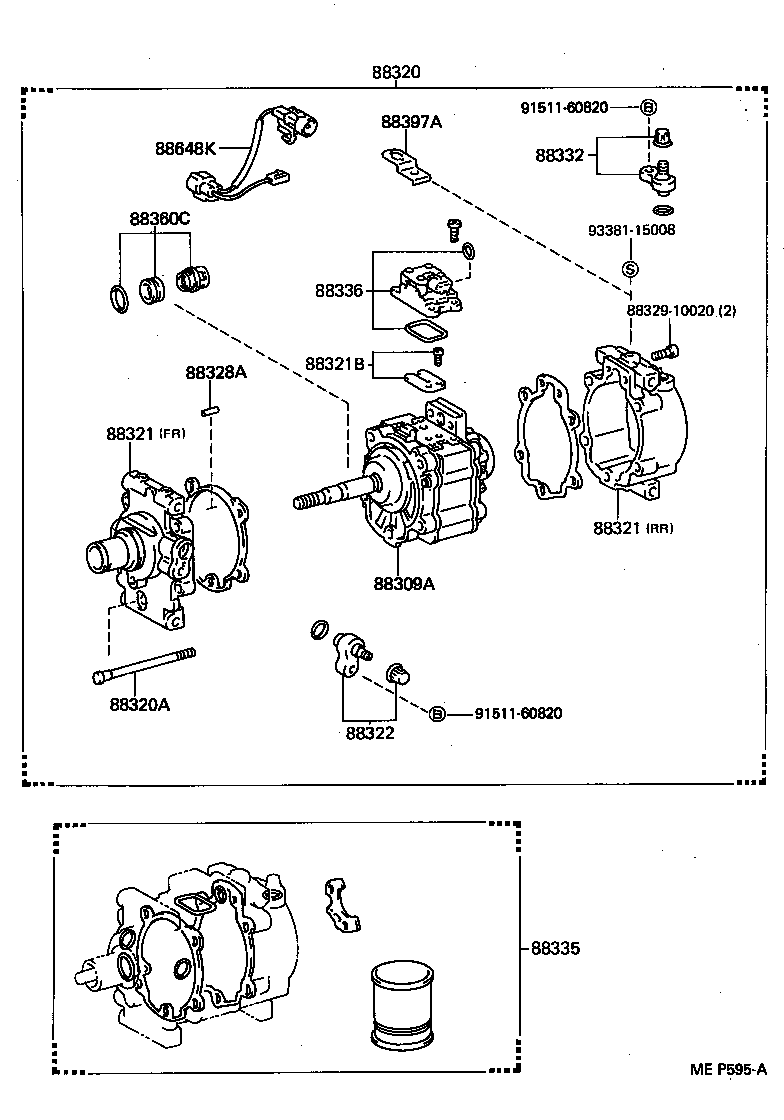

ILLUST NO. 2 OF 2(8912-9601)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-10050 |
EP8#..LHD..CBR |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10200 |
EP8#..LHD..CBR |
1 | ||
| 88320-10280 |
EP8#..LHD |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP8#..LHD..CBR FRONT |
1 | ||
| 88322-10020 |
EP8#..LHD..CBR REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP8#..LHD..CBR FRONT |
1 | ||
| 88322-10020 |
EP8#..LHD..CBR REAR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-10010 |
EP8#..LHD..CBR |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88376-16020 |
EP8#..LHD..CBR |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 88328-10010 |
EP8#..LHD..CBR |
2 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88376-16030 |
EP8#..LHD..CBR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-10020 |
EP8#..LHD..CBR |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-10020 |
EP8#..LHD..CBR |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-10020 |
EP8#..LHD..CBR |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-10020 |
EP8#..LHD..CBR |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-10240 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 88329-10020 | ||||
| 91511-60820 | ||||
| 93381-15008 | ||||
