EP80L-AGMNSW (1989)
Toyota Starlet

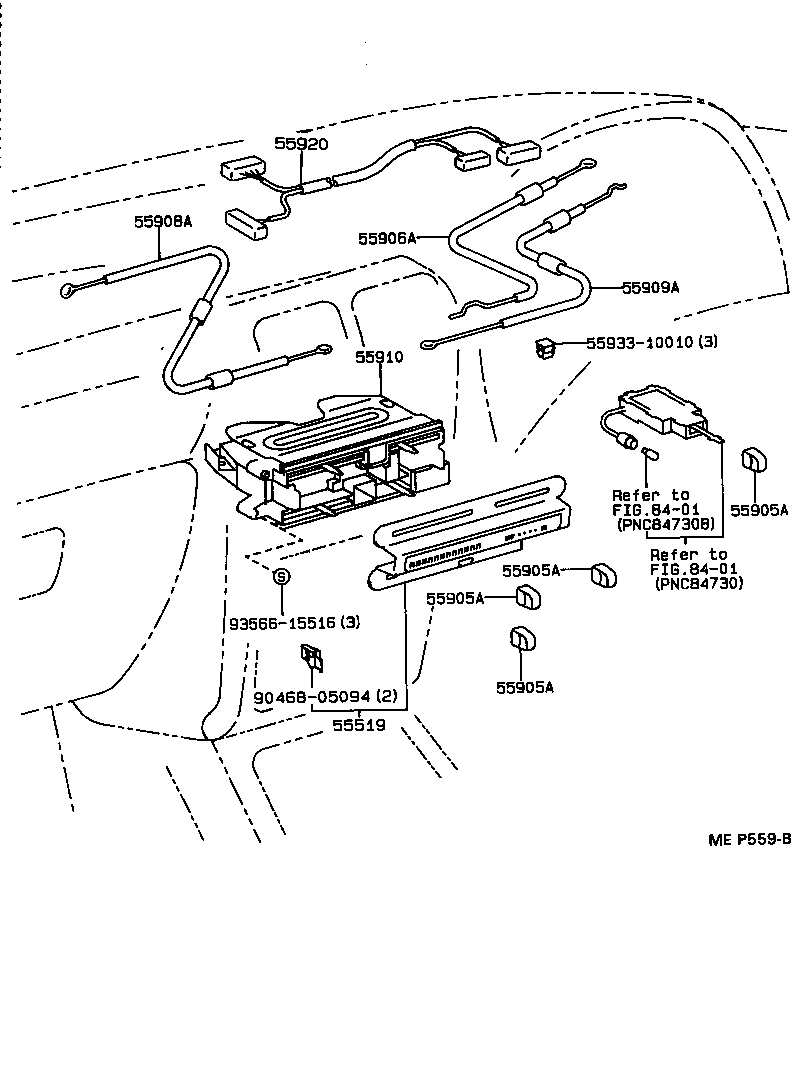

ILLUST NO. 1 OF 2(8912-9601)
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-10180 |
EP8#..LHD..CBR W(HEAVY HEATER) |
1 | ||
| 55519-10170 |
EP8#,NP80..LHD |
1 | ||
| 55519-10210 |
EP8#..LHD..CBR W(AIR CONDITIONER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-10170 |
EP8#,NP80 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-10100 |
EP8#,NP80..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-10090 |
EP8#,NP80..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10340 |
EP8#..LHD..CBR W(HEAVY HEATER) |
1 | ||
| 55910-10420 |
EP8#..LHD..CBR W(BOOST VENTILATOR & DEALER OPTION) |
1 | ||
| 55910-10420 |
EP8#..LHD..CBR W(HEAVY HEATER & DEALER OPTION---BOOST VENTILATOR) |
1 | ||
| 55910-10330 |
EP8#,NP80..LHD |
1 | ||
| 55920 - HARNESS ASSY, HEATER CONTROL SUB WIRE | ||||
| 55920-10040 |
EP8#..LHD..CBR W(HEAVY HEATER & BOOST VENTILATOR) |
1 | ||
| 55920-10040 |
EP8#..LHD..CBR W(BOOST VENTILATOR & DEALER OPTION) |
1 | ||
| 55920-10030 |
EP8#..LHD..CBR W(AIR CONDITIONER) |
1 | ||
| 55920-10040 |
EP8#,NP80..LHD |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 90468-05094 | ||||
| 93566-15516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8912-9601)
BOOST VENTILATOR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-10180 |
EP8#..LHD..CBR W(HEAVY HEATER) |
1 | ||
| 55519-10170 |
EP8#,NP80..LHD |
1 | ||
| 55519-10210 |
EP8#..LHD..CBR W(AIR CONDITIONER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR) |
3 | ||
| 55905-10130 |
EP8#..LHD..CBR *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#..LHD..CBR W(BOOST VENTILATOR) |
3 | ||
| 55905-12080 |
EP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL *IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC) |
4 | ||
| 55905-89115 |
EP8#,NP80 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-10170 |
EP8#,NP80 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-10100 |
EP8#,NP80..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-10340 |
EP8#..LHD..CBR W(HEAVY HEATER) |
1 | ||
| 55910-10420 |
EP8#..LHD..CBR W(BOOST VENTILATOR & DEALER OPTION) |
1 | ||
| 55910-10420 |
EP8#..LHD..CBR W(HEAVY HEATER & DEALER OPTION---BOOST VENTILATOR) |
1 | ||
| 55910-10330 |
EP8#,NP80..LHD |
1 | ||
| 55920 - HARNESS ASSY, HEATER CONTROL SUB WIRE | ||||
| 55920-10040 |
EP8#..LHD..CBR W(HEAVY HEATER & BOOST VENTILATOR) |
1 | ||
| 55920-10040 |
EP8#..LHD..CBR W(BOOST VENTILATOR & DEALER OPTION) |
1 | ||
| 55920-10030 |
EP8#..LHD..CBR W(AIR CONDITIONER) |
1 | ||
| 55920-10040 |
EP8#,NP80..LHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-10070 |
EP8#..LHD..CBR |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 90468-05094 | ||||
| 93556-15516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8912-9601)
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-10080 |
EP8#,NP80..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-10080 |
EP8#,NP80..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-10080 |
EP8#,NP80..LHD |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-10130 |
EP8#,NP80..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-10130 |
EP8#,NP80..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-10100 |
EP81..3FC..EFI;EP8#,NP80..LHD..MTM EUROPE COLD SPEC |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-10090 |
EP81..3FC..EFI;EP8#,NP80..LHD..MTM EUROPE COLD SPEC |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-10010 |
EP81..3FC..EFI;EP8#,NP80..LHD..MTM EUROPE COLD SPEC |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-10020 |
EP8#,NP80..LHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60437 | ||||
| 90167-45011 | ||||
| 90167-50002 | ||||
