EP80L-AGMNSW (1989)

Toyota Starlet

Production Dec 1989 - Dec 1992
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9212)1E,2E

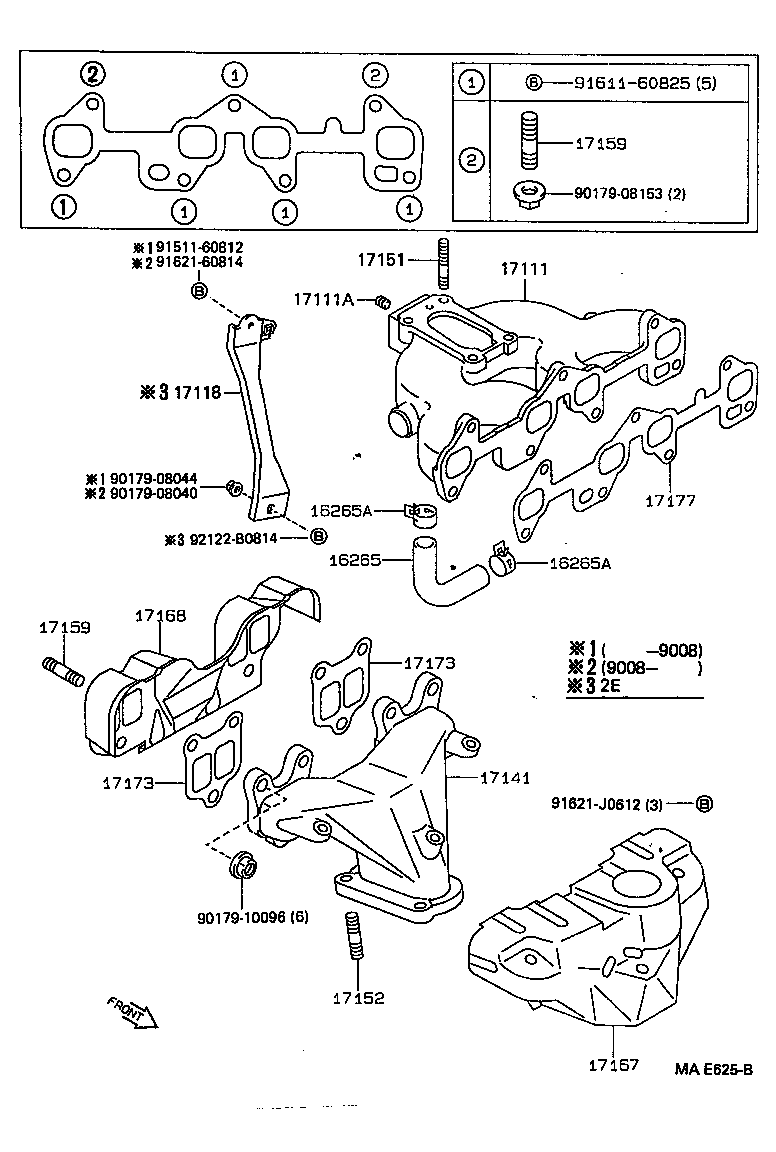

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17111 17111A 17118 17141 17151 17152 17159 17159 17167 17168 17173 17173 17177 9017908040 9017908044 9017908153 9017910096 9151160812 9161160825 9162160814 91621J0612 92122B0814
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010

1E,2E..EP8#

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1E,2E..EP8#

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1E,2E..EP8#

 2
17111 - MANIFOLD, INTAKE
17101-10060

1E..EP80

 1
17111A - PLUG, NO.1
90344-53015

1E..EP80

 1
17141 - MANIFOLD, EXHAUST
17141-10010

1E..EP80;2EE..EP81..3FC,5F

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40828

1E,2E..EP8#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

1E..EP80;2EE..EP81..3FC,5F

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1E,2E..EP8#;2EE..EP81..3FC,5F

EXHAUST MANIFOLD

 6
92132-60825

1E,2E..EP8#;2EE..EP81..3FC,5F

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1E,2E..EP8#;2EE..EP81..3FC,5F

EXHAUST MANIFOLD

 6
92132-60825

1E,2E..EP8#;2EE..EP81..3FC,5F

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-10010

1E..EP80

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10011

1E,2E..EP8#;2EE..EP81..3FC,5F

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10021

1E,2E..EP8#;2EE..EP81..3FC,5F

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10021

1E,2E..EP8#;2EE..EP81..3FC,5F

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10011

1E,2E..EP8#;2EE..EP81..5F

 1
Common parts
90179-08040
90179-08044
90179-08153
90179-10096
91511-60812
91611-60825
91621-60814
91621-J0612
92122-B0814
